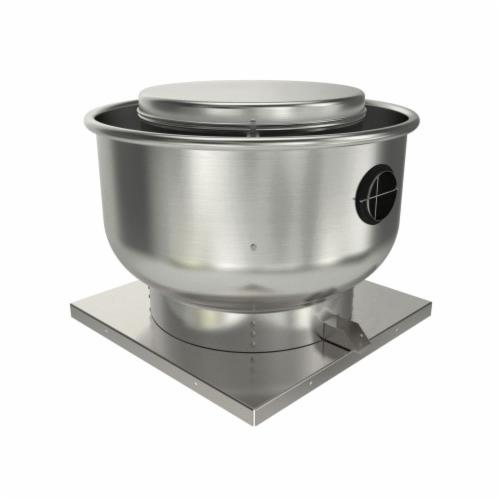

Fantech® 5DDU085AY Direct-Drive Upblast Roof Ventilator, 420 cfm, 115 VAC, 1/25 hp, Domestic

FAN5DDU085AY MFG #: 5DDU085AY
Fantech® 5DDU085AY Direct-Drive Upblast Roof Ventilator, 420 cfm, 115 VAC, 1/25 hp, Domestic
  • Domestic / Import: Domestic
  • Flow Rate: 420 cfm
  • Motor HP: 1/25
  • Voltage Rating: 115 VAC
  • Amperage Rating: 1.5
  • Base Size: 19
  • Dimensions: 20-1/2 in W x 12-1/8 in H
  • Frequency Rating: 60
  • Manufacturer: Fantech
  • Manufacturer #: 5DDU085AY
  • Material: Aluminum
  • Series: 5DDU
  • Speed: 1642
  • Type: Direct-Drive
Direct-drive upblast ventilators are designed for continuous operation to exhaust foul air, smoke, fumes, odors and grease-laden vapors from range hoods and commercial cooking appliances. Ventilators are designed for installation in industrial, institutional and commercial kitchen applications. All models are equipped with a backward inclined aluminum fan wheel and a speed controllable motor.

Fantech® Upblast Roof Ventilator, Direct-Drive, Series: 5DDU, 420 cfm, 115 VAC, 1.5 A, 1/25 hp, 60 Hz, 19 in Base, 1642 rpm, Aluminum, 20-1/2 in W x 12-1/8 in H, Domestic
  • Features
  • Backward inclined aluminum fan wheel
  • Externally cooled motor compartment
  • Fully welded windband
  • 1-phase
  • Insulation class: B
  • 83.5 W input power (P1)
  • Compatible motors and drive-packs (5ACC 01MS motor disconnect switch, 5ACC03SC speed control, 5ACC12RD roof mount damper, 5ACC17FS fixed non-vented curb, 5ACC17FT fixed non-vented curb)
  • Maximum temperature of transported air: 300 deg F
