- Omniguard™ Total Corrosion Protection technology combines advanced materials with a proven tube and fin design to deliver a coil with life-long performance. Improved protection against VOCs (aerosols, paint emanations and more) means your evaporator coil will last longer, making coils with Omniguard™ The Professional's Choice in coil technology.

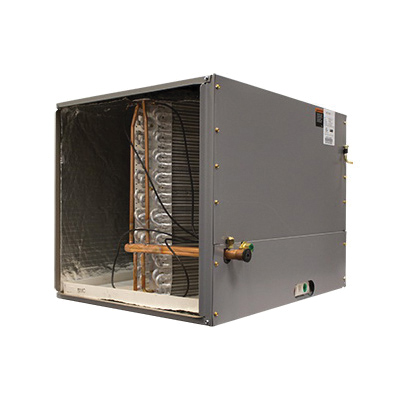

ALLIED™ Omniguard™ Evaporator Coil, Series: EAH1P-50, 2 ton Nominal Capacity, 400 to 1400 cfm, Horizontal, R-22/R-410A, Piston Expansion Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Aluminum Tube, Cased, Platinum Gray, 21-1/2 in L x 17-1/2 in H x 26-1/2 in D
- Omniguard™ total corrosion protection: Our enhanced evaporator coil helps protect against leaks and corrosion for long- term performance, A fully-insulated cabinet and pre-bent duct flanges with rolled edges allow for a tight fit to existing ductwork, preventing heating and cooling losses
- Microban® protection - drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce
- Matched system: Our evaporator coils are specially designed and sized to match Armstrong Air® heating and cooling products, removable cabinets and a single drain pan offer quick access and easy clean up for lifelong performance efficiencies, plus, when you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
- MHT™ technology - Armstrong Air® proprietary heat transfer system, the coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air, they combine for maximum heat transfer and efficiency
- Fully insulated cabinet - wall-to-wall insulation ensures less than 2% air leakage increasing efficiency and energy savings
- Dedicated horizontal
- Insulated galvanized steel case with durable embossed finish
- Removable panels provide access to coil
- Refrigerant lines extend outside of the cabinet for easy connection
- Enclosure TypeCasedFlow Rate400 to 1400 cfmNominal Capacity2 tonRefrigerant TypeR-22/R-410ASeriesEAH1P-50Air Flow TypeHorizontalColorPlatinum GrayDimensions21-1/2 in L x 17-1/2 in H x 26-1/2 in DLiquid Line Size3/8 inManufacturerAllied Air EnterprisesManufacturer #1.911507Metering DevicePiston ExpansionSuction Line Size3/4 inTubing MaterialAluminum
