Advanced Distributor Products®

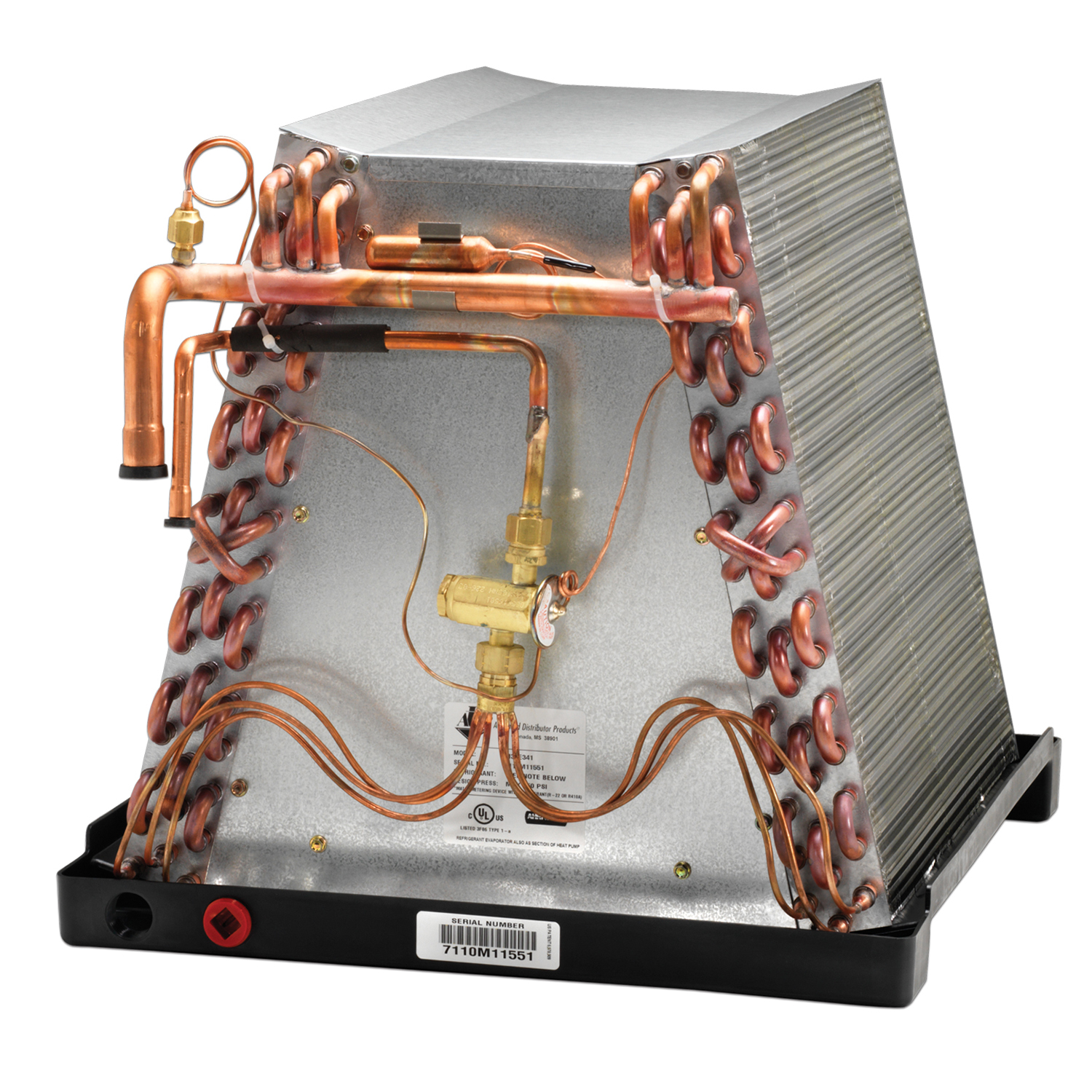

71311711 M Series Uncased Manufactured Housing Evaporator Coil

ADPM30E231 MFG #: 71311711
  • Domestic / Import: Domestic
  • Enclosure Type: Uncased
  • Nominal Capacity: 2.5 ton
  • Refrigerant Type: R-410A
  • SEER Rating: 13
  • Series: M Series
  • Air Flow Type: Vertical Upflow/Downflow
  • Dimensions: 18 in W x 19-1/2 in D
  • Liquid Line Size: 3/8 in
  • Manufacturer: Advanced Distributor Products
  • Manufacturer #: 71311711
  • Metering Device: Piston
  • Suction Line Size: 7/8 in
  • Tubing Material: Rifled Copper
M Series manufactured housing evaporator coils match perfectly with your system, providing an upgrade over standard manufactured housing coils. M Series coils feature enhanced drain pans with blow-off protection and a sloped surface to reduce standing water.

Advanced Distributor Products® Manufactured Housing Evaporator Coil, Uncased, Series: M Series, 30 MBtu/hr Nominal Capacity, 13 SEER, Vertical Upflow/Downflow Air Flow Type, R-410A, Piston Metering Device, 3/8 in Liquid Line, 7/8 in Suction Line, Rifled Copper Tube, 18 in W x 19-1/2 in D, Domestic
  • Features
  • Includes
  • Filter friendly top plate
  • Contoured drain pan
  • Sized out down-turned headers
  • TXV with all threaded connections
  • Coils charged with dry air
  • High performance lanced-fin design
  • Coils pressure tested twice
  • Piston will always be sized to match the nominal Btu rating of the coil
  • Aluminum slab
  • Installed copper piston
Die-Cut Foam Sheet, Drain Elbow, Drain Hose and Clamp
