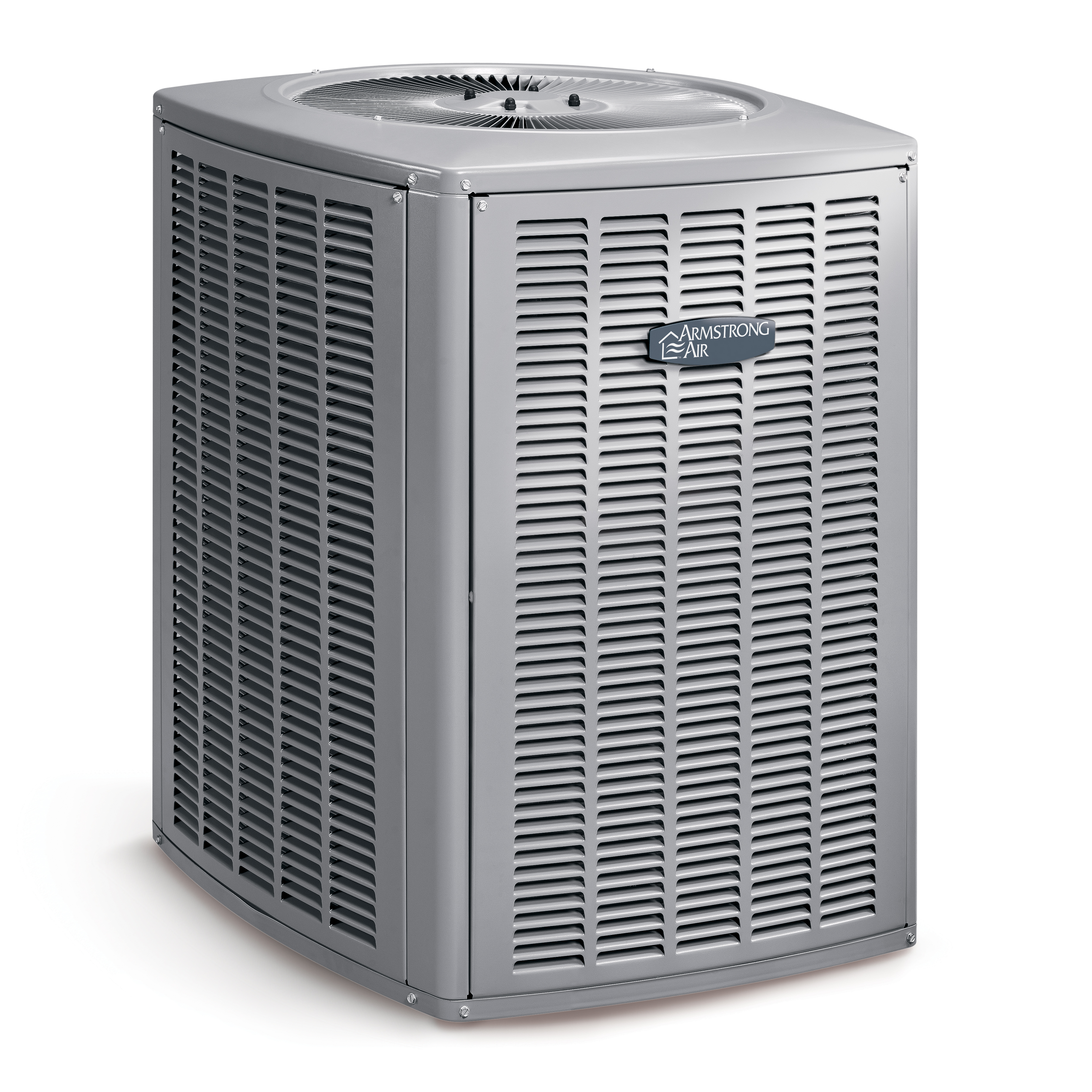

1.944325 4SCU13LB-1 Louvered Basic Single Stage Split System Air Conditioner Condensing Unit
ARA4SCU13LB160P
MFG #: 1.334084
- Cooling Capacity: 60,000 Btu/hr
- EER Rating: 11
- Power Source: 29.4 A 60 Hz 1 ph
- SEER Rating: 14
- Dimensions: 29-3/4 in H x 29-3/8 in W x 31-1/4 in D
- Discharge Line Size: 3/8
- Flow Rate: 1800 cfm
- Fuse Size: 50
- Indoor TXV: H4TXV02
- Manufacturer: Allied Air Enterprises
- Manufacturer #: 1.334084
- Motor HP: 1/4 HP
- Motor RPM: 830
- Outdoor Unit Connection: 7/8
- Refrigerant Type: R-410A
- Series: 4SCU13LB-1
- Sound Level: 80
- Suction Line Size: 7/8
- Temperature Rating: 125 degF
- Type: Louvered Basic Single Stage
- Voltage Rating: 208 / 230 V
- Weight: 211 lbs
Armstrong Air® Split System Air Conditioner Condensing Unit, Louvered Basic Single Stage, Series: 4SCU13LB-1, 60000 Btu/hr Cooling, 11 EER, Up to 14 SEER, 208 to 230 VAC 29.4 A 60 Hz 1 ph, 50 A Fuse, 1800 cfm, R-410A, 125 deg F, 80 dBA, 7/8 in Suction Line, 3/8 in Discharge Line, Fan Motor, 1/4 HP Motor, 830 rpm Motor RPM, Steel, 29-3/4 in H x 29-3/8 in W x 31-1/4 in D
- 4SCU13LB_Spec_Guide.pdf(Specification Sheet)
- 4SCU13LB-4SCU13LE_Service_Manual.pdf(Service Manual)
- 4SCU13LB-4SCU13LE-4SCU14LB-4SCU14LE-4SCU16LE_Installation_Guide.pdf(Instruction/Installation Manual)
- 4SCU13LE-4SCU13LB_Charge_Label.pdf(Charge Label)
- 4SCU13LE-4SCU13LB-4SCU14LE-4SCU14LB-4SCU16LE_Wiring_Diagram.pdf(Wiring Diagram)
- ArmstrongAir_4SCU13LE-4SCU13LB-4SCU16LE-4SCU14LB-4SCU16LS-4SCU20LX_Customer_Brochure.pdf(Brochure)
- Features
- Enhanced aluminum fins and copper tubing for high efficiency and capacity
- Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
- High-efficiency scroll compressor
- Grommet-mounted compressor for quiet operation
- Protected against high temperature motor overload conditions
- Full metal louvered panel remove with just two (2) screws per panel for easy coil cleaning and service
- Controls located in corner for easy installation and service
- Rounded corners for safety and attractive, clean appearance
- Baked polyester paint finish over galvanized steel for maximum durability
- External gauge ports for easy service
- Stamped, one piece top
- Filter drier shipped loose for installation flexibility
- Service valves positioned for quick installation and easy service
- Indoor coil orifice shipped with outdoor unit for quick installation and capacity
- High pressure switch factory installed
- Outdoor unit only
- Up to 14 SEER
- MHT™ Technology
