- For applications requiring higher flow and head pressures, Bell & Gossett provides an entire range of booster pumps. The designs of these pumps are based on 3-part configuration which offers complete field repairability and compact construction. All Bell & Gossett boosters are equipped with the incomparable Bell & Gossett manufactured motor for quiet and efficient operation.

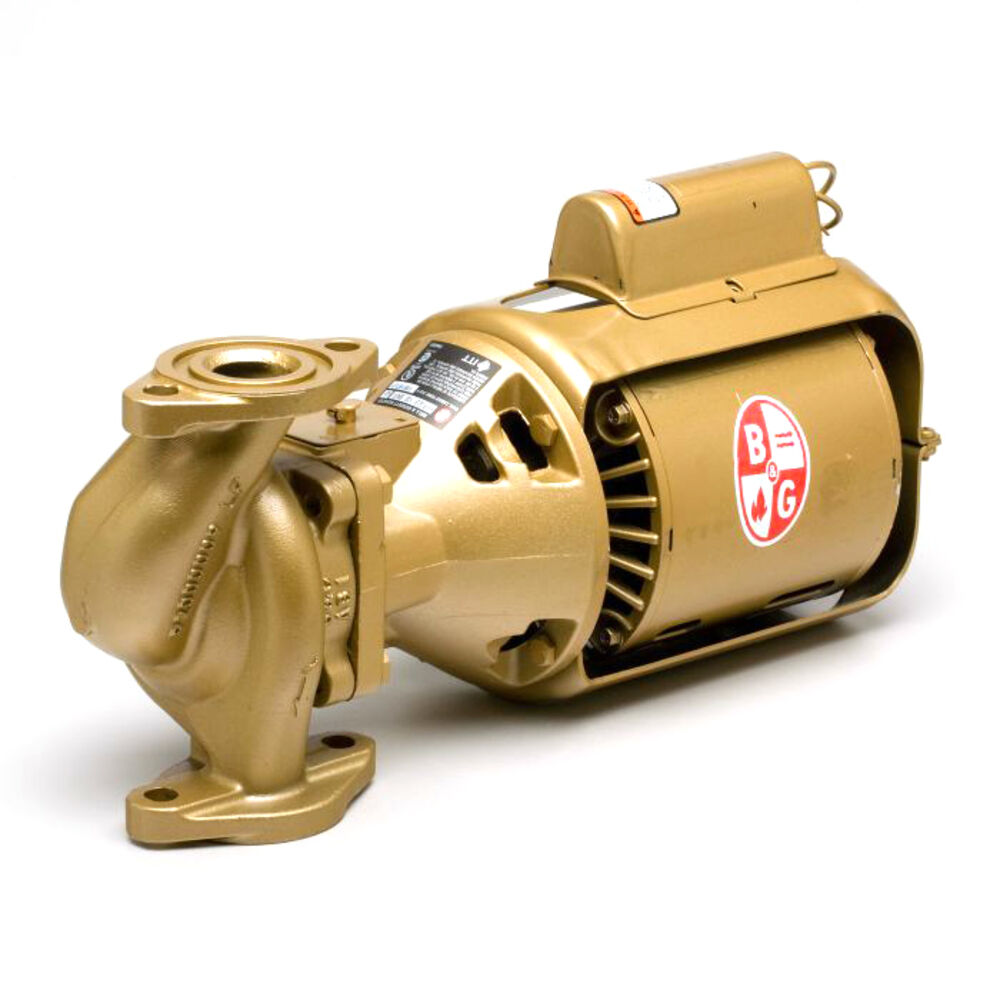

Bell & Gossett Booster Pump, 3-Piece, Series: 100, 1/12 hp, 115 VAC, 1.75 A, 60 Hz, 1 ph, 125 psi Maximum, 1725 rpm Motor, Centrifugal Impeller, 225 deg F, Sleeve Bearing, 14-7/8 in L x 6-3/8 in H
- Oil lubricated circulator
- Bronze body
- 115V With built-in overload protection
- Sleeve bearing, oil lubricated with replaceable resilient motor mounts
- Noise dampening coupler
- Bell & Gossetts own flexible spring design adds to quiet operation, do not accept a substitute
- Long bronze sleeve bearings maintain exact shaft alignment
- Provides for constant circulation of oil over bearing surfaces
- Precision ground pump shaft is oversized to provide large bearing surfaces
- Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life
- The Bell & Gossett mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems
- Centrifugal impeller prevents accumulation of air at seal faces to assure long life
- Close impeller/body tolerances minimize water slippage and maximize efficiency
- Potable water is supplied
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Model 100 AB
- MaterialBronzeVoltage Rating115 VBearing TypeSleeveDimensions14-7/8 in L x 6-3/8 in HFrequency Rating60 HzImpeller TypeCentrifugalManufacturerXylemManufacturer #106192LFMaximum Pressure125 psiMotor HP1/12 HPMotor Speed1725 rpmPhase1Series100Temperature Rating225 deg FType3-Piece
