- This valve is useful in pharmaceutical, medical gas, pneumatic, and liquid applications where valves should not be disassembled prior to soldering or brazing.

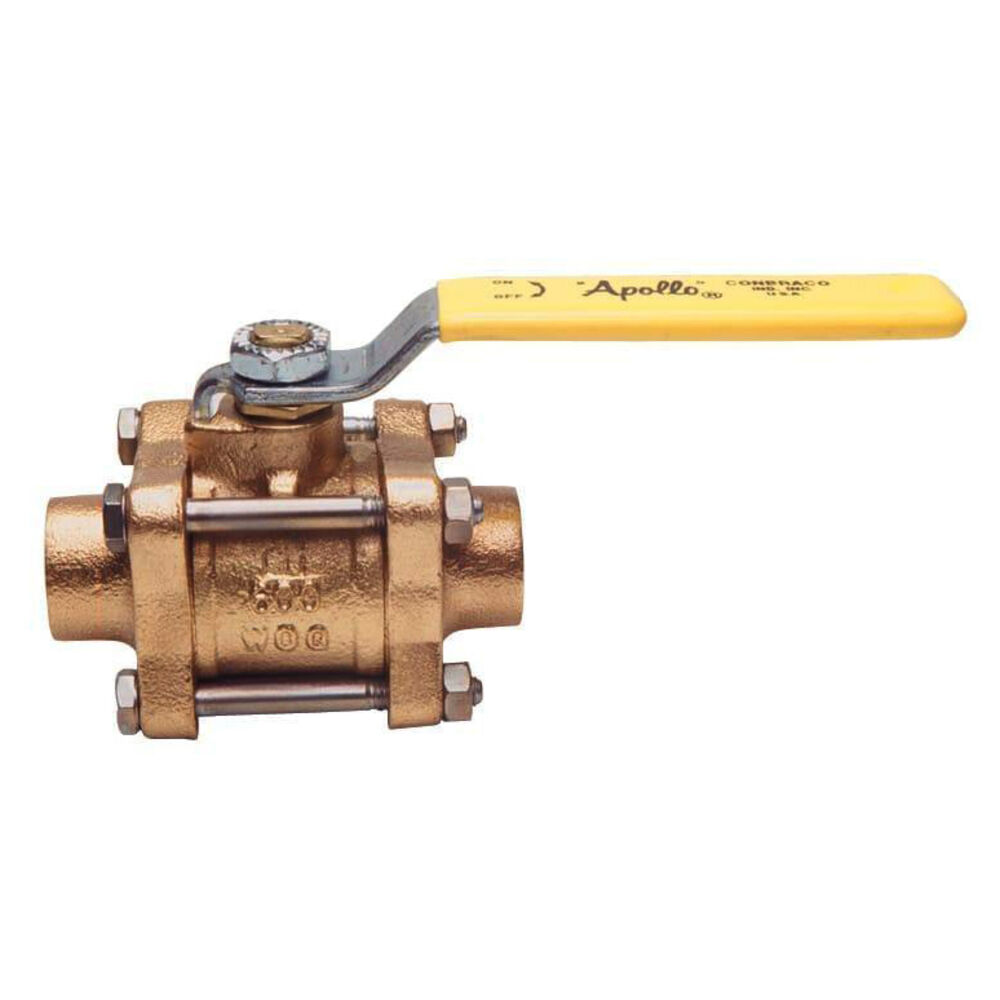

Apollo™, 82208K1, Ball Valve, 3-Piece, Series: 82-200, 2 in Nominal, Solder End Style, 600 psi CWP Pressure, 350 deg F, Full Port, Media: Oxygen Gas, Lever Operated Actuator, 15.23 in Inlet to Outlet Length, 3.7 in Top to Inlet Center, Bronze Body, Brass Stem/RPTFE Seat Trim, MPTFE Softgoods, Domestic
- In-line repairable
- Blow-out proof stem
- Adjustable packing gland vacuum service to 29 in Hg
- Designed for soft solder or brazed installation without disassembly
- 6 in type K copper tubing brazed into both end cups
- Optional gage port tapping
- Oxygen service option
- 150 psig saturated steam
- Male brazed extension
- Body MaterialBronzeDomestic / ImportDomesticEnd StylesolderNominal Size2 inPort TypeFullSoftgoods MaterialMPTFEBall MaterialBRASSHandle StyleLeverInlet to Outlet Length15.23 inManufacturerAalberts Integrated Piping SystemsManufacturer #82208K1MediaOxygen GasPressure Rating600 psi CWPSeries82-200Temperature Rating350 deg FTop to Inlet Center3.7 inTrim MaterialBrass Stem / RPTFE SeatType3-Piece
