- The Apollo™ 82-200 and 82A240 series is an in-line serviceable valve designed for soft soldering or brazed installations. SAE grade body bolts and RPTFE seals are standard.

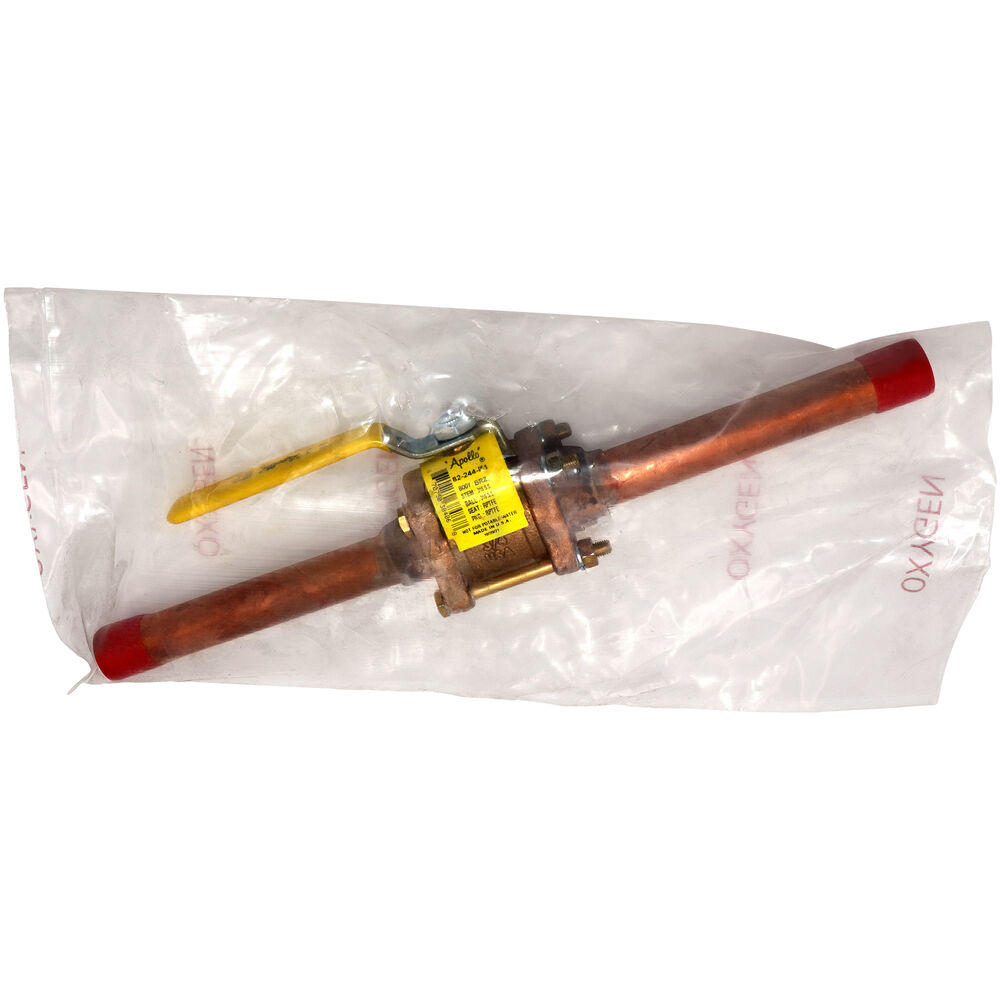

Apollo™ Ball Valve, 3-Piece, Series: 82-200, 3/4 in Nominal, Solder, 600 psi CWP, 500 deg F, Full Port, Lever Actuator, 316 Stainless Steel Ball, 3.43 in Inlet to Outlet Length, 2.18 in Top to Inlet Center, Bronze Body, 316 Stainless Steel Stem and RPTFE Seat Trim, RPTFE Softgoods
- Dezincification resistant bronze body
- Blow-out proof stem
- Full port ball configuration in all size
- Vacuum service to 29 in Hg
- In-line repairable
- 150 psig saturated steam
- RPTFE seal and stem packing
- Adjustable Packing Gland
- Body MaterialBronzeEnd StylesolderNominal Size3/4 inPort TypeFullSoftgoods MaterialRPTFEActuator TypeLeverBall Material316 Stainless SteelInlet to Outlet Length3.43ManufacturerApollo ConbracoManufacturer #82-244-K1Series82-200Temperature Rating500 deg FTop to Inlet Center2.18Trim Material316 Stainless Steel Stem and RPTFE SeatType3-Piece
