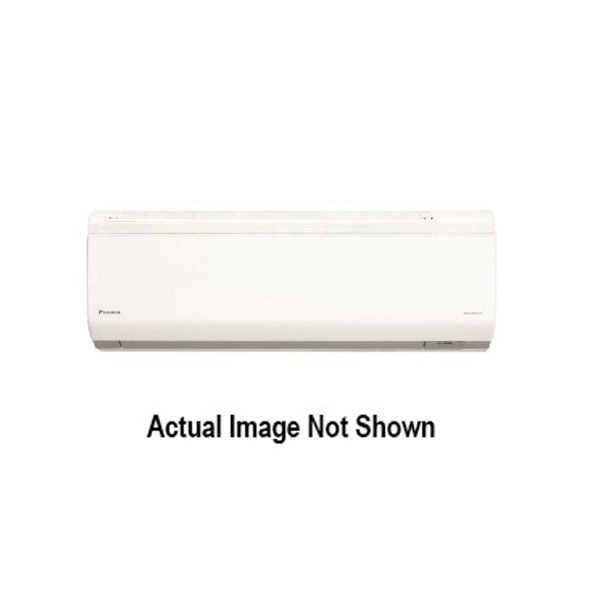

FTXG12HVJU Ductless Single-Zone Indoor Heat Pump

DAIFTXG12HVJU MFG #: FTXG12HVJU
  • Cooling Capacity: 12,000 Btu/hr
  • Domestic / Import: Import
  • Nominal Capacity: 1 ton
  • Power Source: 60 Hz
  • SEER Rating: 24.2 SEER
  • Color: Ivory White
  • Compressor Type: Hermetically Sealed Swing
  • COP Rating: 4.04
  • Dimensions: 35-1/16 in W x 8-1/4 in D x 12 in H
  • Discharge Line Size: 1/4 in
  • EER Rating: 14
  • Flow Rate: 240 to 459 cfm
  • Fuse Size: 15
  • HSPF Rating: 10.6
  • Manufacturer: Daikin
  • Manufacturer #: FTXG12HVJU
  • Maximum Piping Length: 33 ft
  • Mounting Type: Wall
  • Phase: 1
  • Refrigerant Type: R-410A
  • Sound Level: 43 dBA
  • Suction Line Size: 3/8 in
  • temHeatingCapacity: 16,000 BTU/hr
  • Type: Ductless Single-Zone
  • Voltage Rating: 208 / 230 VAC
  • Weight: 31.0 lb
Quaternity™ incorporates extensive technological innovations giving features and benefits that deliver a solution significantly superior to a traditional "mini split" system. The system delivers one of the highest efficiencies on the market, with added features such as being able to set and monitor relative humidity, an integrated air cleaner module, and an excellent range of cooling and heating capacities. Quaternity™ represents a solution offering complete peace of mind.

Daikin® Quaternity™ Indoor Heat Pump, Ductless Single-Zone, 1 ton Nominal Capacity, 16000 Btu/hr Heating, 12000 Btu/hr Cooling, 208 to 230 VAC 60 Hz 1 ph, 240 to 459 cfm, 14 EER, 24.2 SEER, HSPF: 10.6, 4.04 COP Rating, Hermetically Sealed Swing Compressor, R-410A, 3/8 in Suction Line, 1/4 in Discharge Line, 15 A Fuse, 14 to 109 deg F Cooling/-4 to 75 deg F Heating, 43 dBA, 33 ft Maximum Piping Length, Wall Mount, Ivory White, 35-1/16 in W x 8-1/4 in D x 12 in H, Import
  • Features
  • One of the first heat pumps capable of controlling humidity levels to a relative humidity setting
  • Purifies and removes allergens from the air, Daikin®'s Flash Streamer technology is proven to deliver over 1000 times faster purification versus normal plasma type systems
  • Up to SEER 26.1 and EER 15.8, one of the highest energy efficiencies in the market
  • Delivers incredible heating capacity at lower ambient temperature (down to -4 deg F)
  • One outdoor unit (RXG) connects to one wall-mounted indoor unit (FTXG)
  • Quick and easy duct-free installation
  • Precision temperature control for individual rooms
  • Space-saving design
  • Simple to use wireless infra-red remote controlled shows ambient temperature and room temperature
  • Comfort and sound set-back ability with very quiet operation
