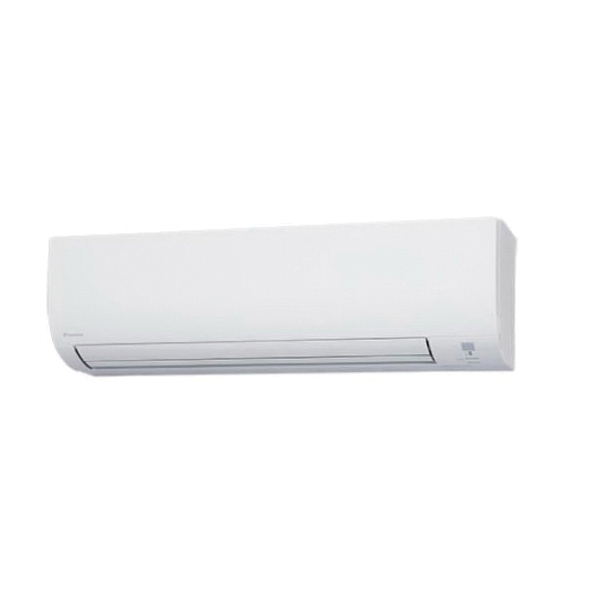

FTXN24NMVJU 15 Series Ductless Single-Zone Indoor Heat Pump

DAIFTXN24NMVJU MFG #: FTXN24NMVJU
  • Cooling Capacity: 23000
  • Domestic / Import: Domestic
  • Heating Capacity: 24000
  • Nominal Capacity: 2
  • Power Source: 208 to 230 VAC 60 Hz 1 ph
  • SEER Rating: 15
  • Color: Matte White
  • Compressor Type: Hermetically Sealed Swing
  • COP Rating: 3.6
  • Dimensions: 39 in W x 10-3/8 in D x 11-5/8 in H
  • Discharge Line Size: 1/4
  • EER Rating: 9.2
  • Flow Rate: 417 to 713 cfm
  • Fuse Size: 20
  • HSPF Rating: 8.2
  • Manufacturer: Daikin
  • Manufacturer #: FTXN24NMVJU
  • Maximum Piping Length: 98
  • Mounting Type: Wall
  • Refrigerant Type: R-410A
  • Series: 15 Series
  • Sound Level: 51
  • Suction Line Size: 5/8
  • Type: Ductless Single-Zone
Daikin®'s 15 Series Wall Mount Systems provide energy efficiency and comfort control with an inexpensive, cost-saving solution. Offered in both heat pump and cooling-only applications, these systems feature streamlined, wall-mounted indoor units paired with quietly compact outdoor units. The flexible design blends discreetly with any home decor, and is ideal for single room enhancements, spaces requiring additional cooling only, and additions up to 1460 sq-ft.

Daikin® Indoor Heat Pump, Ductless Single-Zone, Series: 15 Series, 2 ton Nominal Capacity, 24000 Btu/hr Heating, 23000 Btu/hr Cooling, 208 to 230 VAC 60 Hz 1 ph, 417 to 713 cfm, 9.2 EER, 15 SEER, HSPF: 8.2, 3.6 COP Rating, Hermetically Sealed Swing Compressor, R-410A, 5/8 in Suction Line, 1/4 in Discharge Line, 20 A Fuse, 50 to 115 deg F Cooling/5 to 65 deg F Heating, 51 dBA, 98 ft Maximum Piping Length, Wall Mount, Matte White, 39 in W x 10-3/8 in D x 11-5/8 in H, Domestic
  • Features
  • Washable air filter
  • Program dry function
  • Econo mode
  • Powerful operation mode
  • Backlit wireless remote controller
  • Auto fan speed control
  • Self-diagnostics with digital display
  • Auto restart after power failure
  • Anti-corrosion heat exchanger treatment
