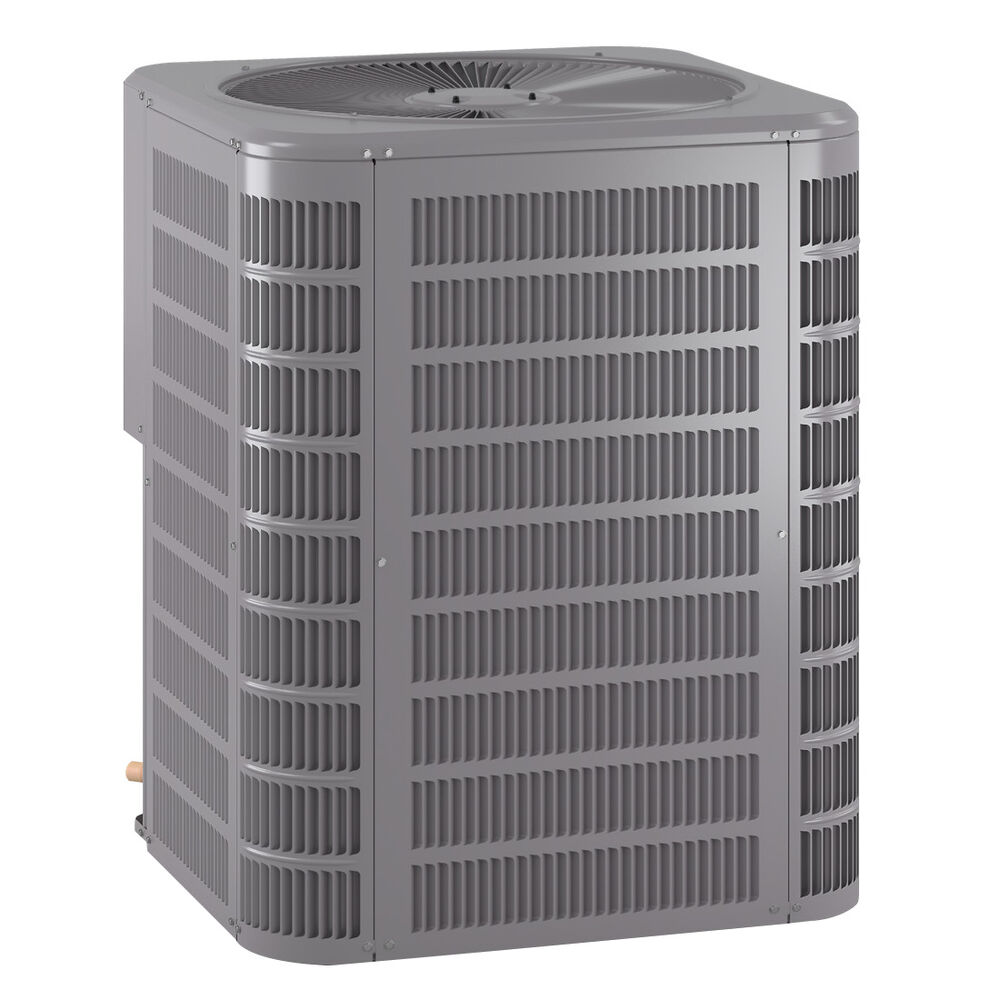

Name: 7AC13F36P 1-Stage Omniguard® Coil Split System Air Conditioner, 3 ton Nominal, 208/230V, 1 ph, 60 hz, R-454B, Up to 16 SEER2
Brand: Ducane™
SKU: DUC7AC13F36P
Availability: OutOfStock

Ducane™

7AC13F36P 1-Stage Omniguard® Coil Split System Air Conditioner, 3 ton Nominal, 208/230V, 1 ph, 60 hz, R-454B, Up to 16 SEER2

Item #DUC7AC13F36P

MFG #25F97

UPC662551601290

BrandDucane™

: R454B RDS boards and sensor kits for New and Hybrid Installations

: Outdoor Coil Fan

Omniguard® Coil

High Capacity Liquid Line Drier

High Pressure Switch

Low Pressure Switch

Scroll Compressor

Heavy Gauge Steel Cabinet

Refrigerant Line Connections and Accessories
: Cooling Capacity36,000 Btu/hr
Power Source60 Hz
Refrigerant TypeR-454B
SEER2 Rating13.4
Sound Level76 dBA
Dimensions28-1/4 in W x 33-1/4 in H x 28-1/4 in D
Flow Rate2800 cfm
Indoor TXV26Z70
ManufacturerAllied Air Enterprises
Manufacturer #25F97
Motor HP1/6 hp
Motor RPM825
Nominal Capacity3 ton
Number of Stages1
Phase1
Series7AC13F
Voltage Rating208 / 230 V

: Data Sheet
Instruction/Installation Manual
Specification Sheet
