0122935 LF860, LF860-NRS RP In-Line Large Diameter Reduced Pressure Zone Assembly, 6 in
FEB0122935
MFG #: 0122935
- Ball Valve / Gate Valve Type: Resilient Wedge Gate Valve
- Body Material: Ductile Iron
- Domestic / Import: Domestic
- End Style: Flanged
- Nominal Size: 6 in
- Dimensions: 56 in L
- Finish: Fused Epoxy Coated
- Manufacturer: Watts Water Technologies
- Manufacturer #: 0122935
- Pressure Rating: 20 to 175 psi
- Series: LF860
- Temperature Rating: 32 to 140 degF
- Type: In-Line Large Diameter

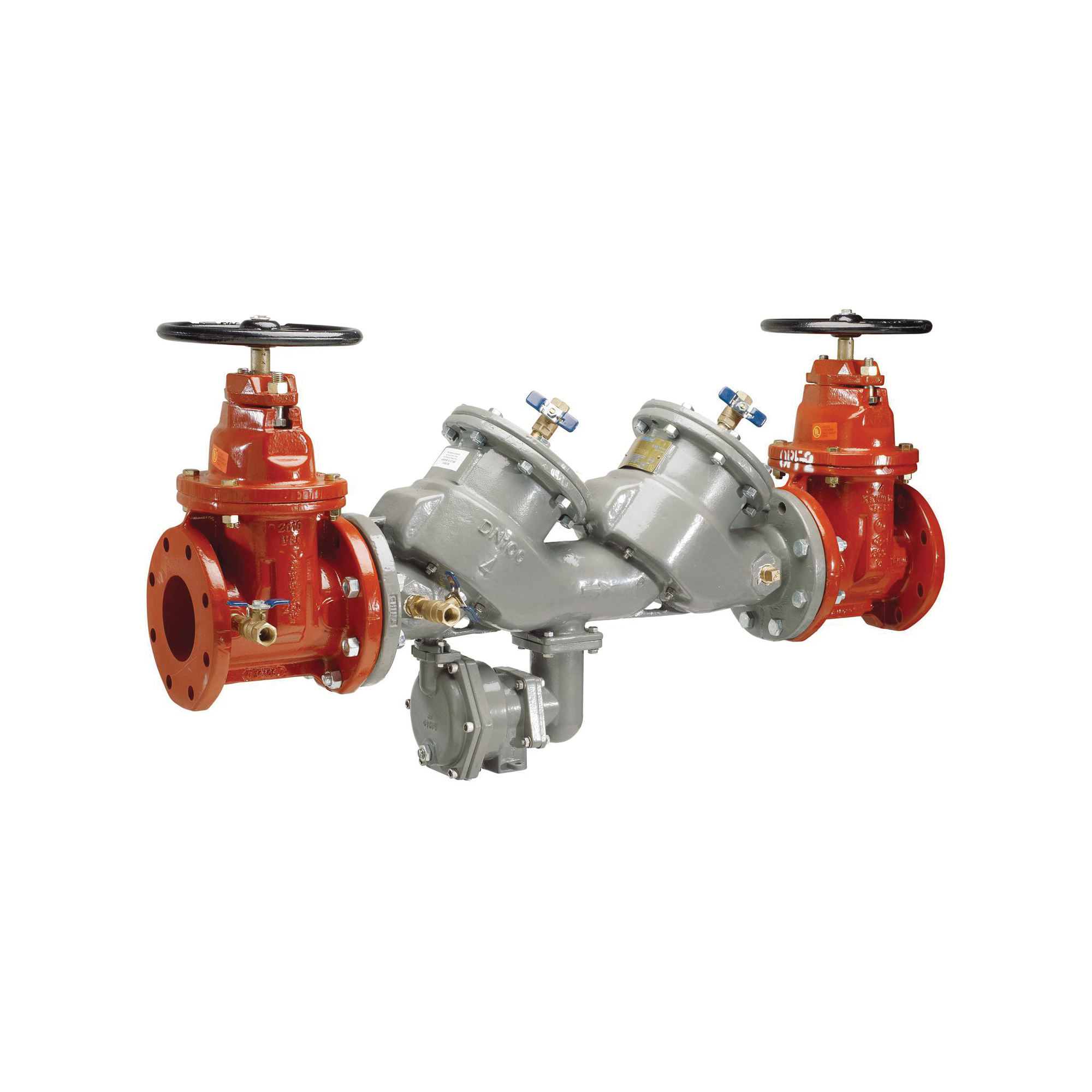

This 6 in lead free MasterSeries® reduced pressure zone assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in industrial plants, hospitals, morgues, mortuaries and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other health hazard installations requiring maximum protection. This assembly with non-rising stem shutoff valves consists of a lead free body, top mounted test cocks, spring loaded check valves and a pressure differential relief valve.
Febco® MasterSeries® Reduced Pressure Zone Assembly, In-Line Large Diameter, Series: LF860, 6 in Nominal, Flange, 20 to 175 psi, 32 to 140 deg F, Resilient Wedge Gate Valve Ball Valve/Gate Valve, Ductile Iron Body, Fused Epoxy Coated, 56 in L, Domestic
Febco® MasterSeries® Reduced Pressure Zone Assembly, In-Line Large Diameter, Series: LF860, 6 in Nominal, Flange, 20 to 175 psi, 32 to 140 deg F, Resilient Wedge Gate Valve Ball Valve/Gate Valve, Ductile Iron Body, Fused Epoxy Coated, 56 in L, Domestic
- Features
- Includes
- In-line serviceable assembly
- Captured modular spring assembly
- Captured O-ring design
- Stainless steel check components
- 350 psi hydrostatic test pressure
- 700 psi hydrostatic safety pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Non-rising stem resilient wedge gate valve
Pressure Differential Relief Valve, (2) Independently Acting Clapper Style Check Modules With Replaceable Seats and Disc Rubbers
