Franklin Electric

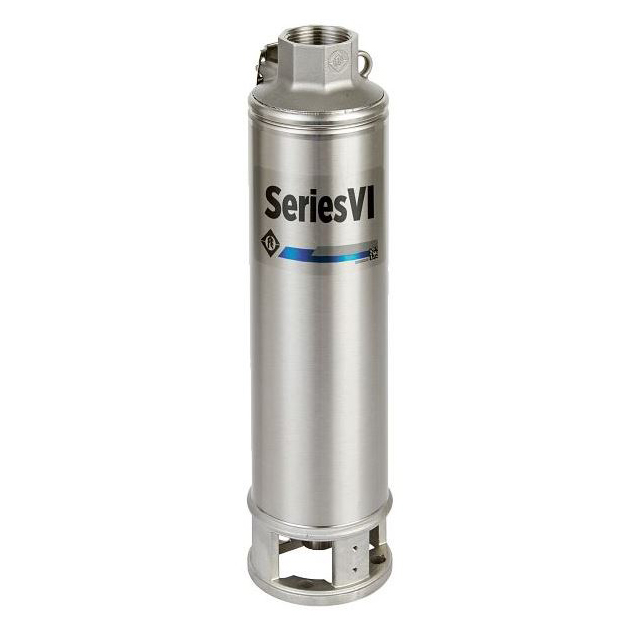

95961245 12FS1S4-3W230 Series VI Submersible Well Pump 1 hp, Stainless Steel, 3 Wire, 230V, 12 gpm

FRA95961245 MFG #: 94961245
95961245 12FS1S4-3W230 Series VI Submersible Well Pump 1 hp, Stainless Steel, 3 Wire, 230V, 12 gpm
  • Flow Rate: 12 gpm
  • Number of Stages: 11
  • Voltage Rating: 230V
  • Manufacturer: Franklin Electric
  • Manufacturer #: 94961245
  • Motor HP: 1
  • Number of Wire: 3
  • Series: Series VI
  • Shut Off: 434 ft
  • Temperature Rating: 120 degF
  • Features
  • Exceeds all industry standards for quality manufacturing processes and operational safety
  • Constructed from drinking water safe materials that are non-leeching and lead-free
  • All stainless steel components are 300 series grade or better
  • Industry-standard discharge head and NEMA motor connection bracket produced with proven, reliable, and durable materials. Available in 300 series stainless steel or engineered thermoplastic resins
  • 1.25" NPT discharge pipe connection with sufficient wrench flat area allows for quick and easy installation
  • Plastic outlet connection pumps have a Flomatic VFD style check valve; stainless steel connection pumps are equipped with a wafer disc-style check valve
  • Pump hydraulics are driven by stainless steel, 7/16" hex shaft with a rigid top bearing and splined motor coupling for maximum power distribution efficiency
  • 100% factory performance tested Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection
  • The maximum water temperature with the proper flow is 120 °F/49 °C. Consult the factory for details.
  • NSF/ANSI 61 Certified
