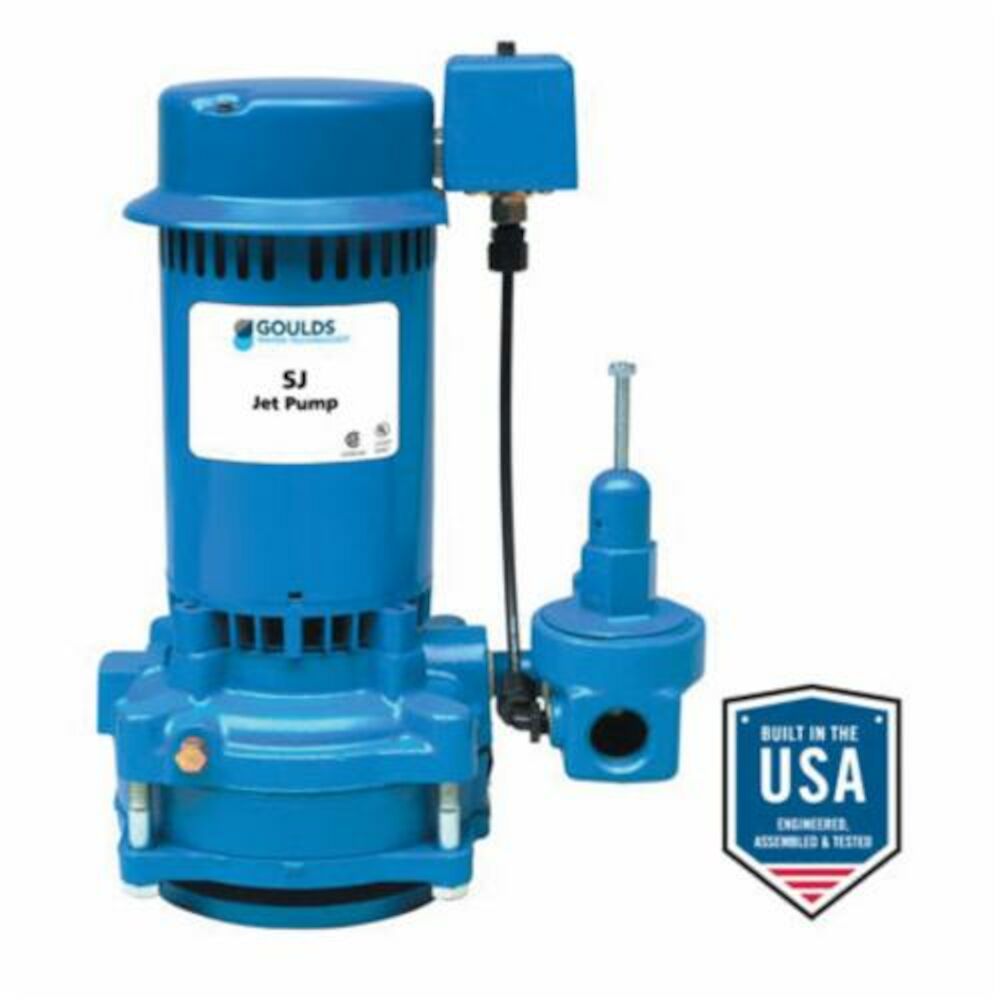

- Goulds Jet Pump, Deep Well, Series: SJ Series, 16 gpm, 1-1/4 in NPT Inlet, 1 in NPT Outlet, 1 hp, 115/230 VAC, 60 Hz, 3500 rpm Motor, 140 deg F, Domestic
- Specifically designed to deliver high capacities at deeper settings
- Stainless steel pump shaft has hex design provides positive drive for impellers and eliminates clearance adjustments
- Can be taken apart for service by removing four bolts
- Glass filled thermoplastic impellers
- Stainless steel wear rings and cover plates
- Electro coat paint process applied inside and out and then baked on
- Pump is designed for continuous operation
- All ratings are within the motor manufacturer's recommended working limits
- Top mounted vent plug allows air to escape from seal cavity during initial priming
- Built-in overload with automatic reset
- Stainless steel shaft
- Clockwise rotation when viewed from motor end
- AS4 30-50 psi pressure switch
- Pump with Integral Shallow Well Jet (Nozzle and Venturi), Motor, Pressure Switch and Tubing
- Domestic / ImportDomesticFlow Rate16 gpmInlet Size1-1/4 in NPTMotor HP1 HPOutlet Size1 in NPTFrequency Rating60 HzManufacturerXylemManufacturer #SJ10Motor Speed3500SeriesSJ SeriesTemperature Rating140 deg FTypeDeep Well
