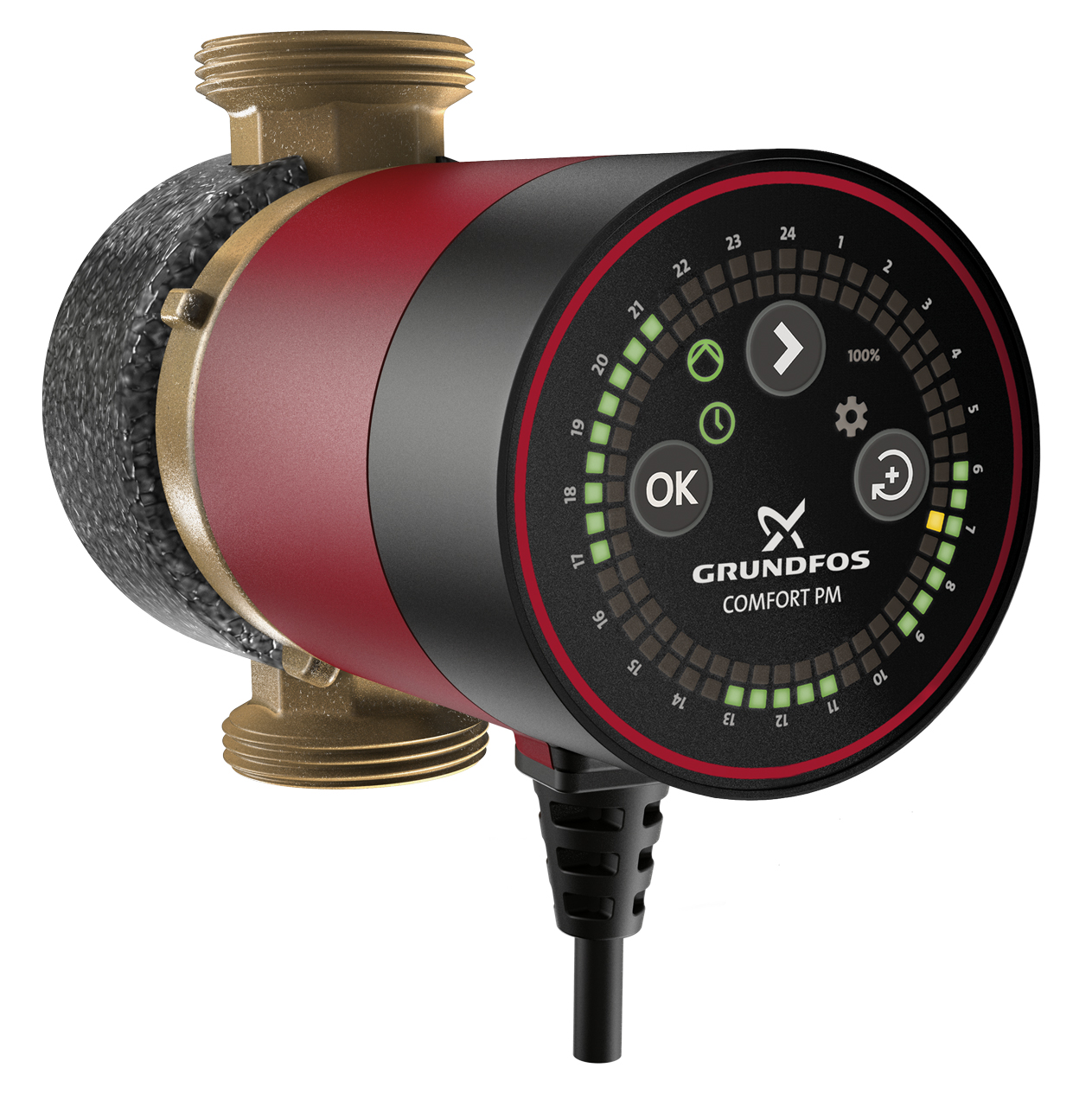

99812354 COMFORT 10-16 DT PM BU/LC Domestic Hot Water Pump with Digital Timer

GRU99812354 MFG #: 99812354
  • Voltage Rating: 115/230 VAC
  • Impeller: Stainless Steel, EPDM, PPO, PTFE, Graphite
  • Manufacturer: Grundfos Pumps
  • Manufacturer #: 99812354
  • Max Power Input: 6 W
  • Number of Speeds: 1
  • Pipe Connection: 1-1/4 in NPSM
  • Port-to-Port Length: 110 mm
  • Pump Housing: Ecobrass
  • Temperature Rating: 140 deg F
  • Type of Cable Plug: NEMA 1-15P
The high-efficiency Grundfos COMFORT 10-16 DT PM BU/LC pump are designed for recirculation of domestic hot water in single - and two-family houses securing hot water instantly to all faucets. The pumps have a corrosion-resistant pump housing suitable for drinking water and are powered by a single-phase, high-efficiency ECM with permanent-magnet rotor. The integrated digital timer has been developed for domestic hot-water recirculation in systems with either hot-water tanks or plate heat exchangers for hot-water production. The timer allows you to customize the pump's operating periods, ensuring optimal comfort while lowering energy costs. Additionally, the pump can be set to continuous operation 100 %. COMFORT 10-16 DT PM BU/LC has a built-in isolating valve and a non-return valve. This ensures that maintenance can be carried out without draining the system. The non-return valve also prevents reversed flow during operation.

  • Features
  • Continuous operation can be set for commissioning of the pump or 24 hours instant hot shower and tap water.
  • Quick and simple electrical installation.
  • Dry-running protection protects the pump against dry running during startup and normal operation.
  • Easy-to-clean and lime-resistant spheric rotor.
  • Noiseless operation due to liquid-lubricated bearing.
  • No leakage risk due to a static seal.
  • Easy maintenance and cleaning through the easy-to-separate pump head.
  • No additional motor protection is necessary due to integrated motor electronics.
