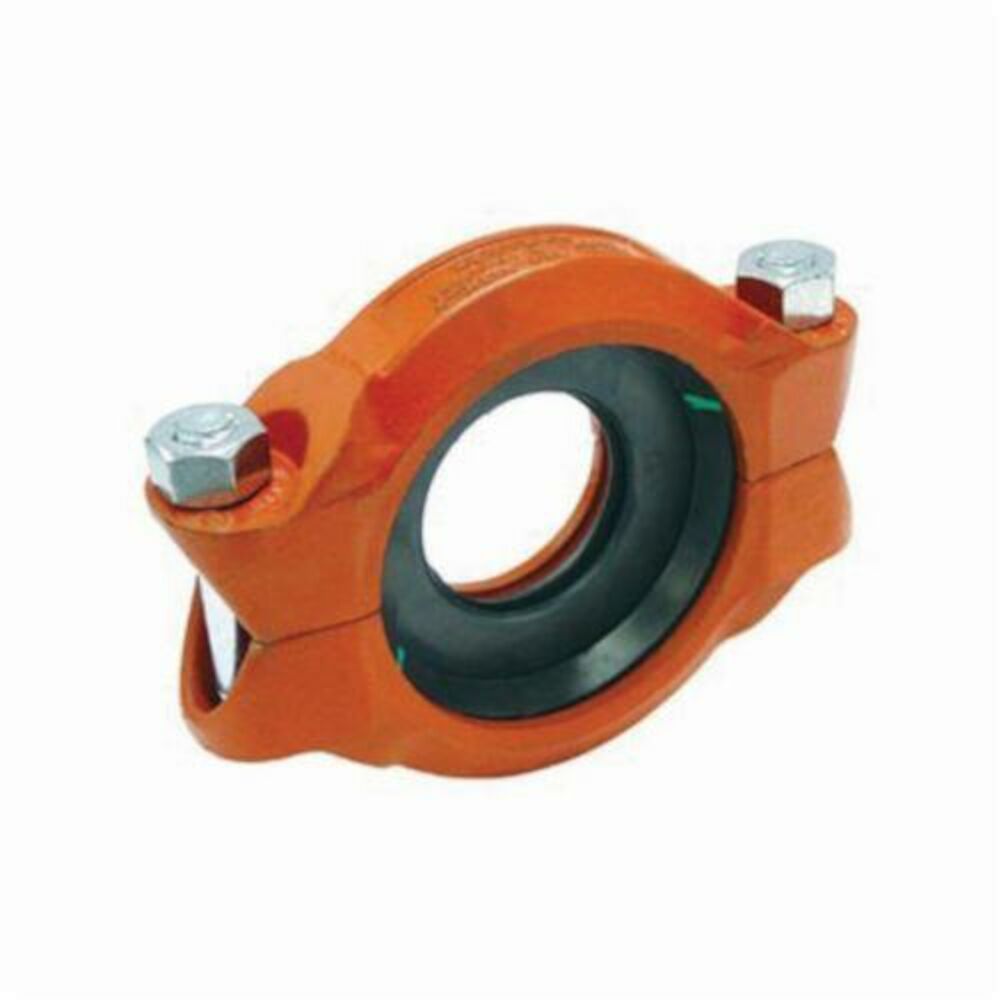

- The Fig. 7010 Reducing Coupling makes it possible to directly connect two different pipe sizes, eliminating the need for two couplings and a reducing fitting. The specially designed reducing coupling gasket with a center rib assures proper positioning of the gasket and prevents the smaller pipe from telescoping into the larger during assembly. Fig. 7010 Reducing Coupling allows for working pressure ratings up to 500 PSI (34.5 bar). Not recommended for vacuum applications.
Gruvlok® Reducing Pipe Coupling, Series: FIG 7010, Reducing Coupling, 2x1-1/2 in Nominal, Grooved, 1-7/8 in Thickness, 500 psi, Ductile Iron, Rust Inhibiting Paint, Orange, -40 To 250 deg F, 1.9 to 2-3/8 in ODx5-7/8 in W, Domestic
- 2215 lb max end load
- Domestic / ImportDomesticEnd StyleGroovedFinishRust Inhibiting PaintFitting / Connector TypeReducing CouplingMaterialDuctile IronNominal Size2 x 1-1/2 inColorOrangeDimensions1.9 to 2-3/8 in OD x 5-7/8 in WManufacturerAnvil InternationalManufacturer #0390009280Pressure Rating500 psiSeriesFIG 7010Temperature Rating-40 to 250 degFThickness1-7/8 in
