- Combination gas control for use with hot surface/direct spark systems in 24 VAC, gas-fired appliances, with capacities from 30 to 415 cfh.

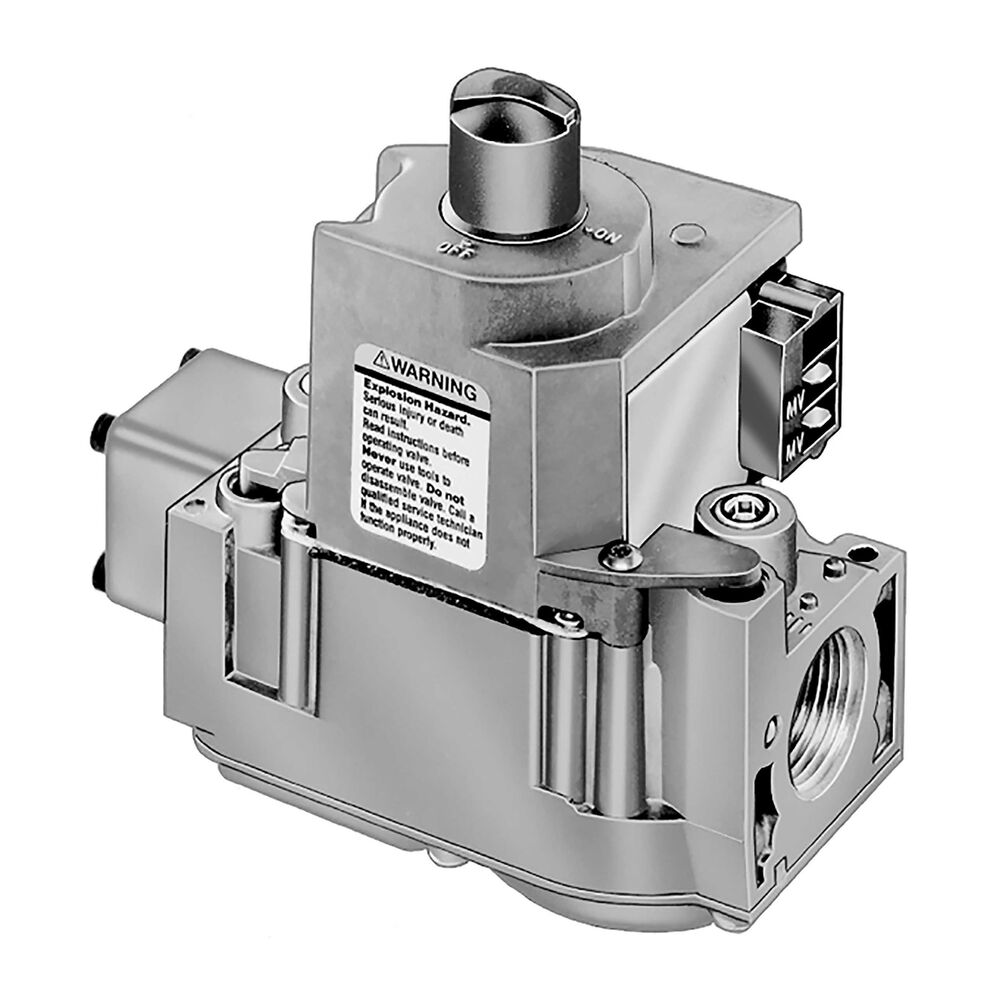

Combination Gas Control, Low Voltage Step Opening, Series: VR8305, 24 V, 0.7 A, Direct Ignition, 0.5 psi, -40 to 175 deg F, Vertical Mount, 4-1/16 in W x 2-11/16 in D
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- On-off lighting sequence
- Use VR8305 models with S89C,E,F and S87 series 5 and later
- Inlet Screen, Manual Valve, (2) Automatic Operators and Pressure Regulator
- Ignition TypeDirectPressure Rating0.5 psiVoltage Rating24 VDimensions4-1/16 in W x 2-11/16 in DManufacturerResideo TechnologiesManufacturer #VR8305P4279/UMounting TypeVerticalSeriesVR8305Temperature Rating-40 to 175 deg FTypeLow Voltage Step Opening
