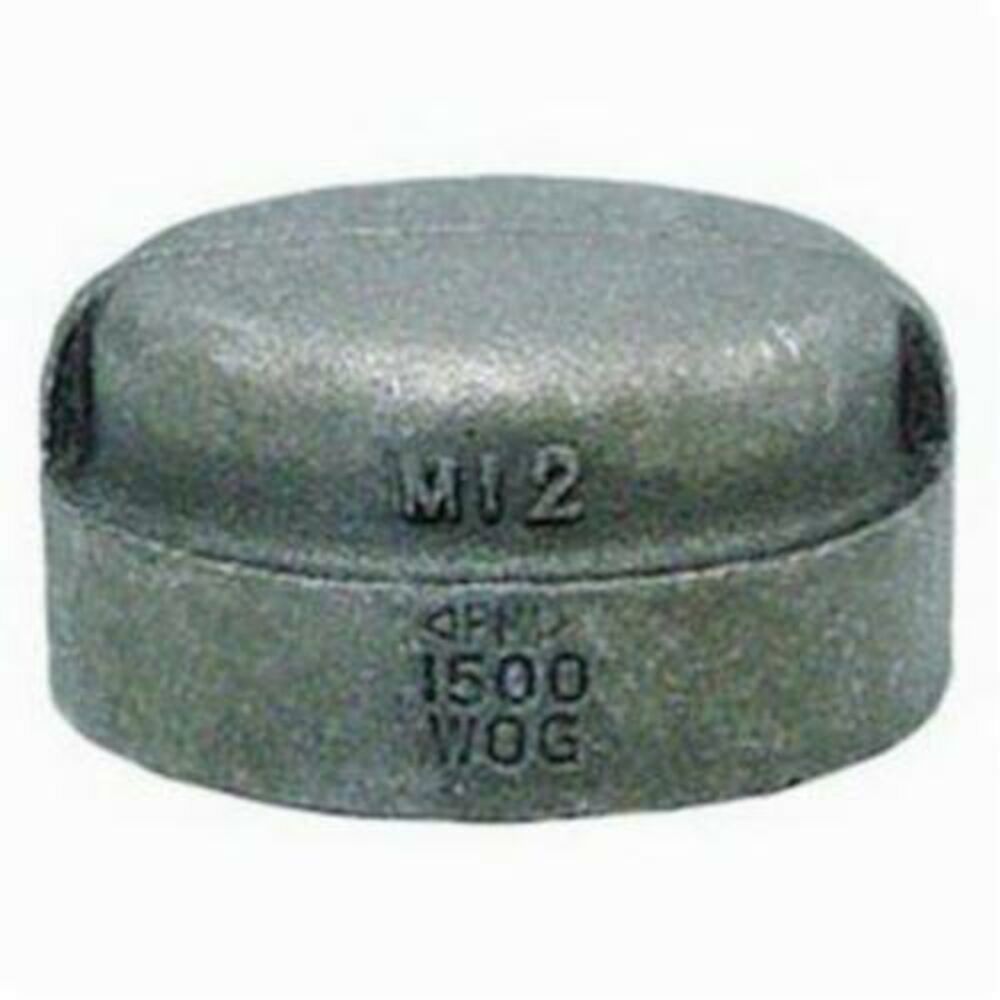

FIG 3163 Pipe Cap, 1/2 in, NPT, 300 lb, Malleable Iron, Black, Import

Item #IB300CAPD

UPC690291130106

: SPF/Anvil™ Malleable Iron Pipe Fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SPF/Anvil Malleable Iron Fittings are tested for through wall porosity using an air under water process. Malleable Iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.

Pipe Cap, Series: FIG 3163, Fitting/Connector Type: Cap, 1/2 in Nominal Size, NPT, 1 in Length, SCH 80/XH, 300 lb, 2000 psi, Malleable Iron, Black, Import, -20 To 150 deg F, Import

: Domestic / ImportImport
End StyleNPT
FinishBlack
Fitting / Connector TypeCap
MaterialMalleable Iron
Nominal Size1/2 in
Pressure Class300 Lb
Length1 in
ManufacturerFirst Supply Approved
Pressure Rating2000 psi
Schedule RatingSCH 80/XH
SeriesFIG 3163
Temperature Rating-20 to 150 degF
