First Supply Approved

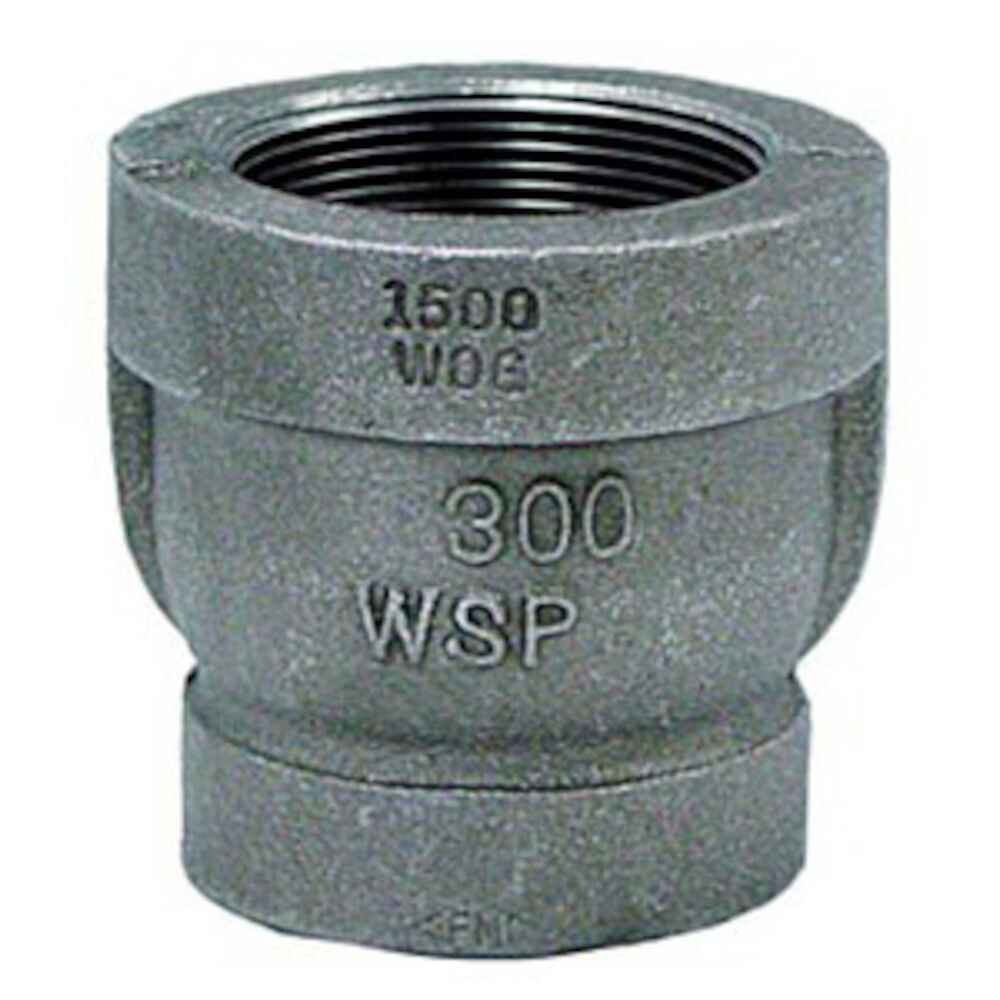

FIG 3167 Pipe Reducing Coupling, 1/2x1/4 in, NPT, 300 lb, Malleable Iron, Black, Import
Sign In to View Pricing & Availability
- SPF/Anvil™ Malleable Iron Pipe Fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SPF/Anvil Malleable Iron Fittings are tested for through wall porosity using an air under water process. Malleable Iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.
Reducing Pipe Coupling, Series: FIG 3167, Fitting/Connector Type: Reducing Coupling, 1/2x1/4 in Nominal Size, NPT, 1.69 in Length, SCH 80/XH, 300 lb, 2000 psi, Malleable Iron, Black, -20 To 150 deg F, Import
- Domestic / ImportImportEnd StyleNPTFinishBlackFitting / Connector TypeReducing CouplingMaterialMalleable IronNominal Size1/2 x 1/4 inPressure Class300 LbLength1.69 inManufacturerFirst Supply ApprovedPressure Rating2000 psiSchedule RatingSCH 80/XHSeriesFIG 3167Temperature Rating-20 to 150 degF
