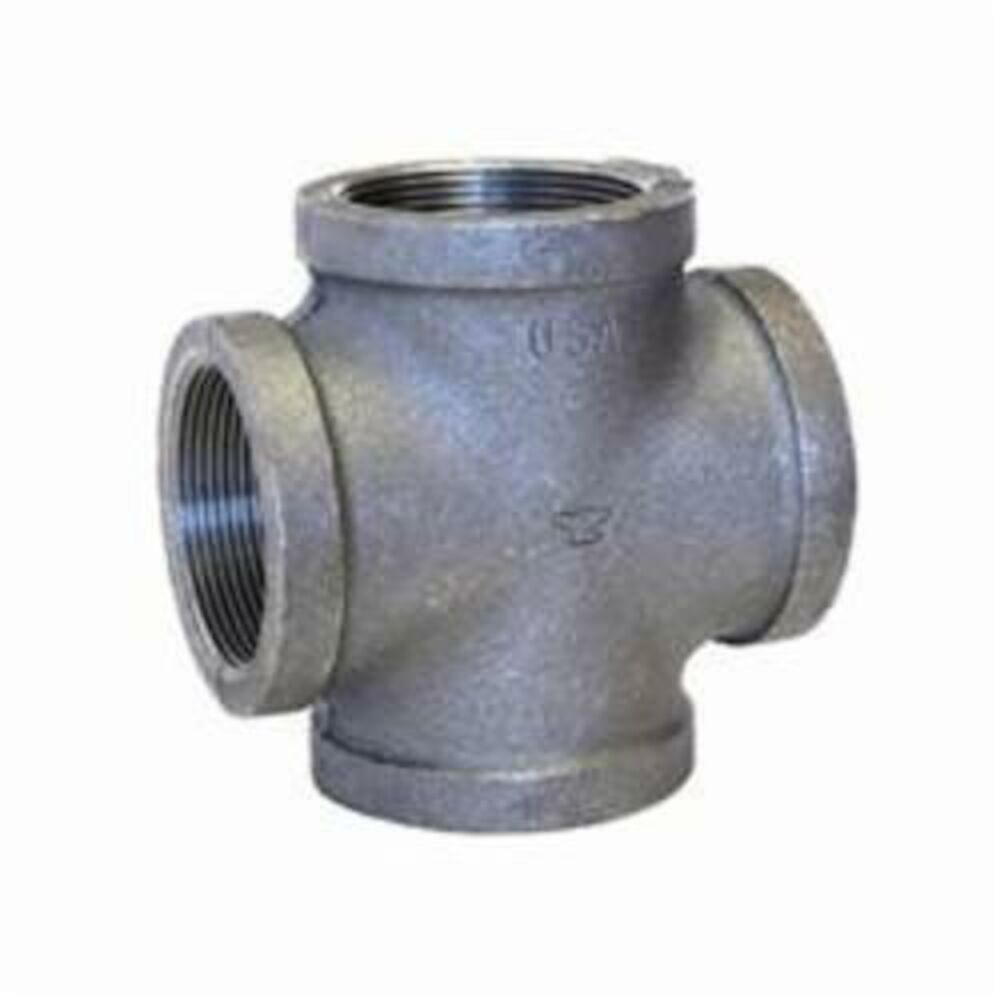

FIG 1107 Pipe Cross, 3/4 in, FNPT, 150 lb, Malleable Iron, Black

Item #IBCROSSF

UPC690291963810

: Anvil® International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil’s strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 psi (6.9 bar).

Pipe Cross, Series: FIG 1107, Fitting/Connector Type: Cross, 3/4 in Nominal Size, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Black, -20 to 150 deg F

: End StyleFNPT
FinishBlack
Fitting / Connector TypeCross
MaterialMalleable Iron
Nominal Size3/4 in
Pressure Class150 Lb
ManufacturerFirst Supply Approved
Pressure Rating300 psi
Schedule RatingSCH 40/STD
SeriesFIG 1107
Temperature Rating-20 to 150 degF
