ICP™ - Comfortmaker® / Tempstar®

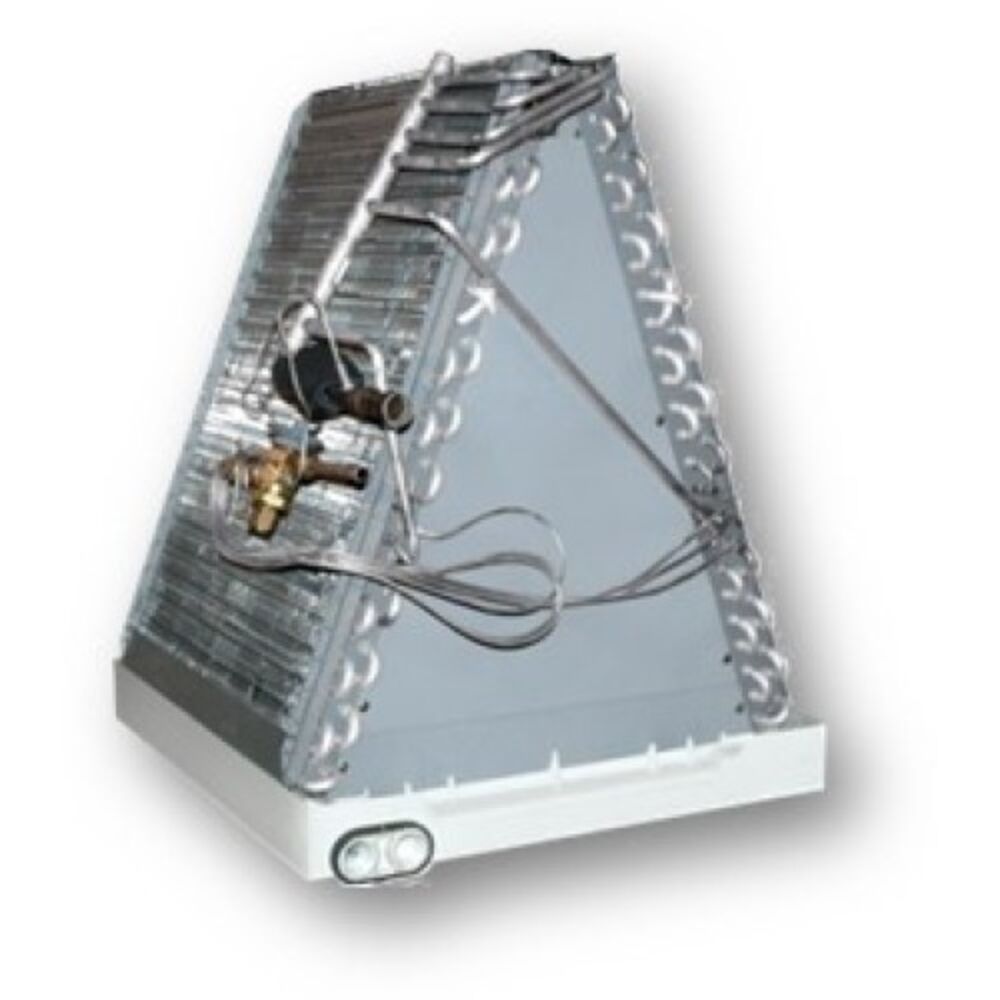

EAAWX30L17A ICP 17" Upflow/ Downflow Uncased Evaporator A-Coil, Service Use, 2.5 Ton, 30,000 Btu/hr, R-410A Refrigerant
Sign In to View Pricing & Availability
- Thermostatic Expansion Valves (TXV) — All coils have refrigerant-specific, factory-installed TXVs.
- Durable Condensate Pan — Corrosion-resistant drain pan with fiberglass reinforced thermoset polyester material for pan strength. Engineered with proper slope to help ensure water drainage, reduced pan sweating and improved moisture removal.
- Aluminum hairpin/return-bend/fin — “A” coil with the latest high-tech fin design
- Refrigerant Connections — Coils have industry proven sweat connections for leak-free operation. The side mounting tubing to the coil slabs allows for easy cleaning and servicing of the coils and easy access to TXV.
- Burst Pressure — Coils meet or exceed burst pressure of 2100 psi; good for R-410A refrigerant designs.
- Serviceability — Coils come with a split-delta plate for easy access to the coil for service and cleaning. Coils are removable from the front of the unit without use of any tools (once the door is removed). Units are also designed with a single size screw.
- Installation Flexibility — The EAA4X evaporator coils provide flexibility for a wide variety of field applications installed in either a factory-manufactured accessory casing, or a field-supplied plenum enclosure. Water management capabilities have been enhanced for downflow applications.
- Cooling Capacity30,000 Btu/hrEnclosure TypeUncasedNominal Capacity2.5 tonRefrigerant TypeR-410ASeriesEAAWXTypeType AAir Flow TypeUpflow / DownflowDimensions16-5/16 in W x 21-7/16 in H x 20-1/8 in DHairpin MaterialAluminumLiquid Line Size3/8 inManufacturerInternational Comfort ProductsManufacturer #EAAWX30L17AMetering DeviceTXVSuction Line Size3/4 inWeight33 lbs
