ICP™ - Comfortmaker® / Tempstar®

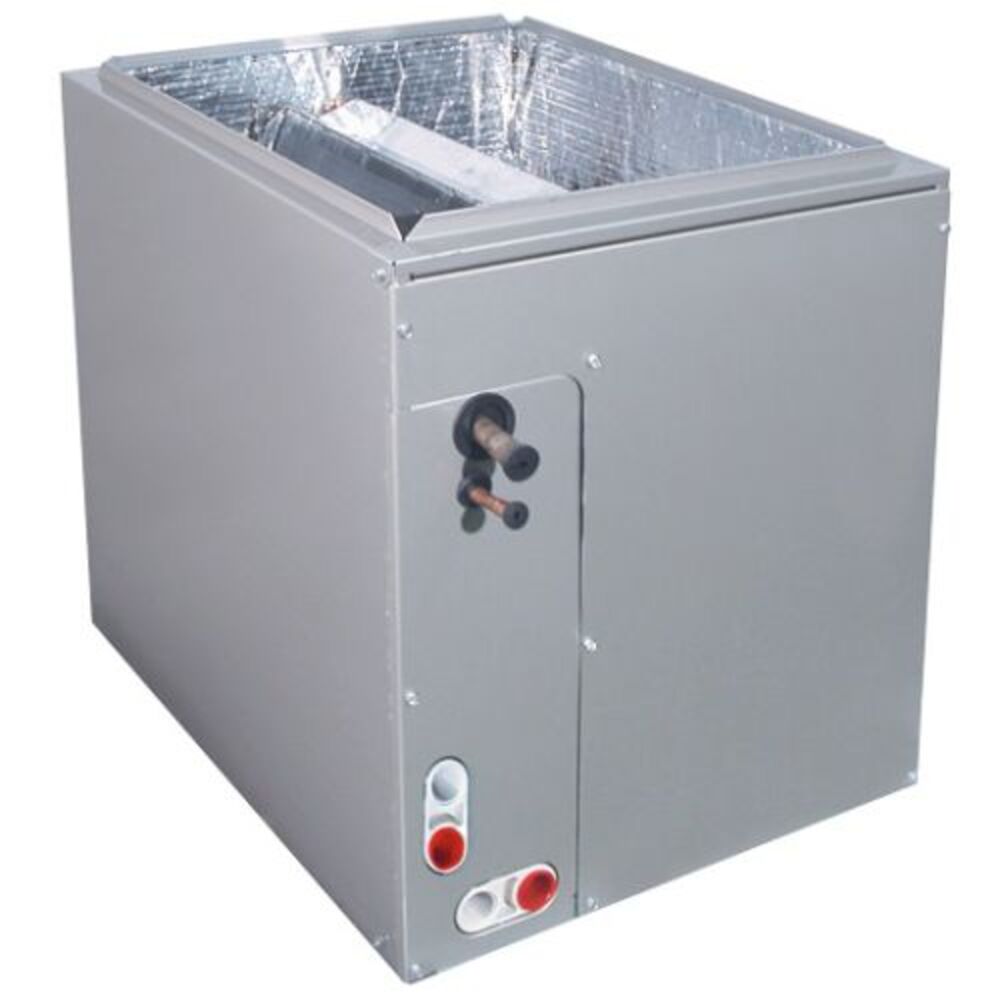

EAMWX61L21A ICP 21" Multi-Position Cased Evaporator A-Coil, Service Use, 5 Ton, 61,000 Btu/hr, R-410A Refrigerant, Steel
Sign In to View Pricing & Availability
- The EAMWX evaporator coil incorporates proven standards for reliable system operation and performance throughout the life of this quality Air Conditioner or Heat Pump system. These quality evaporator coils, manufactured and installed as part of a total comfort system, provide AHRI-rated performance ratings and are additionally listed with UL and c-UL. This coil is available for use with R-410A Refrigerant only. It is a cased A-coil that is housed in a durable, 24-gauge, pre-painted taupe metallic cabinet. The fully insulated cabinet (foil faced with R-2.1 insulation properties) provides for quiet efficient operation of the evaporator coil. This multipoise coil offers the most in installation application flexibility; one coil for a variety of applications with fewer SKUs to stock.
- Performance ------------ Designed with performance in mind, this new A-coil offers low pressure drops to enhance system performance and airflow characteristics.
- Thermostatic Expansion Valves (TXV) ------------ All coils have refrigerant-specific, factory-installed TXVs.
- Durable Condensate Pans (2)------------ The corrosion-resistant drain pans, one for vertical applications and one for horizontal, are designed in a “fiberglass reinforced thermoset polyester” material (FRTP) that offers unsurpassed pan strength. It is engineered with proper slope in both pans to help ensure water drainage, improved moisture removal, and home comfort.
- Refrigerant Connections------------ Provided with industry proven sweat connections for leak-free operation to maintain system reliability. The side mounting tubing to the coil slabs allows for easy cleaning/servicing of the coils, as well as easy access to the TXV.
- Burst Pressure------------ Meets or exceeds burst pressure of 2100 psi, which is at least three to five times the pressure it would see in actual application.
- UV Knockouts------------ This cased coil comes with factory-installed UV knockouts for quick and easy installation of UV lights.
- Serviceability------------ Comes with a “split delta plate” for easy, quick access to the coil for service and cleaning. Also, after the door is removed, the coil is removable from the front of the unit without use of any tools.
- Cooling Capacity61,000 Btu/hrEnclosure TypeCasedNominal Capacity5 tonRefrigerant TypeR-410ASeriesEAMWXTypeType ADimensions21 in W x 35 in H x 20-5/8 in DHairpin MaterialAluminumInstallation ConfigurationMulti-poiseLiquid Line Size3/8 inManufacturerInternational Comfort ProductsManufacturer #EAMWX61L21AMaterialSteelMetering DeviceTXVSpecificationsProduct is for Service and Warranty OnlySuction Line Size7/8 in
