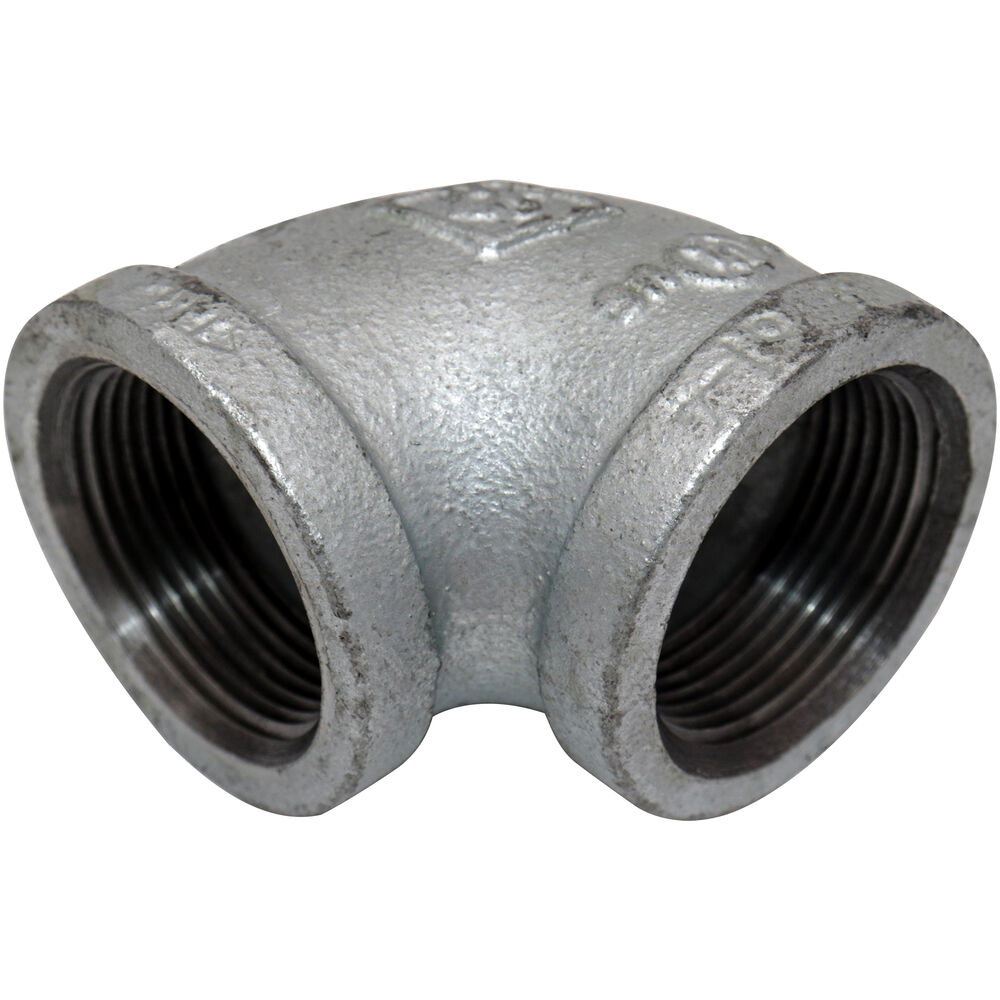

Name: Anvil® 0811001411 FIG 3101 90 deg Pipe Elbow, 1-1/4", FNPT, 150 lb, Malleable Iron, Galvanized, Import
Brand: Anvil®
SKU: IG90H
Availability: OutOfStock

Anvil®

Anvil® 0811001411 FIG 3101 90 deg Pipe Elbow, 1-1/4", FNPT, 150 lb, Malleable Iron, Galvanized, Import

Item #IG90H

MFG #0811001411

UPC690291879517

BrandAnvil®

: SPF/Anvil™ Malleable Iron Pipe Fittings conform to ASME B16.3 dimensions and pressure ratings. Unions conform to ASME B16.39, while bushings and plugs conform to ASM B16.14. All SPF/Anvil Malleable Iron Fittings are tested for through wall porosity using an air under water process. Malleable Iron Class 150 and Class 300 Pipe Fittings are UL Listed and FM Approved.

Anvil® Pipe Elbow, Series: FIG 3101, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal Size, FNPT, SCH 40/STD, 150 lb, 175 psi, Malleable Iron, Galvanized, -20 deg F, Import

: Domestic / ImportImport
End StyleFNPT
FinishGalvanized
Fitting / Connector Type90 deg Elbow
MaterialMalleable Iron
Nominal Size1-1/4 in
Pressure Class150 Lb
ManufacturerAnvil International
Manufacturer #0811001411
Pressure Rating175 psi
Schedule RatingSCH 40/STD
SeriesFIG 3101
Temperature Rating-20 deg F

: Specification Sheet
