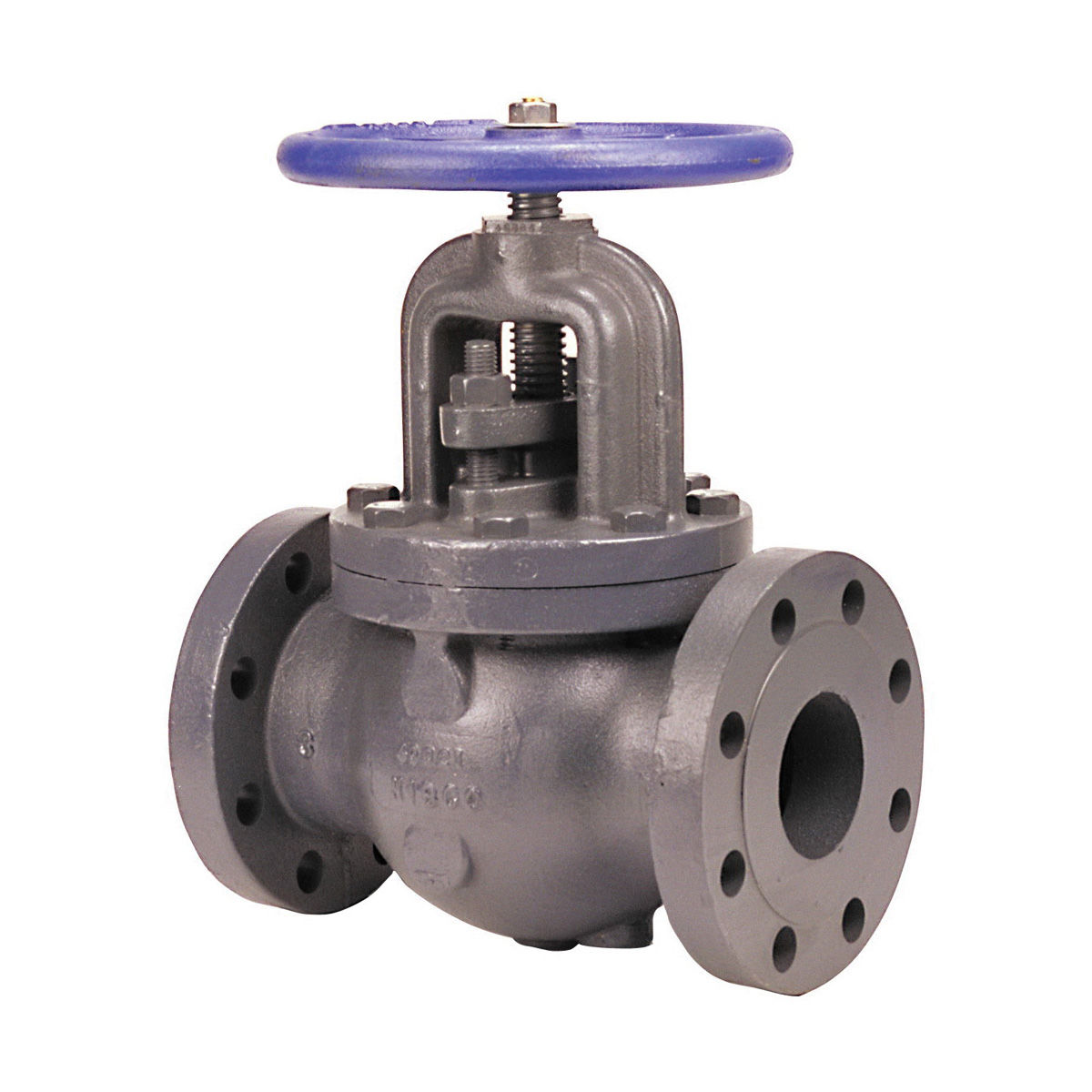

NIBCO® NHCF00H F-768-B Globe Valve, 4 in, Flanged, 250 lb, Cast Iron Body, Handwheel Actuator, Domestic

  • Actuator Type: Handwheel
  • Body Material: Cast Iron
  • Domestic / Import: Domestic
  • End Style: Flanged
  • Nominal Size: 4 in
  • Pressure Class: 250 Lb
  • Hand Wheel Diameter: 11
  • Inlet to Outlet Length: 14
  • Manufacturer: NIBCO Inc.
  • Manufacturer #: NHCF00H
  • Media: Water
  • Pressure Rating: 500 psi
  • Series: F-768-B
  • Softgoods Material: PTFE
  • Top to Inlet Center: 16-1/2
  • Trim Material: BRASS
The NIBCO® Class 250 cast iron globe valve is recommended for service in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Globe valves are recommended for throttling or regulating flow. The NIBCO® iron globe valve has flanged end connections for ease of installation. This valve features renewable seat and disc. The bolted bonnet makes the valve convenient to maintain. Because of its seat and disc arrangement the valve is ideal for throttling or regulating flow. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® globe valves are backed by the NIBCO® 5-year 125% limited warranty.

NIBCO® Globe Valve, Series: F-768-B, 4 in Nominal, Flanged End Style, 500 psi Pressure, 250 lb Pressure Class, Media: Water, Handwheel Actuator, 14 in Inlet to Outlet Length, 16-1/2 in Top to Inlet Center, Cast Iron Body, Brass Trim, PTFE Softgoods, 11 in Diameter Hand Wheel, Domestic
  • Features
  • Iron body bronze mounted trim (IBBM)
  • Bolted bonnet
  • Renewable seat disc
  • 250 psi/17.2 bar saturated steam to 406 deg F
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • PTFE packing
