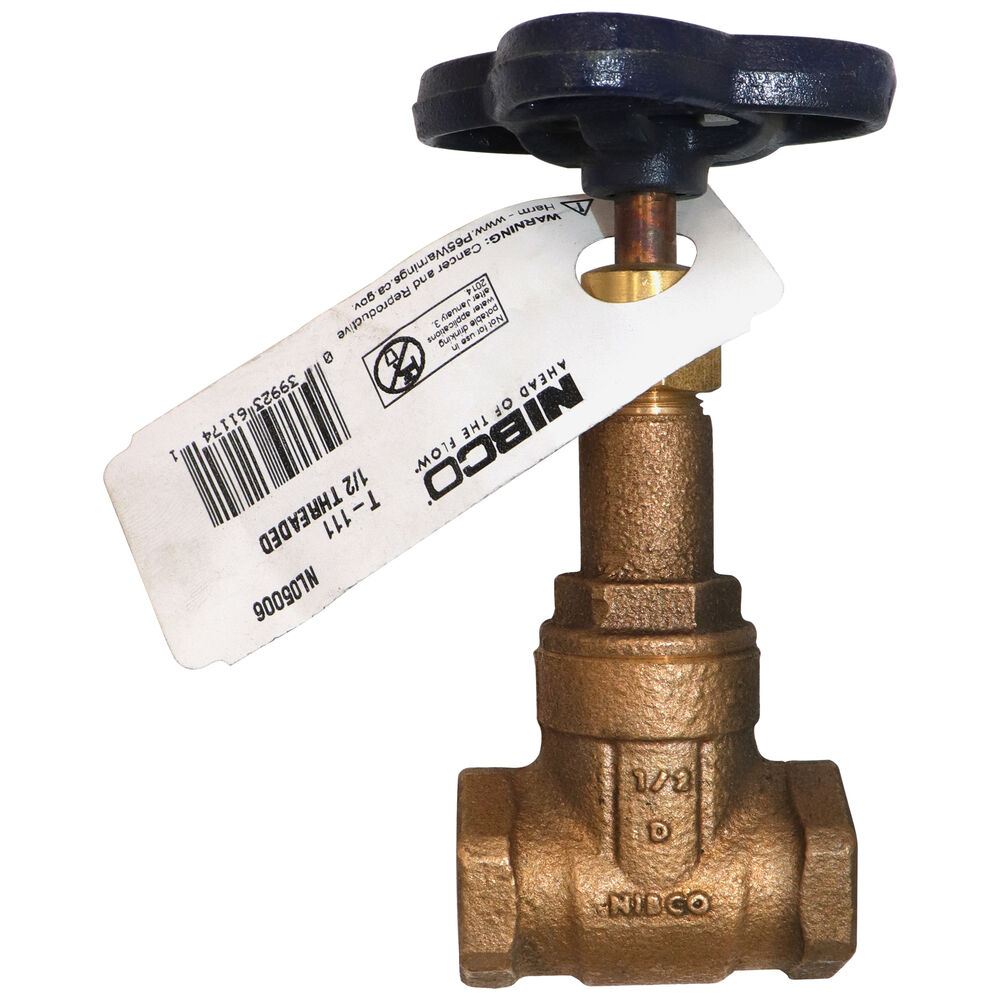

- The NIBCO® bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. Female threaded ends allow for ease of installation. Rising stem gate valves are used when shutoff is required and a quick visual indicator of open/closed position is needed. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5-year 125% limited warranty.
NIBCO® Gate Valve, Series: T-111, 1/2 in Nominal, Thread End Style, 200 psi Pressure, 125 lb Pressure Class, Media: Water/Gas/Air, Handwheel Actuator, 1.94 in Inlet to Outlet Length, 4.81 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, Aramid Fiber Softgoods, Domestic
- 125 psi/8.6 bar saturated steam to 353 deg F
- Rising stem
- Solid wedge
- Dezincification resistant
- Screw-in bonnet
- 200 psi/13.8 bar non-shock cold working pressure
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Aramid fiber packing
- Actuator TypeHandwheelBody MaterialBronzeDomestic / ImportDomesticEnd StyleThreadNominal Size1/2 inPressure Class125 LbInlet to Outlet Length1.94ManufacturerNIBCO Inc.Manufacturer #NL05006MediaWater/Gas/AirPressure Rating200 psiSeriesT-111Softgoods MaterialAramid FiberTop to Inlet Center4.81Trim MaterialSilicon Bronze
