- The NIBCO® bronze ball valve provides bubble-tight shut-off at 600 psi. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The 2-Piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features thread ends for easy installation. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.

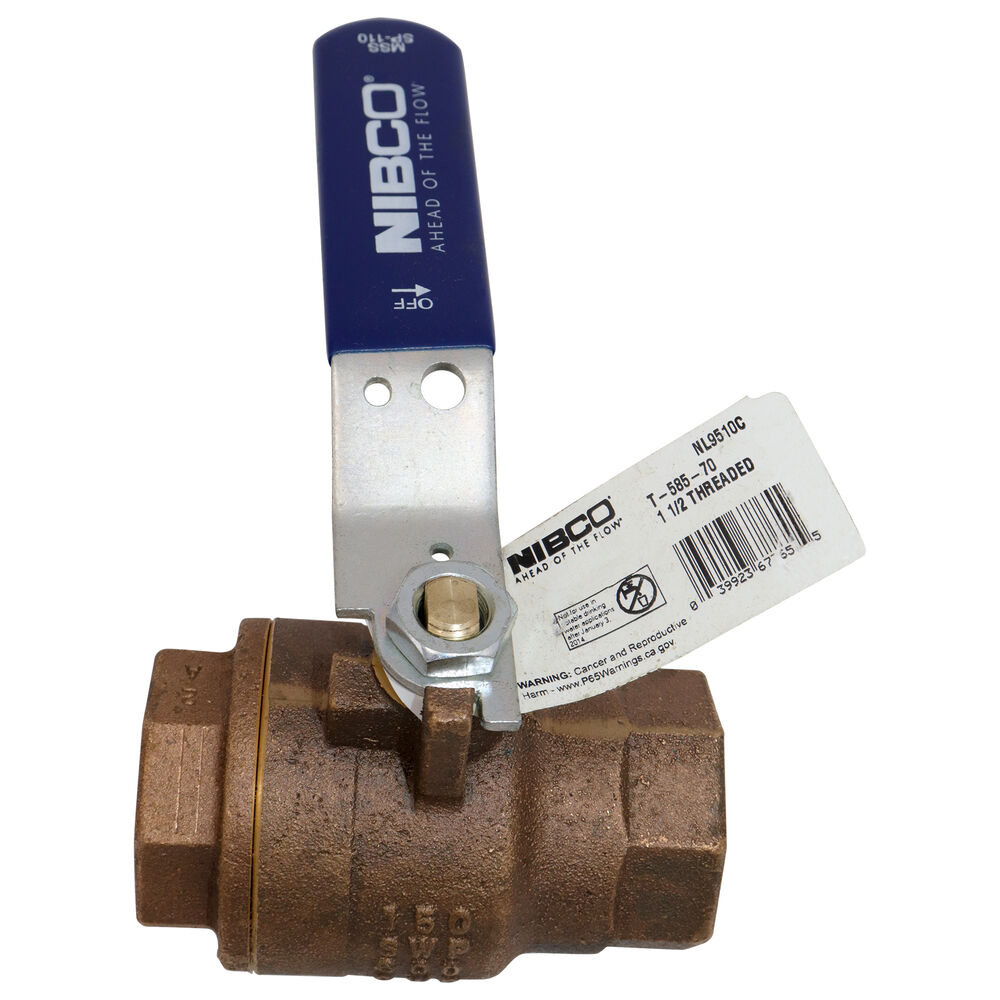

NIBCO® Ball Valve, 2-Piece, Series: T-585-70, 1-1/2 in Nominal, NPT End Style, 600 psi Pressure, 400 deg F, Full Port, Media: Air/Gas/Water, 1-1/2 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 4.72 in Inlet to Outlet Length, 3.16 in Top to Inlet Center, Cast Red Bronze Body, Silicon Bronze Stem Trim, PTFE Softgoods, Domestic
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Dezincification resistant
- PTFE seat ring/packing
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Standard lever handle, optional NIB-SEAL®
- Body MaterialCast Red BronzeDomestic / ImportDomesticEnd StyleNPTNominal Size1-1/2 inPort TypeFullSoftgoods MaterialPTFEActuator TypeStandard LeverBall MaterialChrome Plated BrassInlet to Outlet Length4.72ManufacturerNIBCO Inc.Manufacturer #NL9510CMediaAir/Gas/WaterOrifice Size1-1/2Pressure Rating600 psiSeriesT-585-70Temperature Rating400 deg FTop to Inlet Center3.16Trim MaterialSilicon Bronze StemType2-Piece
