- MODA™ Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA™ Supply Box System is the ultimate solution for speed and flexibility.
Oatey® MODA™ 1-Valve Supply Box System, For Use With: Ice Maker, Male C Connection, PVC, 8 in W x 3.38 in D x 4.85 in H
- Using a single box platform provides significant convenience to installers
- One universal faceplate is compatible with all box types
- All boxes can snap to one another and common brackets can be used on any MODA™ supply box
- Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations
- Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job
- Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers
- Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms
- Plumber-preferred, quarter turn test plug with gasket provided with every drain box
- This means no knock outs falling into drains and no tools required
- Oatey® exclusive feature
- Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe
- Two piece valve design makes valve replacement easy to repair, without damaging drywall
- Valves rated to 150 psi air and 250 psi water
- Forged brass C46500 no lead ( chrome plated )
- Stainless steel valve retention clip

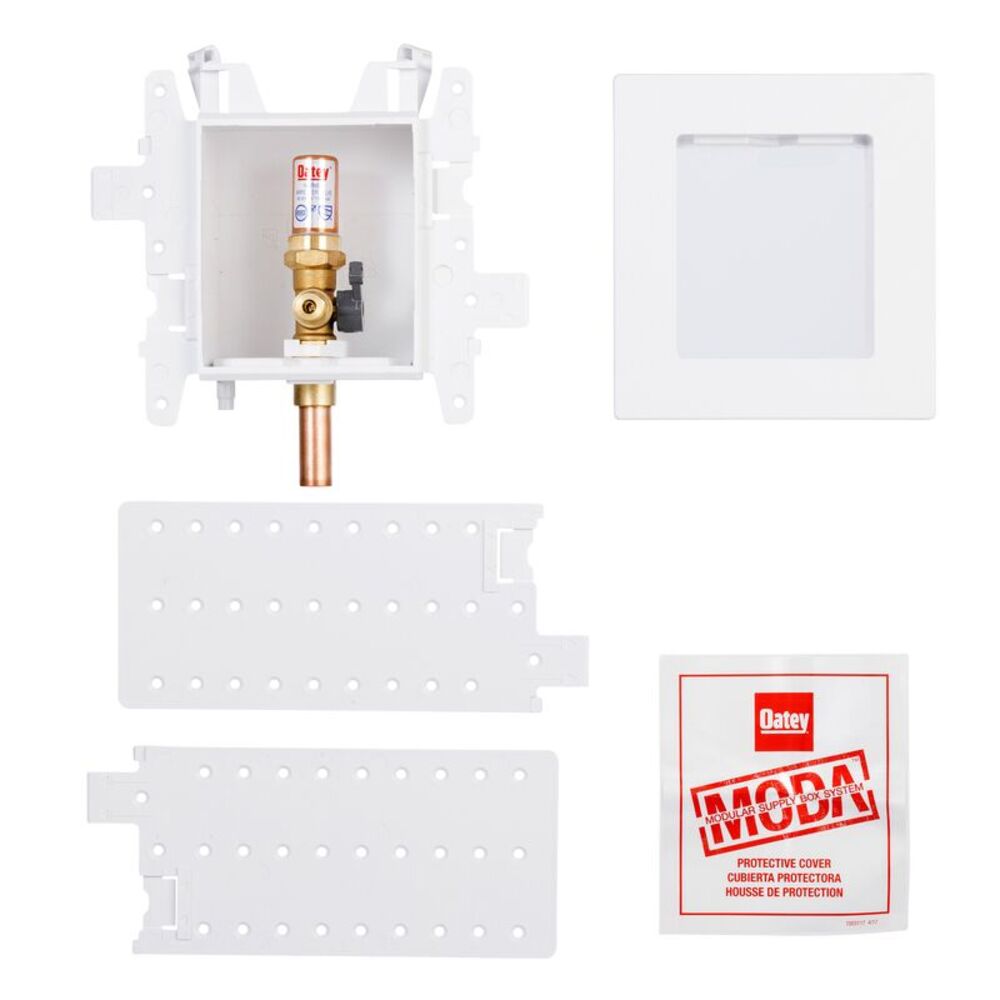

- (2) 8 in L x 4 in W Side Brackets, Sticker Cover and 6 in W x 1.25 in D x 6.45 in H Faceplate
- MaterialPVCSpecificationsMale C ConnectionSuitable For Use WithIce MakerDimensions8 in W x 3.38 in D x 4.85 in HManufacturerOATEYManufacturer #37687
