- Oatey® commercial drains are designed to stand up to heavy traffic areas. Preformed anchor positions are included in each base design and drain barrels include internal thread that accepts clean-out plugs. Four grate finishes are available: Stainless Steel, Nickel, Chrome and Brass.

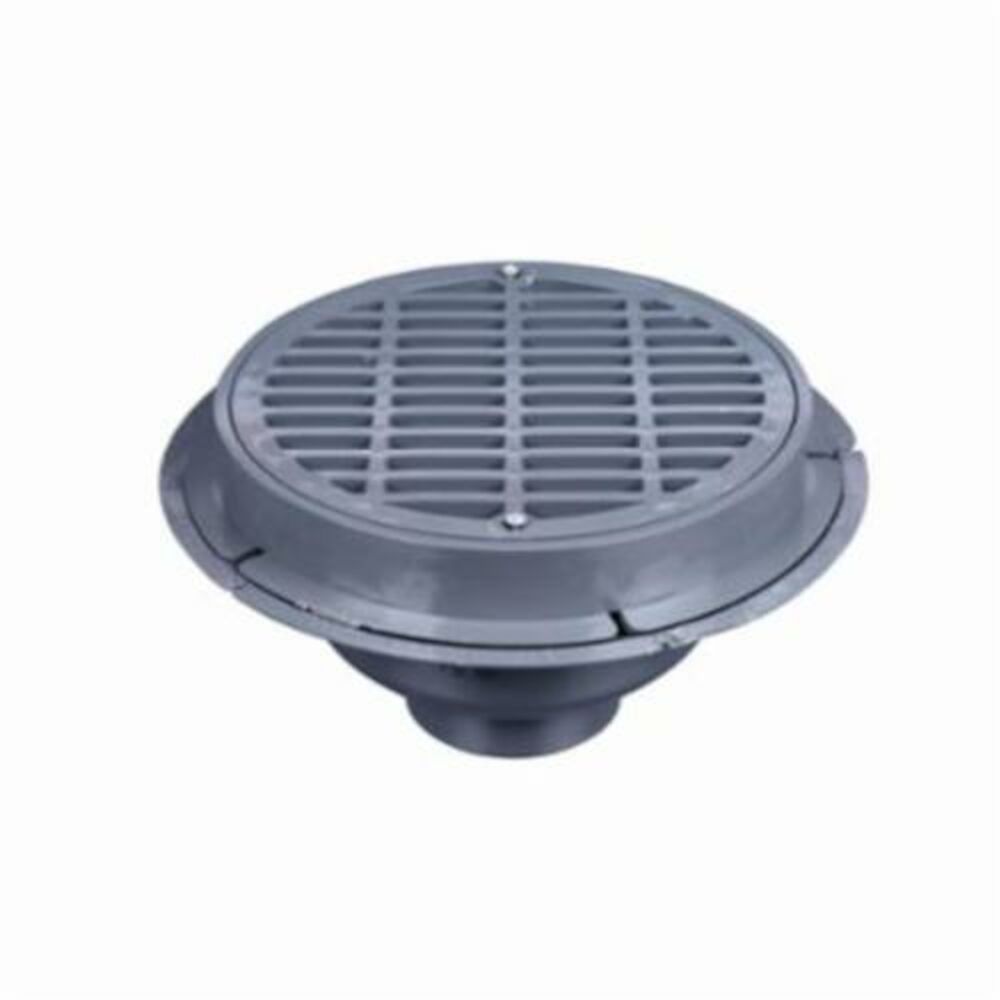

Oatey® Sediment Drain, Light Duty, Series: 76000, 4 in Outlet, PVC Drain, Plastic Grid, 12 in OAW
- Commercial grade multipurpose drain for effective effluent removal in any application, optional removable sediment bucket will keep drain lines free of all debris, available with cast iron and PVC grate assemblies
- 3-1/2 in Dia IPS thread barrel
- 1/2 in FIP thread primer tap knock-out
- 32-1/2 sq-in grate open area
- Safe live load under 2000 lb
- Oatey® PVC Drains offer superior drainage and robust debris protection with a dome freeflow area of more than 200 sq-in
- Drain MaterialPVCGrid MaterialPlasticDimensions12 in OAWManufacturerOATEYManufacturer #76024Outlet Size4Series76000TypeLight Duty
