Smith-Blair

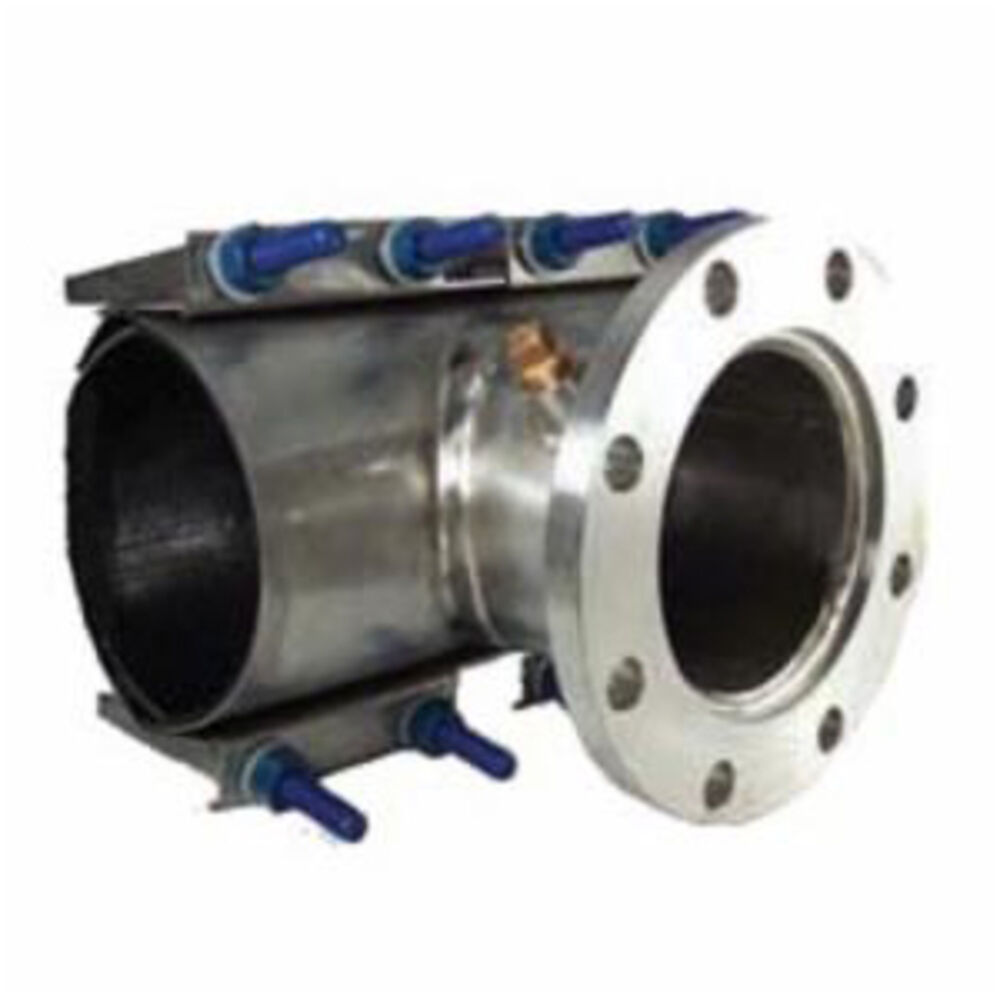

663-132006MJ-000 Tapping Sleeve, 12 x 6" Nominal, Mechanical Joint Connection, 18-8 304 Stainless Steel Clamp, Flexi-Coat® Fusion Bonded Epoxy Coated
Sign In to View Pricing & Availability
- Smith-Blair Tapping Sleeves consist of two sections of heavy welded steel that bolt together on the pipe and seal against a concave wedge gasket around the tap opening. The outlet half has a recessed flat-faced flange to mate with standard tapping valves MSS SP 60 up through 12 in size-on-size. For tap sizes 14 in and above, flanges can be furnished to accommodate the valve requirements.
Smith-Blair Tapping Sleeve, Series: 663, 12 x 6" Nominal, Mechanical Joint, 240 psi, 180 deg F, 5/8-11 UNC x 6" L Bolt, 18-8 304 Stainless Steel Bolt, 18-8 304 Stainless Steel Clamp, Buna-N Gasket, 15" L, Flexi-Coat® Fusion Bonded Epoxy Coated
- Easy to install
- Range helps reduce inventory
- Molded-in ring in the gasket to ensure effective sealing
- Nylon washers are provided to improve bolt torque capability
- Heavy gauge, all stainless steel body for rugged performance
- Fully chemically passivated for maximum corrosion protection
- 3/4 in test outlet to allow hydrostatic pressure test before tapping the pipe
- 360 deg seal provides maximum support and reinforcement around the pipe in case of pipe break
- Body drawn out to accept the outlet neck adding to the overall strength of the area under the most stress
- 13.16 to 13.56 in OD sleeve
- The MJ outlet allows the user to tap pipe, utilizing a standard MJ x MJ valve in lieu of a specialty tapping valve
- This outlet allows the user to combine valve inventory to a single valve, reduce installation time and save money
- The heavy mechanical joint flange is fixed in place to make installation easier, while reducing the chance of injuries during the tapping operation
- FinishFlexi-Coat® Fusion Bonded Epoxy CoatedManufacturerSMITH BLAIR INCManufacturer #663-132006MJ-000Material304 Stainless SteelPressure Rating240 psiSeries663
