- Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new SCH 80/XH Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.

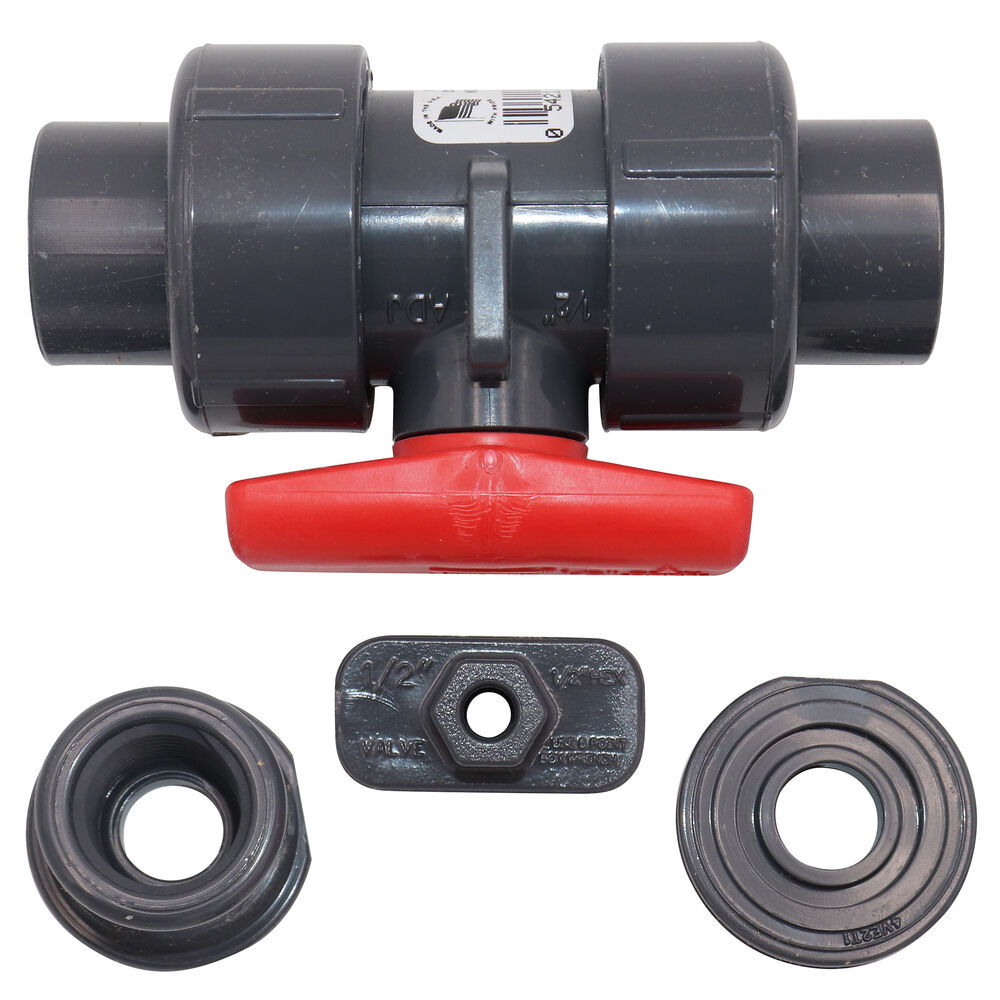

Spears® Ball Valve, Standard, Series: True Union 2000, 1/2 in Nominal, Socket and FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 4-3/16 in Inlet to Outlet Length, 1-5/8 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM Softgoods, Gray, Domestic
- Spears® Safe-T-Shear® stem
- Self adjusting floating seat
- EPDM NSF® certified for potable water use
- High quality standard ball valve
- Replaceable seats
- Allows future system upgrade
- EPDM O-ring
- Body MaterialPVCDomestic / ImportDomesticEnd StyleSocket and FNPTNominal Size1/2 inSoftgoods MaterialEPDMActuator TypeT-HandleBall MaterialPVCColorGrayInlet to Outlet Length4-3/16ManufacturerSpears ManufacturingManufacturer #3629-005Pressure Rating235 psiSeriesTrue Union 2000Temperature Rating140 deg FTop to Inlet Center1-5/8Trim MaterialPVC Stem and PTFE SeatTypeStandard
