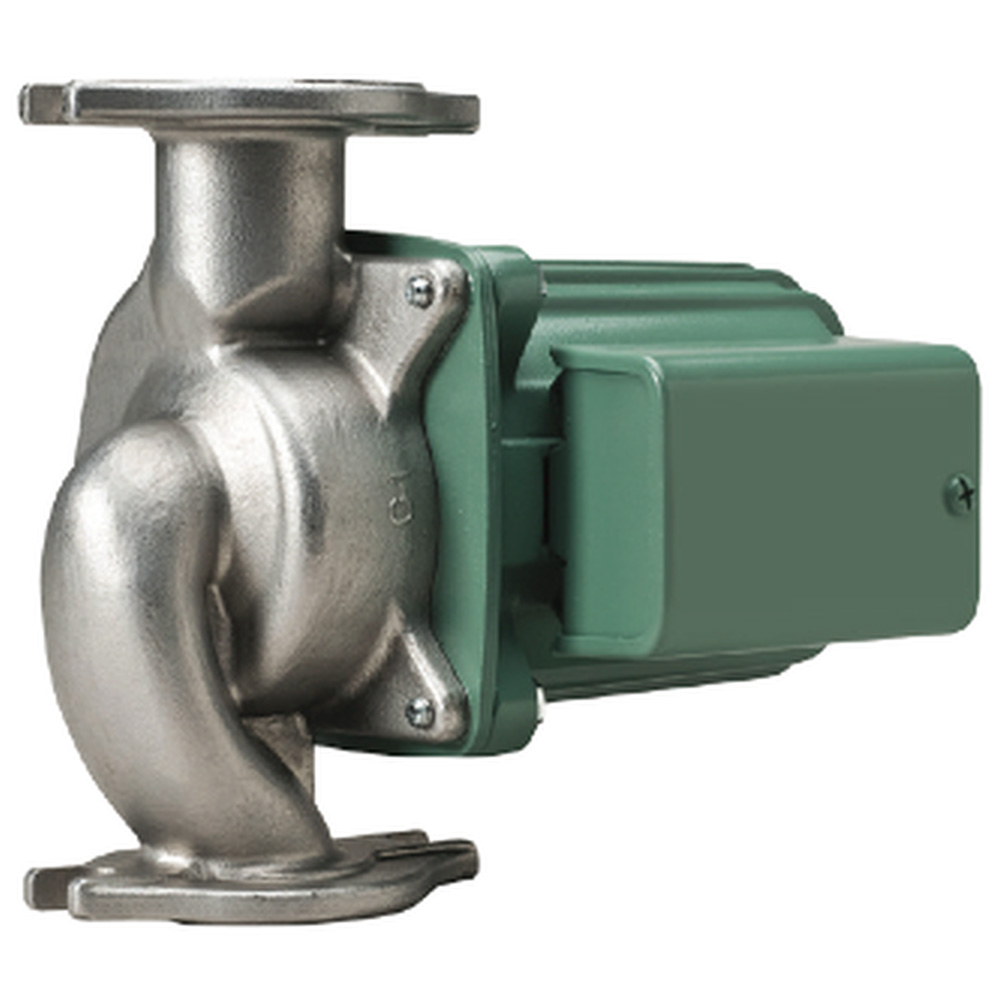

0010-SF3 Circulator Pump, Stainless Steel, 1/8HP, Standard Flange

TAC0010SF3 MFG #: 0010-SF3
  • Voltage Rating: 115 VAC
  • Amperage: 1.17 A
  • Connection Type: Standard Flange
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 0010-SF3
  • Max Head: 10 ft
  • Speed: 3250 rpm
  • Temperature Rating: 230 deg F
The Taco 0010 is designed for a wide range of large residential/light commercial water circulating applications. Typical uses include hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and potable hot water systems. The Bronze or Stainless Steel 0010 is designed for all open-loop, fresh water systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.

  • Features
  • Standard high capacity output - Compact design
  • Quiet, efficient operation
  • Direct drive - Low power consumption
  • Unique Replaceable Cartridge design
  • Self Lubricating
  • No mechanical seal
  • Unmatched reliability - Maintenance free
  • Universal flange to flange dimensions
