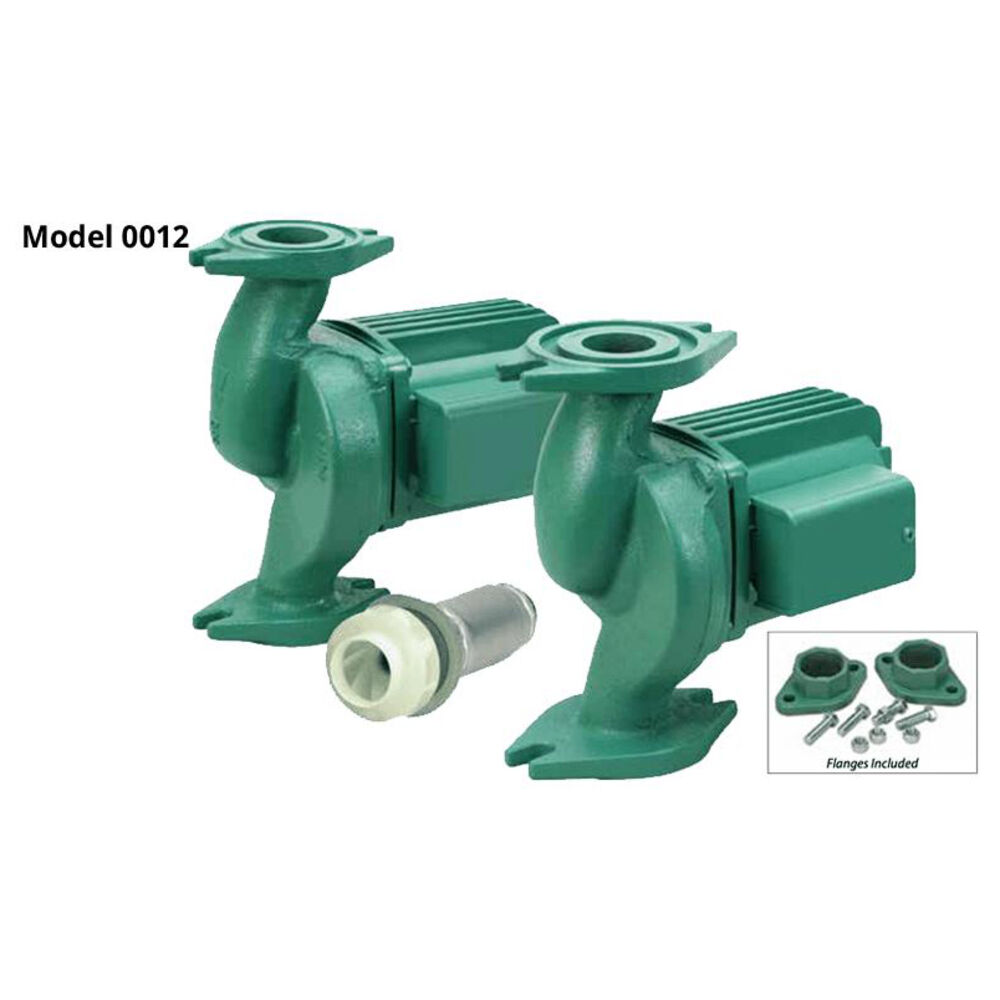

- The Taco 0012 is specifically designed for high flow/medium head applications in large residential and light commercial systems. Ideal for large BTUH Boilers, 2 in recirculation loops, Primary/Secondary loops, commercial water heaters and light commercial heating and cooling systems. The Stainless Steel 0012 can be used on open loop systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. Universal flange to flange dimensions and orientation allows the 0012 to easily replace other models. Compact, low power consumption design makes it ideal for high-efficiency jobs. The 0012-F4 is a direct replacement for the HV Series and the 0012-F4-1 is a direct replacement for the 2 in Series using existing flanges.
Taco®, 0012-SF4, Cartridge Circulator Pump, Stainless Steel, Series: 00, 52 gpm Flow Rate, 1-1/2" Inlet, 1-1/2" Outlet, 14.5 ft Maximum Head, 1/8 hp Power, 115 V, 1.33 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 8-1/2" H x 5-1/2" W x 8-5/8" D Dimensions
- Exclusive ACB Anti-Condensate Baffle with Ambient Air Flow-Protects Motor Windings against Condensate Buildup
- High Velocity Performance-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Flow Rate52 gpmInlet Size1-1/2 inMaterialStainless SteelOutlet Size1-1/2 inVoltage Rating115 VBearing TypeCarbonDimensions8-1/2 in H x 5-1/2 in W x 8-5/8 in DFrequency Rating60 HzImpeller TypeNon-MetallicManufacturerTACOManufacturer #0012-SF4Maximum Head14.5 ftMaximum Pressure150 psiMotor HP1/8 HPMotor Speed3250 rpmMounting TypeflangePhase1Series00Temperature Rating40 to 230 deg F
