Taco®

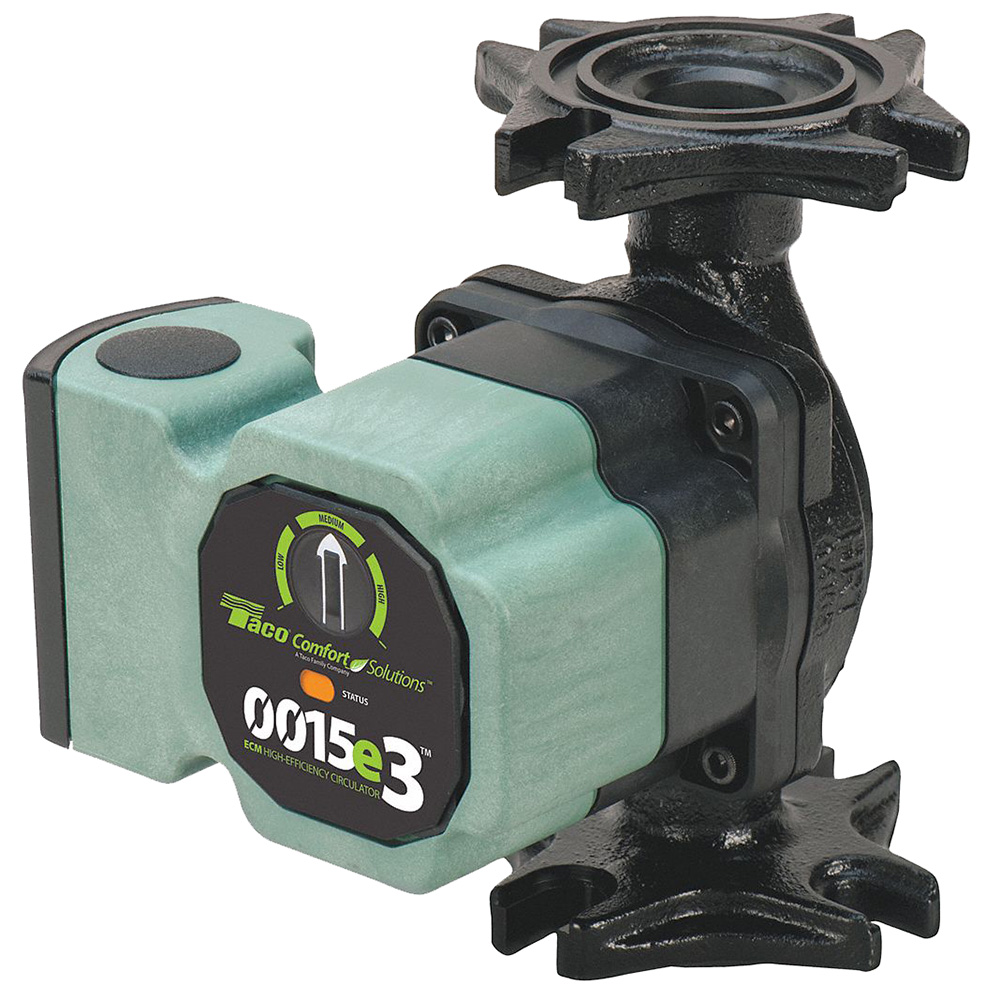

0015e3™ - Variable Speed ECM Circulator Pump, 3 Speed, Cast Iron, Standard Flange

TAC0015E32F4 MFG #: 0015E3-2F4
0015e3™ - Variable Speed ECM Circulator Pump, 3 Speed, Cast Iron, Standard Flange
  • Flow Rate: 16 gpm
  • Amperage Rating: 0.54
  • Frequency Rating: 60 Hz
  • Height: 6-3/8 in
  • Manufacturer #: 0015E3-2F4
  • Material: Cast Iron
  • Maximum Head: 18 ft
  • Maximum Pressure: 125 psi
  • Motor Speed: 4830 rpm
  • Phases: 1
  • Pressure Rating: 125 psi
  • Series: 00 Series
  • Temperature Rating: 230 degF
  • Width: 5 in
Taco 0015e3™is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It’s ideal for hydronic systems zoned with circulators or zone valves. With 3 easy settings, the 0015e3 delivers performance, reliability and ease of installation that made the 00® famous.

0015E3-2F4 3 SPD CIRC /ECM MTR 4 BLT
  • Features
  • Replaces ALL 3-speed hydronic circulators in its class
  • 3 easy settings. Install it, forget it.™
  • BIO Barrier® protects pump from system contaminants
  • SureStart ™ automatic unblocking and air purging mode
  • High-efficiency ECM motor uses up to 85% less electricity
  • Integral Flow Check (IFC®) included
  • 3 easy settings: LOW (5 feet head), MEDIUM (10 feet head), HIGH (18 feet head), 16 gpm max flow
  • Dual electrical knockouts, 6” stranded wire leads included for easy wiring
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
  • Double insulated. No ground wire required
  • Whisper quiet operation
