- The 0015e3 is a variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Its ECM performance is equivalent to the Taco 0015 3-Speed circulator. It is ideal for hydronic systems zoned with circulators or zone valves or used on potable water systems for domestic water recirculation. The 0015e3 is not suitable for chilled water systems.

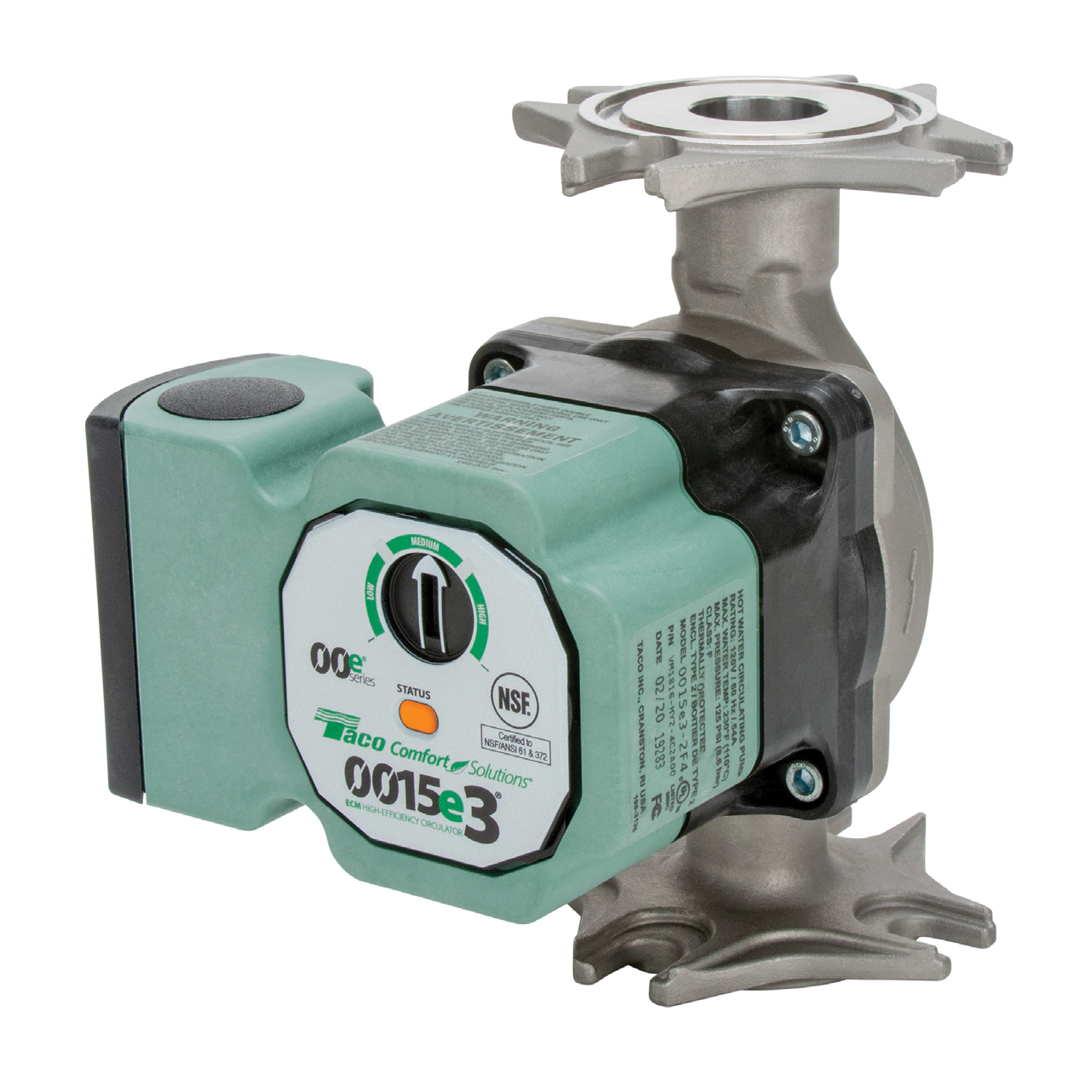

Taco®, 0015e3-SF4, Variable Speed Circulator, Stainless Steel, Series: 00e, 16 gpm Flow Rate, 1-1/2, 3/4, 1, 1-1/4 in Inlet, 1-1/2, 3/4, 1, 1-1/4 in Outlet, 18 ft Maximum Head, 115 V, 0.54 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 1590 to 4830 rpm Motor, 150 psi Case, Composite Impeller, Universal Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6 in W x 6 in D Dimensions
- Replaces all 3-speed hydronic circulators in its class
- High-efficiency ECM motor uses up to 85% less electricity
- SureStart® automatic unblocking and air purging mode
- Green Mode active system monitoring and automatic power optimization
- Nut-grabber feature on flanges for easier fit-up
- Double insulated - No ground wire required
- Whisper quiet operation
- Integral Flow Check (IFC®) included
- Double insulated — No ground wire required
- Whisper quiet operation
- Integral Flow Check (IFC)
- Flow Rate16 gpmInlet Size1-1/2, 3/4, 1, 1-1/4 inOutlet Size1-1/2, 3/4, 1, 1-1/4 inVoltage Rating115 V, 120 VACAmperage Rating0.54 ABearing TypeCarbonCase Pressure Rating150 psiDimensions6-3/8 in H x 6 in W x 6 in DFrequency Rating60 HzImpeller TypeCompositeManufacturerTACOManufacturer #0015E3-SF4Maximum Head18 ftMaximum Pressure150 psiMotor Speed1590 to 4830 rpmMounting TypeUniversal FlangePhase1 PhSeries00eTemperature Rating40 to 230 deg FTypeStainless Steel
