- The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today's hydronic heating systems.Its 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed.The 0015 delivers the highest starting torque in its class and includes a removable,uni-body Integral Flow Check (IFC®) that prevents gravity flow, reduces installation costs and improves pump performance. The Stainless Steel 0015 should be used on open, fresh water systems and replaces Grundfos UPS 15-35FC & 15-55FC

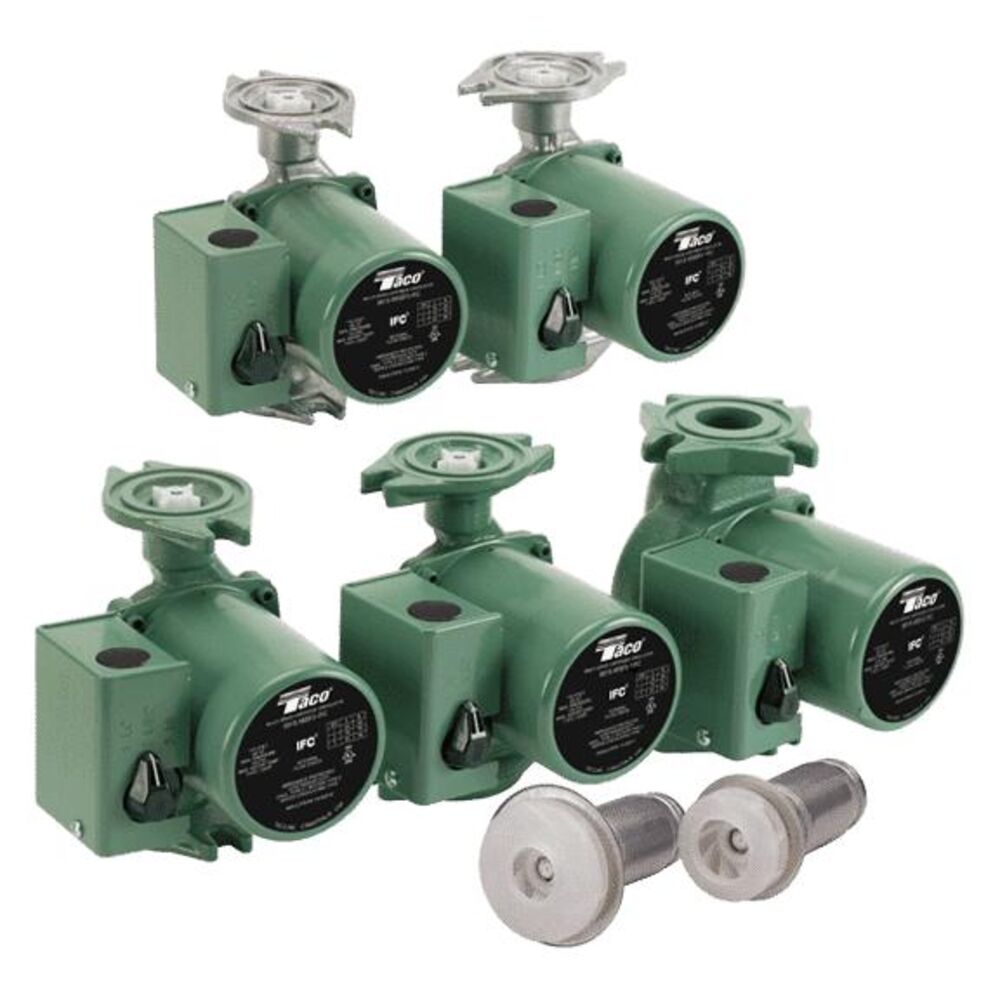

Taco®, 0015-MSF3-1IFC, Circulator with Integral Flow Check, 3 Speed Cast Iron, Series: 00, 0 to 18 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 17 ft Maximum Head, 1/20 hp Power, 115 V, 0.54 to 0.85 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, Green, 6-3/8 in H x 6 in W x 6 in L x 5-3/8 in D Dimensions
- Reduces installation costs
- Quiet, efficient operation
- Prevents gravity flow
- Removable high-flow Integral Flow Check
- Highest performance & starting torque in class
- 3-Speed Switch
- Wide range of applications
- Drop-in replacement for most commonly used residential circulators
- Heavy duty construction for longer life
- Self-lubricating and No mechanical seal
- Fine tune to system requirements
- Improves pump performance
- Rotated flange orientation
- Unique, replaceable cartridge is field serviceable
- Integral flow check
- Flow Rate0 to 18 gpmInlet Size3/4, 1, 1-1/4, 1-1/2 inMaterialCast IronOutlet Size3/4, 1, 1-1/4, 1-1/2 inVoltage Rating115 VBearing TypeCarbonColorGreenDimensions6-3/8 in H x 6 in W x 6 in L x 5-3/8 in DFrequency Rating60 HzImpeller TypeNon-MetallicManufacturerTACOManufacturer #0015-MSF3-1IFCMaximum Head17 ftMaximum Pressure125 psiMotor HP1/20 HPMotor Speed3250 rpmMounting TypeflangePhase1Series00Temperature Rating40 to 230 deg FType3 Speed
