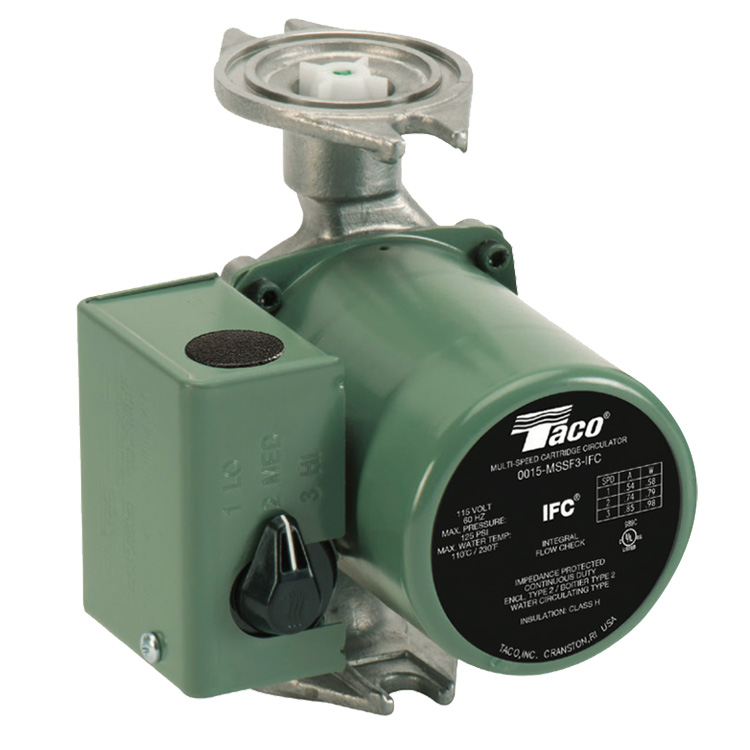

0015-MSSF3-IFC 0015 3-Speed Stainless Steel Circulator - IFC, Standard Flange

TAC0015MSSF3IFC MFG #: 0015-MSSF3-IFC
  • Flow Rate: 18 gpm
  • Voltage Rating: 115V
  • Amperage: .85
  • Connection Size: 3/4, 1, 1-1/4, 1-1/2 in
  • Connection Type: Standard Flange
  • Dimensions: 6-3/8 in H x 6-1/2 in W x 5-3/8 in D
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 0015-MSSF3-IFC
  • Material: Stainless Steel
  • Max Head: 21 ft
  • Phase: 1
  • Pressure Rating: 125 psi
  • Series: 0015
  • Speed: 3250 rpm
  • Temperature Rating: 230 degF
  • Valve / Cartridge Type: Stainless Steel
The 0015 3-Speed pump is specifically designed for the wide range of flow and head requirements of today’s hydronic heating systems. Its’ 3-Speed switching capability provides fine tuning control to match a wide combination of tube diameters and length of runs. The 0015 3-Speed is a direct replacement for the Grundfos UPS 15-58 3-Speed. The 0015 delivers the highest starting torque in its class and includes a removable, uni-body Integral Flow Check (IFC® ) that prevents gravity flow, reduces installation costs and improves pump performance. The Stainless Steel 0015 should be used on open, fresh water systems and replaces Grundfos UPS 15-35FC & 15-55FC.

  • Features
  • 3-Speed Switch
  • Fine tune to system requirements
  • Highest performance & starting torque in class
  • Heavy duty construction for longer life
  • Removable high-flow Integral Flow Check (IFC®)
  • Replaceable cartridge design
  • Quiet, efficient operation
  • Self lubricating, no mechanical seal
  • Wide range of applications
