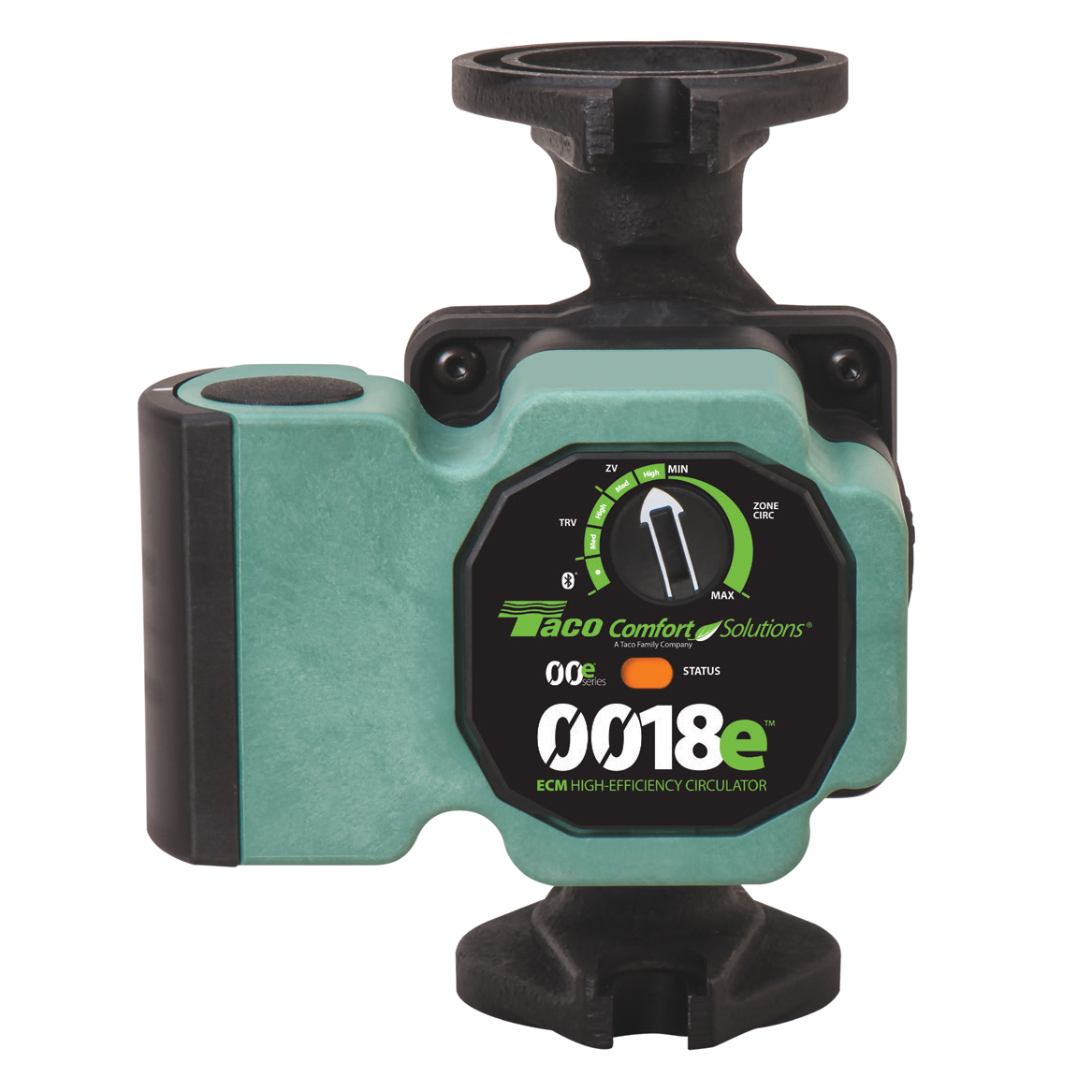

0018E-2F4 ECM High-Efficiency Circulator Featuring Bluetooth® Communication, 2-Way Flange, Cast Iron

TAC0018E2F4 MFG #: 0018E-2F4
  • Flow Rate: 16 gpm
  • Voltage Rating: 120 V
  • Connection Type: Universal 2-Way Flange
  • Dimensions: 6 in x 6-3/8 in x 5 in
  • Energy Rating: 152 to 188
  • Manufacturer: TACO
  • Manufacturer #: 0018E-2F4
  • Material: Cast Iron
  • Phase: 1
  • Pressure Rating: Max 125 psi
  • Series: 00e
  • Temperature Rating: 36 to 230 deg F
  • Type: High Efficiency
  • Valve / Cartridge Type: Composite
The 00e® series - 0018e featuring Bluetooth® is a versatile, variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor ideal for closed loop hydronic heating, open loop or domestic water applications. Download the Taco 0018e Mobile App to see and control real-time system performance. Run system operation & validation reports including performance diagnostics & history. Know the most efficient setting based on real-time feedback and alleviate the problems of over-pumping. You design systems with precision. The 0018e offers the performance & control to match.

  • Features
  • Includes
  • 3 operating modes in dial activation
  • 4 operating modes in 0018e ™ Mobile App activation
  • Multi-color LED display showing operating mode and error code diagnostics
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
  • Nut capture feature on flanges for easier fit up
  • Dual electrical knockouts and 6" stranded wire leads for easy wiring
  • Double insulated - no ground-wire required
  • Whisper quiet operation
  • BIO Barrier® protects the pump from system contaminants
  • SureStart® - automatic unblocking and air purging mode
  • Optional 2-way flange model for easy fit-up to any flange orientation
  • Integral Flow Check (IFC®) included Field installed
Integral Flow Check (IFC®)
