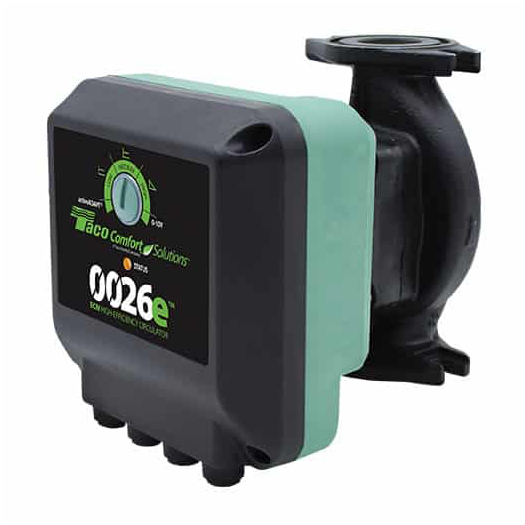

0026E-F2 ECM High-Efficiency Wet Rotator Circulation Pump, Cast Iron, Rotated Flange

TAC0026EF2 MFG #: 0026E-F2
  • Flow Rate: 44 gpm
  • Voltage Rating: 115 VAC
  • Amperage: 1.05 A
  • Connection Type: Rotated Flange
  • Dimensions: 7.05 in H x 8.05 in W x 6.22 in D
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 0026E-F2
  • Material: Cast Iron
  • Max Head: 26 ft
  • Phase: 1
  • Pressure Rating: 150 psi
  • Series: 0026e
  • Speed: 3800 rpm
  • Temperature Rating: 230 deg F
The 0026e™ is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed, 0013, 0013 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems.
The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm.

  • Features
  • 5 easy dial settings to match system requirements
  • BIO Barrier® protects the pump from system contaminants
  • SureStart® automatic unblocking and air purging mode
  • Replaces all single speed and 3-speed circulators in its class
  • Multi-color LED: power on, mode setting and error code diagnostics
  • Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
  • Nut-grabber feature on flanges for easier fit up
  • Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
  • Whisper quiet operation
  • Rotatable control cover to simplify installation
