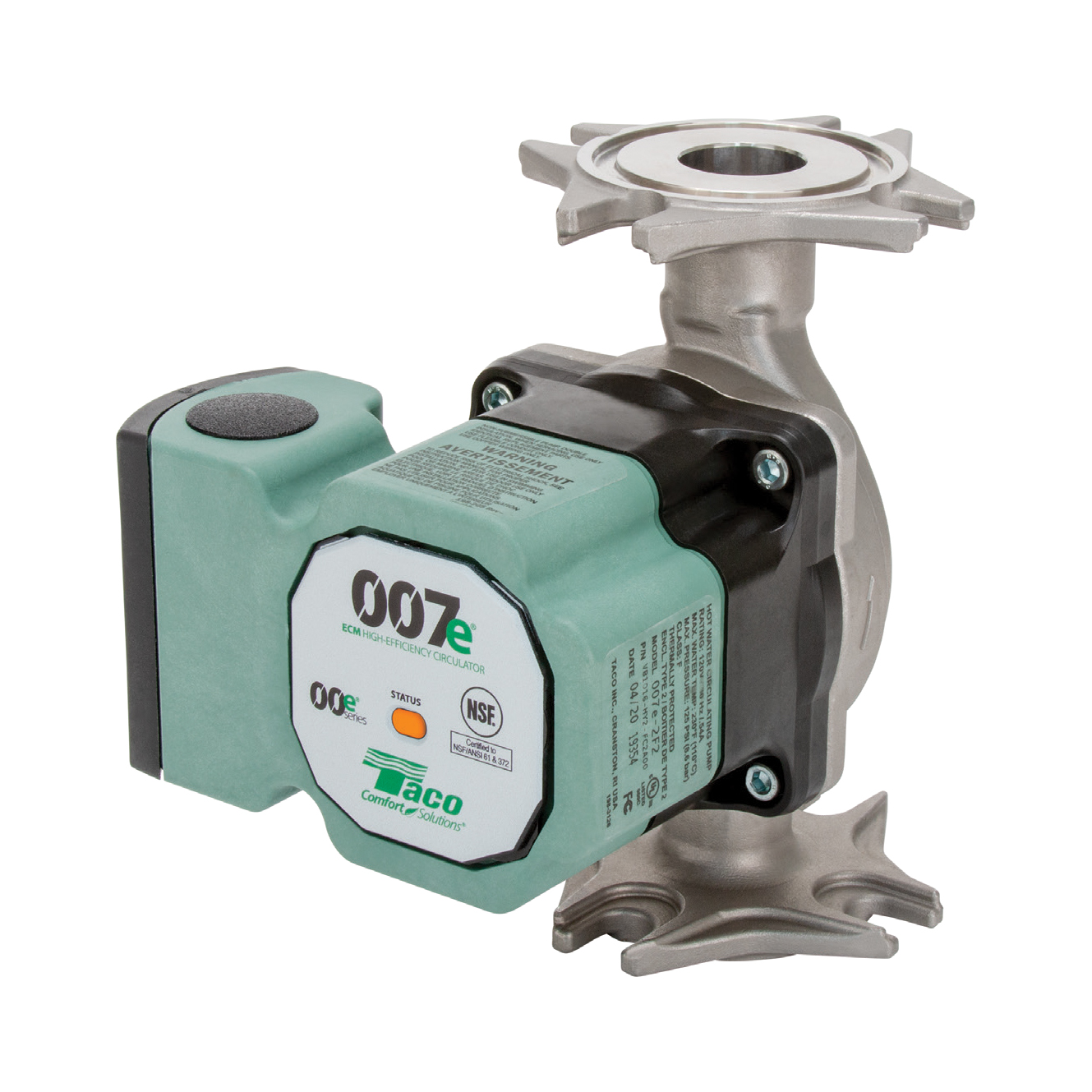

007E-SF4 007e® ECM High-Efficiency Circulator, 2-Way Flange, Stainless Steel

TAC007ESF4 MFG #: 007e-SF4
  • Flow Rate: 16 gpm
  • Voltage Rating: 120 V
  • Connection Type: Universal 2-Way Flange
  • Dimensions: 6 in x 6-3/8 in x 5 in
  • Energy Rating: 168 to 187
  • Manufacturer: TACO
  • Manufacturer #: 007e-SF4
  • Material: Stainless Steel
  • Phase: 1
  • Pressure Rating: Max 150 psi
  • Series: 00e
  • Temperature Rating: 36 to 230 deg F
  • Type: High Efficiency
  • Valve / Cartridge Type: Composite
The 007e® stainless steel is a variable speed, high-efficiency wet rotor circulator with ECM permanent magnet technology. Its ECM performance is equivalent to the legendary 007 and is ideal for open loop potable hot water systems with up to 500 feet of recirculation piping. It reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators.

  • Features
  • Includes
  • ECM performance equivalent to Taco’s legendary 007 circulator
  • Use with Taco SmartPlug Instant Hot Water Control® for hot water when you need it
  • Multi-color LED showing operating mode and error code diagnostics
  • 4-bolt universal flange or 1” Union connection, stainless steel casing
  • Dual electrical knockouts and 6” stranded wire leads for easy wiring
  • Double insulated - no ground-wire required
  • Integral Flow Check (IFC®) included - Field installed
  • Whisper quiet operation
  • SureStart® - automatic unblocking and air purging mode
  • Green Mode active system monitoring and power optimization
Integral Flow Check (IFC®)
