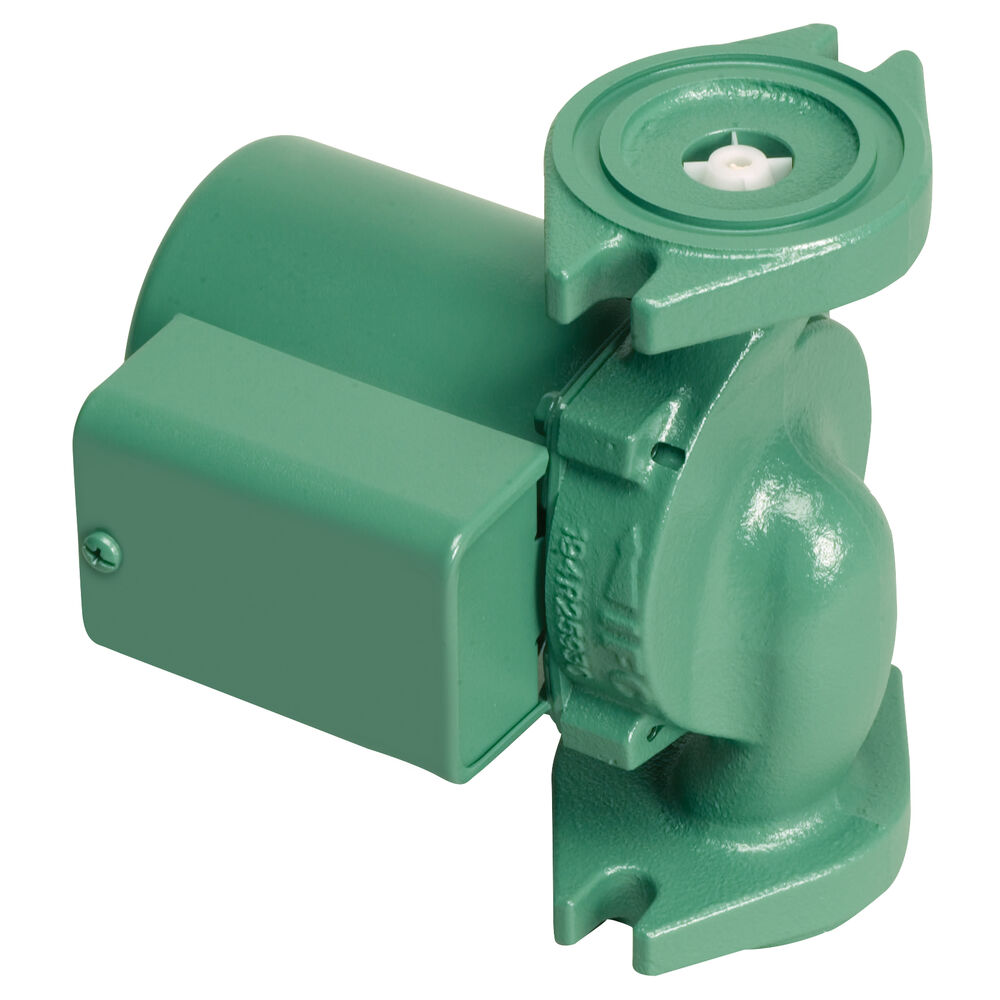

- Taco®, 008-F6-3IFC, Cartridge Circulator, Cast Iron, Series: 00, 0 to 12.5 gpm Flow Rate, 3/4, 1, 1-1/4, 1-1/2 in Inlet, 15 ft Maximum Head, 1/25 hp Power, 115 V, 0.79 A, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 5-5/16 in W x 5 in D Dimensions, Domestic
- Standard High Capacity Output-Compact Design
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-Field Serviceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
- Domestic / ImportDomesticFlow Rate0 to 12.5 gpmInlet Size3/4, 1, 1-1/4, 1-1/2 inMaterialCast IronVoltage Rating115 VBearing TypeCarbonDimensions6-3/8 in H x 5-5/16 in W x 5 in DFrequency Rating60 HzImpeller TypeNon-MetallicManufacturerTACOManufacturer #008-F6-3IFCMaximum Head15 ftMaximum Pressure125 psiMotor HP1/25 hpMotor Speed3250 rpmMounting TypeflangePhase1Series00Temperature Rating40 to 230 deg F
