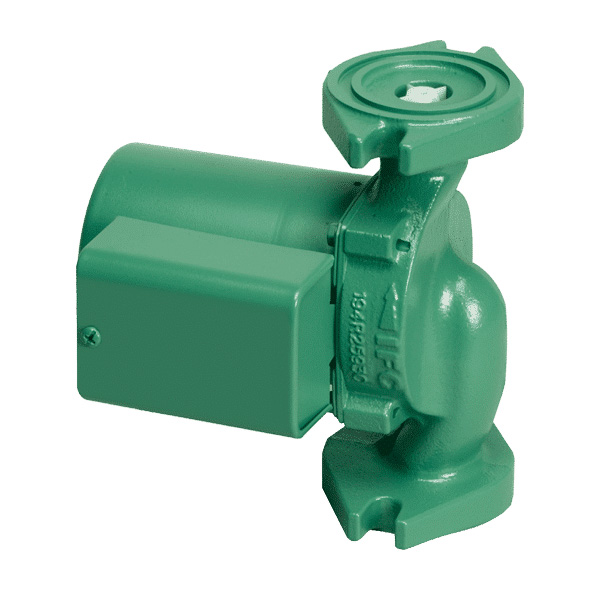

00R-F6-4IFC Radiant Heating Circulator Pump With IFC, Cast Iron, Rotated Flanges, 1/25 HP

TAC00RF64IFC MFG #: 00R-F6-4IFC
  • Flow Rate: 12.5 gpm
  • Voltage Rating: 115V
  • Amperage: .79
  • Connection Size: 3/4, 1, 1-1/4, 1-1/2 in
  • Connection Type: Rotated Flange
  • Dimensions: 6-3/8 in H x 5-15/16 in W x 5 in D
  • Frequency Rating: 60 Hz
  • Manufacturer: TACO
  • Manufacturer #: 00R-F6-4IFC
  • Material: Cast Iron
  • Max Head: 15 ft
  • Phase: 1
  • Pressure Rating: 125 psi
  • Series: 00R-IFC
  • Speed: 3250 rpm
  • Temperature Rating: 230 degF
The 00R-IFC Radiant Heating circulator with Integral Flow Check specifically fits the higher head and lower flow designs used in many Radiant Heating systems. The circulator's performance curve delivers flow that can be used in a wide combination of tube diameters and length of runs. The removable, spring loaded Integral Flow Check (IFC) prevents gravity flow/reverse flow. By locating the IFC inside the pump casing, a separate in-line flow check is eliminated, simplifying piping and reducing installation costs. It also makes for a modern, clean looking job when mounting the pump in vertical runs of pipe, pumping away from the boiler. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit.

  • Features
  • Specifically designed for radiant heating applications
  • Integral Flow Check
  • LED Indicator Light
  • Unique replaceable cartridge-field serviceable
  • Unmatched reliability maintenance free
  • Quiet, efficient operation
  • Self lubricating, no mechanical seal
