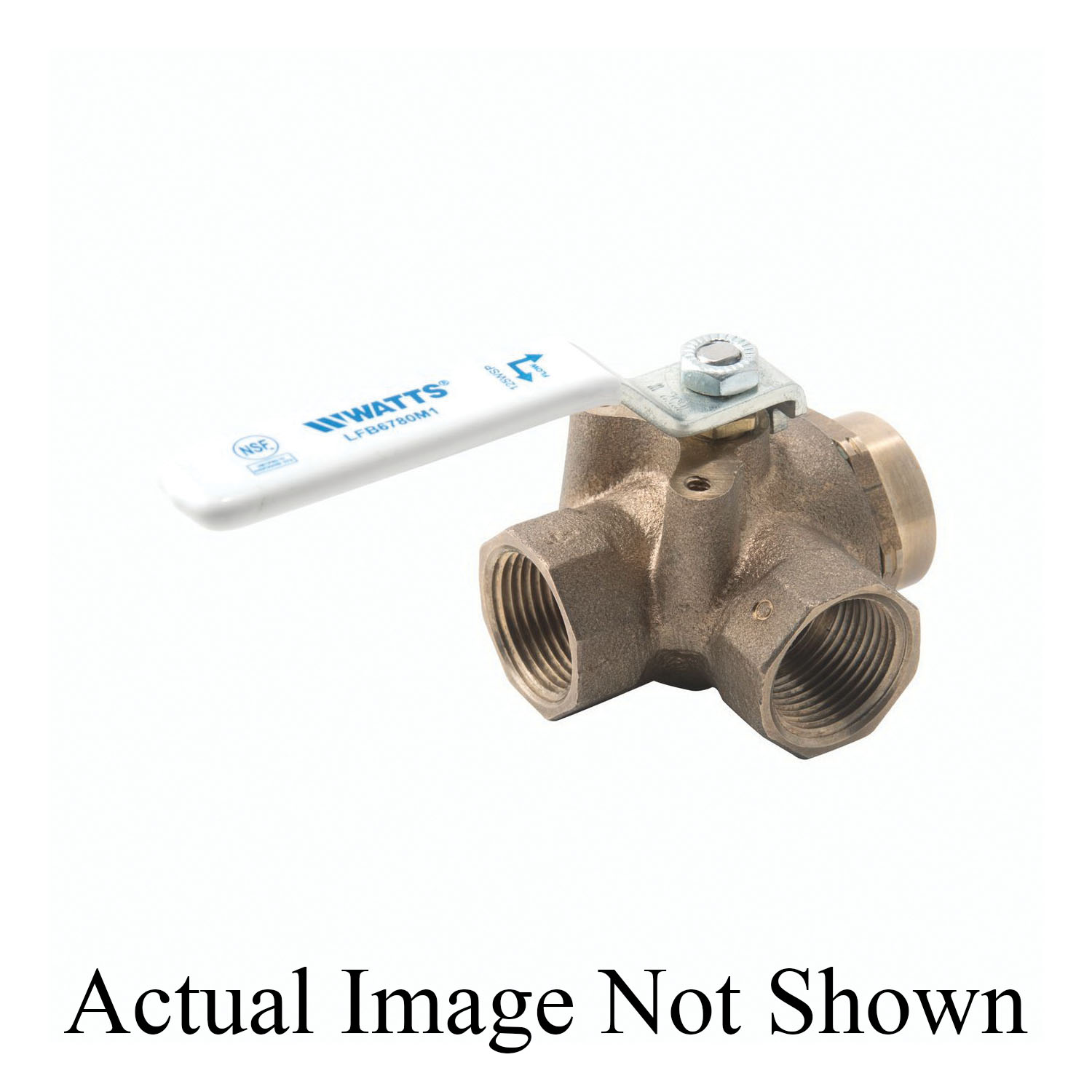

0123394 LFB6780M1, LFB6780M1 1/4 2-Piece Diverter Ball Valve, Copper Silicon Alloy Body

WATLFB6780M1B MFG #: 0123394
  • Body Material: Copper Silicon Alloy
  • Domestic / Import: Domestic
  • End Style: FNPT
  • Nominal Size: 1/4 in
  • Port Type: Full
  • Softgoods Material: PTFE
  • Actuator Type: Tee Handle
  • Ball Material: Stainless Steel
  • Flow Rate: 4.8 gpm
  • Inlet to Outlet Length: 2-9/32
  • Manufacturer: Watts Water Technologies
  • Manufacturer #: 0123394
  • Media: Liquid/Gas
  • Orifice Size: 1/2
  • Series: LFB6780M1
  • Temperature Rating: 0 to 350 degF
  • Top to Inlet Center: 1-5/8
  • Trim Material: Stainless Steel/PTFE
  • Type: 2-Piece
This 1/4 in lead free two-piece full port diverter ball valve with threaded end connections is used in commercial and industrial applications designed to divert a full range of liquids and gases. The full port orifice ensures minimal pressure drop, while PTFE seat and chrome plated lead free brass ball provide lasting service. The temperature range is 0 to 350 deg F WOG non-shock at 100 deg F WSP.

WATTS® Diverter Ball Valve, 2-Piece, Series: LFB6780M1, 1/4 in Nominal, FNPT, 400 psi WOG, 0 to 350 deg F, 4.8 gpm, Full Port, Media: Liquid/Gas, 1/2 in Orifice, Tee Handle Actuator, Stainless Steel Ball, 2-9/32 in Inlet to Outlet Length, 1-5/8 in Top to Inlet Center, Copper Silicon Alloy Body, Stainless Steel/PTFE Trim, PTFE, Domestic
  • Features
  • Blowout proof pressure retaining stem
  • Minimal pressure drop due to full size ports
  • Vinyl insulator on heavy duty zinc plated carbon steel handles
  • Low operating torque
  • Each valve factory tested
  • Virgin PTFE stem packing seal
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Stainless steel stem shaft/PTFE seat
