- Series LFIT6300, LFIS6301 2-Piece, Full Port, Ball and Waste Lead Free Copper Silicon Alloy Ball Valves feature a side drain port to drain or vent downstream line when the valve is in the off position. The LFIT6300, LFIS6301's full port orifice ensures maximum flow capacity and its ball is wiped clean during each operation of the valve. The LFIT6300, LFIS6301 features Lead Free construction to comply with Lead Free installation requirements.

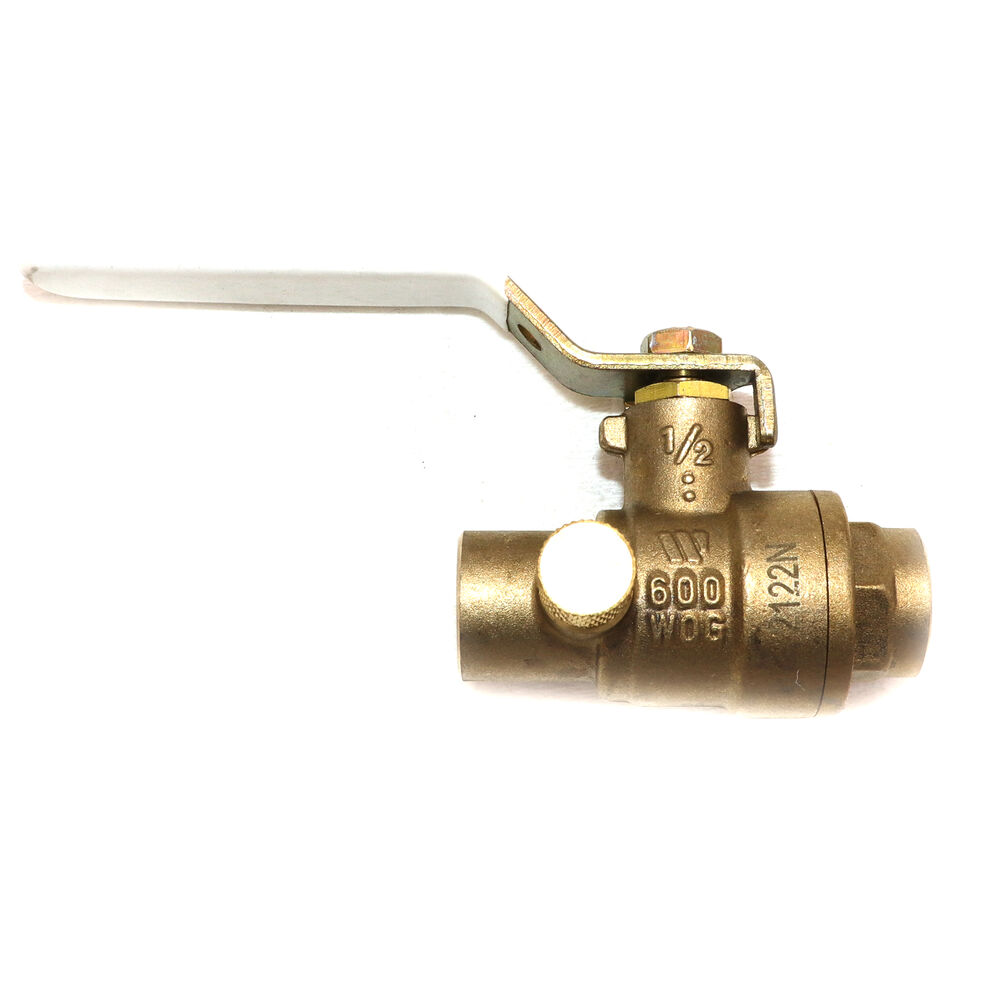

WATTS® Ball Valve, 2-Piece, 1/2 in Nominal, Solder, 600 psi, 0 to 350 deg F, Full Port, Media: Gas/Liquid, Copper Silicon Alloy Ball, 2-1/8 in Inlet to Outlet Length, 1-9/16 in Top to Inlet Center, Brass Body, Brass Stem Trim, PTFE/NBR Softgoods, Import
- Drain port allows draining or venting of downstream line when valve is in the off position
- Virgin PTFE valve seats are standard
- Ball is wiped clean during each operation of the valve
- Blow-out proof, pressure retaining stem
- Vinyl insulator on heavy duty handles
- Fast, quarter-turn open or close operation
- Low operating torque
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- PTFE stem packing thrust washer and NBR seal
- Adjustable Packing Gland
- Body MaterialBRASSDomestic / ImportImportEnd StylesolderNominal Size1/2 inPort TypeFullSoftgoods MaterialPTFE/NBRBall MaterialCopper Silicon AlloyInlet to Outlet Length2-1/8ManufacturerWatts Water TechnologiesManufacturer #0123628MediaGas/LiquidPressure Rating600 psiTemperature Rating0 to 350 deg FTop to Inlet Center1-9/16Trim MaterialBrass StemType2-Piece
