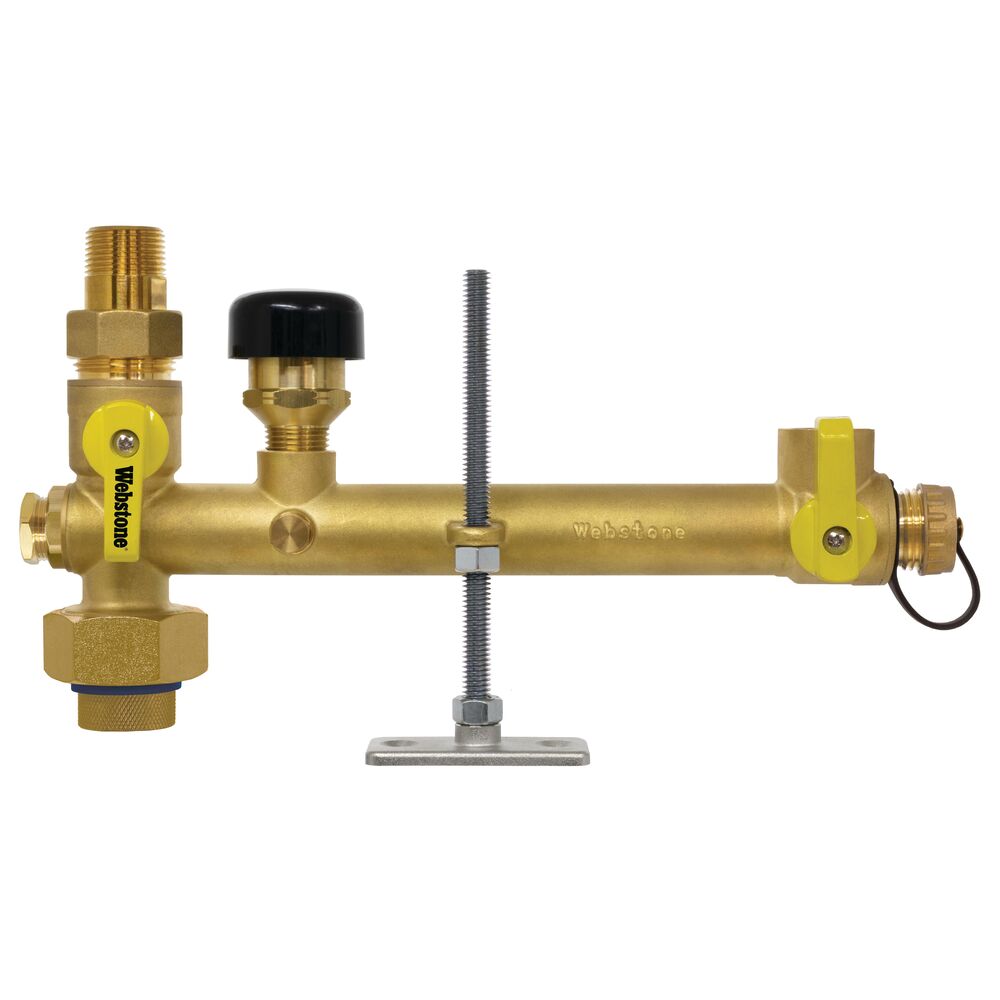

- Pro-Pal Water Heater Supply Valve, w/ Expansion Tank Service, Full Port DZR Brass Ball w/ Union End, w/ 3/4 Expansion Tank Port & Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2", 1/2" & 1/8"), Includes Vacuum Relief Valve & Mounting Hardware
Webstone, H-22653W-VR, Valve, Series: H-X265-VR, 3/4 in Nominal, FIP Union x MIP x FIP x Hose End Style, 150 psi Pressure, 180 deg F, Full Port, Media: Water, Quarter Turn Handle Actuator, Stainless Steel Ball, Lead Free DZR Brass Body, PTFE Trim, EPDM Softgoods, 2.44 in H x 5.12 in W x 12.2 in L Dimensions, Import
- Simplifies Storage Tank Water Heater Installations
- Integrated Valves Isolate the Water Supply and Expansion Tank for Service
- 1/2 in FIP cold water tapping for Water Heater Tempering Valve
- Compact version available if expansion tank is not required
- Replaces 16 Components
- Eliminates 15 Leakpaths
- This valve is actuated by a blowout proof stem
- Double O-Ring Stem Seals
- Compatible with 3/4 in MIP expansion tanks up to 5 gal
- Available in FIP Union x SWT x FIP x Hose, FIP Union x Push x FIP x Hose, FIP Union x Press x FIP x Hose, FIP Union x MIP x FIP x Hose, FIP Union x FIP x FIP x Hose, FIP Union x G-Thread x FIP x Hose
- Support Hardware and Vacuum Relief Valve
- Body MaterialLead Free DZR BrassDomestic / ImportImportEnd StyleFIP Union x MIP x FIP x HoseNominal Size3/4 inPort TypeFullSoftgoods MaterialEPDMActuator TypeQuarter Turn HandleBall MaterialStainless SteelDimensions2.44 in H x 5.12 in W x 12.2 in LManufacturerNIBCO Inc.Manufacturer #H-22653W-VRMediaWaterPressure Rating150 psiSeriesH-X265-VRTemperature Rating180 deg FTrim MaterialPTFE
