- Pro-Pal valves are your best choice for efficient installation and system operation and for helping to control costs. Pro-Pal Valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. The Dielectric Water Heater Supply Valve with Expansion Tank Service combines multiple components into a single, forged DZR brass solution to up-grade your next water heater and expansion tank installation. Designed for use with residential, commercial in residential or commercial residential, commercial systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.

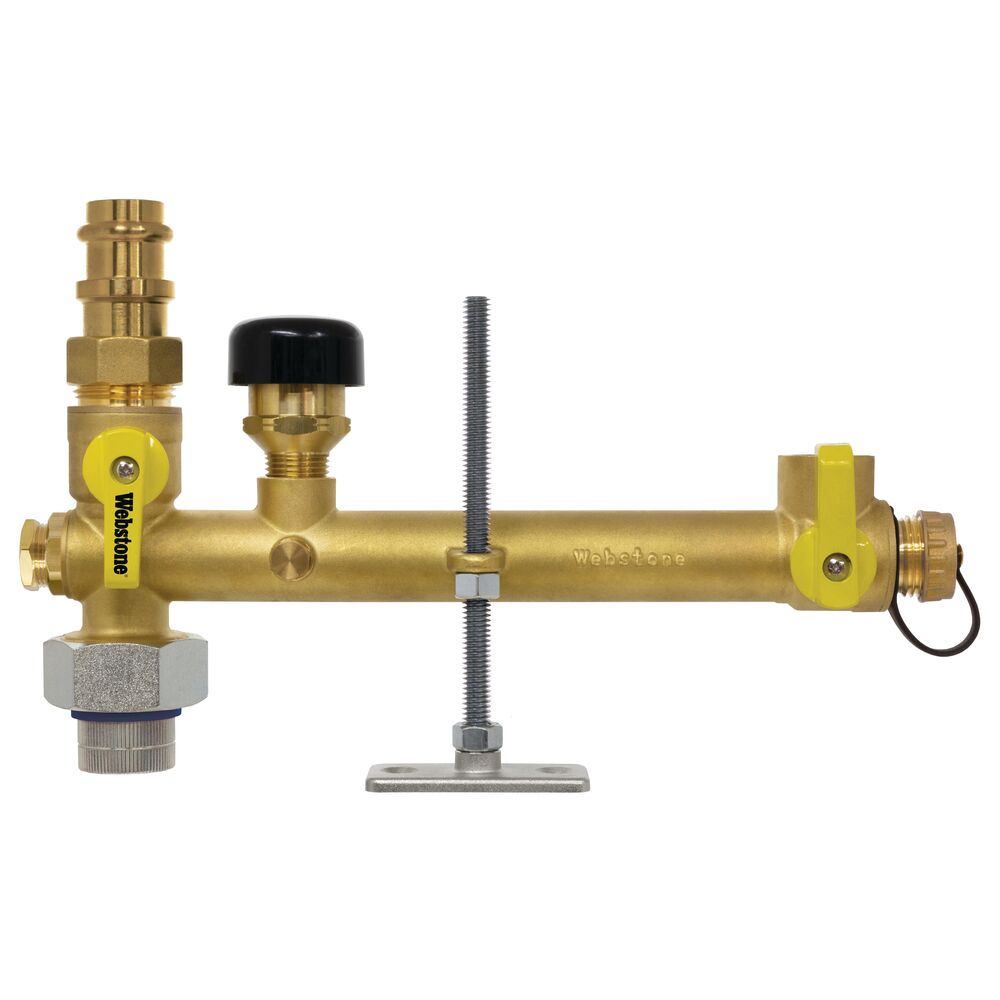

Webstone Dielectric Water Heater Supply Valve, Series: Pro-Pal Series, 3/4 in Nominal, FNPT Union x Press, 150 psi CWP, 180 deg F, Full Port, Media: Water, DZR Brass Body, Import
- 1/2 in FNPT port for installation of vacuum relief valve and 1/8 in plugs gauge port
- Saves time
- Eliminates leak paths
- This valve is actuated by a blowout-proof stem
- Patents pending
- 1/2 in FIP cold water tapping for Water Heater Tempering Valve
- Compatible with 3/4 in MIP expansion tanks up to 5 gal
- Compact version available if expansion tank is not required
- Integrated valves isolate the water supply and expansion tank for service
- Simplifies storage tank water heater installations
- Double O-ring Stem Seals
- Available in FIP Union x SWT x FIP x Hose, FIP Union x Push x FIP x Hose, FIP Union x Press x FIP x Hose, FIP Union x MIP x FIP x Hose, FIP Union x FIP x FIP x Hose, FIP Union x G-Thread x FIP x Hose
- Replaces 16 Components
- Support Hardware
- Body MaterialDZR BrassDomestic / ImportImportEnd StyleFNPT Union x PressNominal Size3/4 inPort TypeFullSub-BrandPro-PalManufacturerNIBCO Inc.Manufacturer #H-81653W-VRMediaWaterPressure Rating150 psi CWPTemperature Rating180 deg F
