Uponor

A6140750 Pre-Insulated Coil With 1/2 in Insulation, 3/4 in, 100 ft Coil L

WIRA6140750 MFG #: A6140750
A6140750 Pre-Insulated Coil With 1/2 in Insulation, 3/4 in, 100 ft Coil L
  • Domestic / Import: Domestic
  • Length: 100 ft
  • Material: Cross Linked Polyethylene
  • Nominal Size: 3/4 in
  • Working Pressure: 80 psi
  • Manufacturer: Uponor
  • Manufacturer #: A6140750
  • Outside Diameter: 2.06
  • Temperature Rating: 200 degF
The selected product is shipped in a predetermined length or quantity. Displayed pricing may reflect per unit/per foot pricing. Please review total price and quantity in your cart.

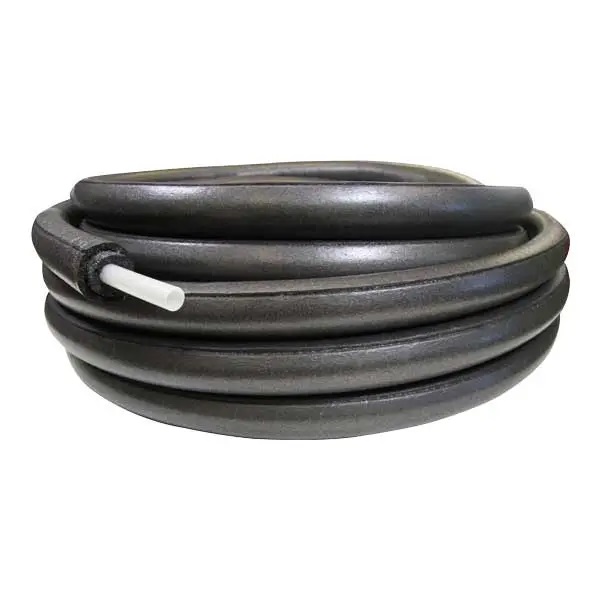

Pre-insulated Wirsbo® hePEX™ features oxygen-barrier PEX pipe encased in polyethylene-foam insulation to meet ASHRAE 90.1-2013 energy-code requirements for hydronic piping and radiant heating/cooling applications. The piping is approved for direct burial in soil provided it is not exposed to groundwater. Uponor recommends adding 1/2 in of insulation to accommodate for foam compression in direct-burial applications.

Uponor Wirsbo® hePEX™ Pre-Insulated Coil, 3/4 in Nominal, 2.06 in Outside Dia, 100 ft Coil Length, 80 psi Working, 200 deg F, Cross Linked Polyethylene, Domestic
  • Features
  • Polyethylene foam insulation
  • 0.25 Btu in/hr/sq-ft/deg F thermal conductivity
  • 1.1 in/10 deg F/100 ft linear expansion rate
  • 200 deg F at 80 psi, 180 deg F at 100 psi, 73.4 deg F at 160 psi hydrostatic ratings
  • 9 Btu/hr/ft heat loss at 70 deg F delta T
  • 3.6 R-value
  • 40 x 6-1/2 in coil
  • Use ProPEX® fittings to connect the piping
  • Crosslinked polyethylene (PEX-a) engel method service pipe
