Zoeller®

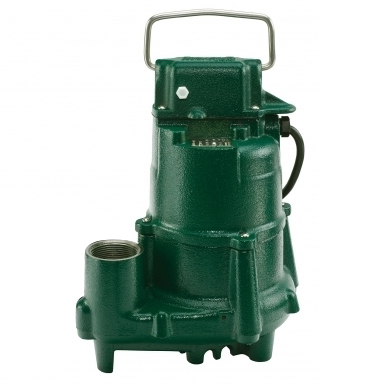

98-0002 N98 Flow-Mate Sump & Effluent Pump, Non-Automatic, 1/2 hp, 115V, Cast Iron

ZOEN98 MFG #: 98
98-0002 N98 Flow-Mate Sump & Effluent Pump, Non-Automatic, 1/2 hp, 115V, Cast Iron
  • Maximum Head: 23 ft
  • Motor HP: 1/2 HP
  • Voltage Rating: 115 V
  • Amperage Rating: 9.4 A
  • Bearing Type: Sleeve
  • Cord Length: 15 ft
  • Cord Type: 3-Wire Neoprene
  • Flow Rate: 72 gpm
  • Frequency Rating: 60
  • Impeller Type: Non-Clogging Vortex
  • Manufacturer: Zoeller Company
  • Manufacturer #: 98
  • Material: Cast Iron
  • Non-Automatic / Automatic: Non-Automatic
  • Outlet Size: 1-1/2 in NPT
  • Phase: 1
  • Series: Flow-Mate
  • Speed: 1725 rpm
  • Temperature Rating: 130 degF
Effluent or dewatering submersible pumps for septic tanks, low pressure pipe (LPP) and enhanced flow STEP systems.

Submersible Pump, Single Phase Single Seal, Series: Flow-Mate 98, 72 gpm, 1-1/2 in NPT Outlet, 23 ft Maximum Head, 1/2 hp, 115 VAC, 9.4 A, 60 Hz, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Cast Iron, 10-1/8 in W x 12 in H
  • Features
  • Corrosion-resistant, powder coated epoxy finish
  • Cast iron switch case, motor, pump housing and base
  • No steel sheet metal parts to rust or corrode
  • All castings are cast iron class 25-30 25000 lb tensile strength
  • Stainless steel screws, guard, handle, arm and seal assembly
  • Float-operated 2-pole mechanical switch
  • Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
  • Upper and lower oil-fed cast iron bearing
  • Carbon and ceramic shaft seal
  • Entire unit pressure-tested after assembly
  • Watertight, neoprene square ring between motor and pump housing
  • Passes 1/2 in spherical solids
  • No screens to clog
  • 1-1/2 in NPT discharge (1-1/2 x 2 in PVC adapter included with BN and BE Models)
  • Simplex and duplex systems available
  • Packaged systems available
  • Automatic and non-automatic available
  • Available with piggyback variable level float switch
  • For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump
  • 9-1/2 in on point, 3 in off point
