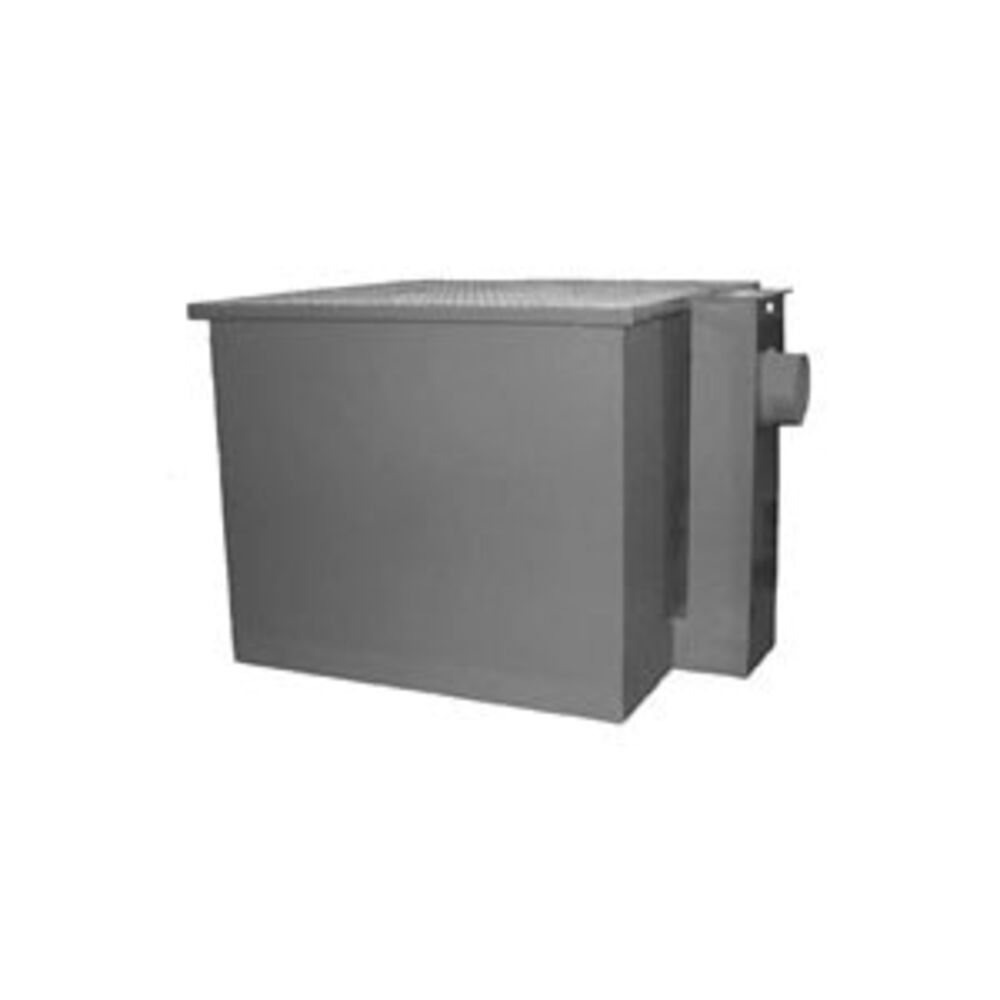

Zurn® Z1172-1000-4IP Large Capacity Hydro-Mechanical Grease Interceptor, #1000 Nominal, 200 lb Capacity, 100 gpm, 4" Inlet x 4" Outlet
Sign In to View Pricing & Availability
- The Zurn® Z1172 Large capacity acid resistant coated interior and exterior fabricated steel grease interceptor, with internal air relief by-pass, bronze cleanout plug (which can be used as a sampling port) and visible double wall trap seal that comes standard with pressure equalizing/flow diffusing baffle. The gasketed non-skid secured cover with removable lift handles and flow control fitting. Regularly furnished with inlet and outlet in high position.
Zurn® Hydro-Mechanical Grease Interceptor, Large Capacity, Series: Z1172, #1000 Nominal, 4 in Inlet Connection, 4 in Outlet, 200 lb, 100 gpm, NPT, Fabricated Steel, 42-3/4 in L x 33-5/8 in W x 27 in H
- Above or below grade applications
- Capacity200 lbFlow Rate100 gpmInlet Connection4 inNominal Size#1000Outlet Connection4 inConnection TypeThreadDimensions42-3/4 in L x 33-5/8 in W x 27 in HManufacturerZurn WaterManufacturer #Z1172-1000-4IPMaterialFabricated SteelSeriesZ1172TypeLarge Capacity
