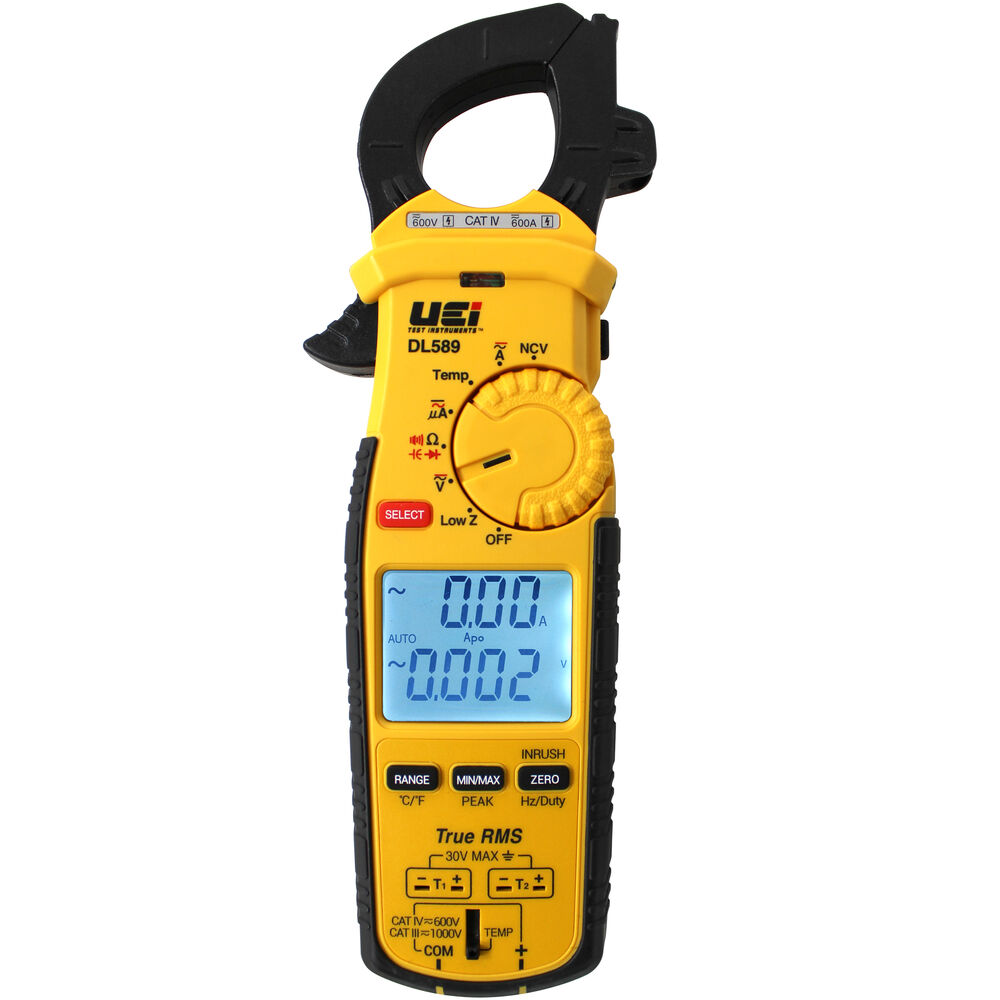

DL589 UEi Test Instruments 600A TRMS Clamp Meter w/ DC Amps, Inrush, AMH3 Magnet, 750 to 1000 V, 60 Mohm, Battery Operated
Sign In to View Pricing & Availability
- The UEi DL589 is a 600A True-RMS HVAC/R clamp meter with a rubberized grip, backlit dual display, and magnetic hanging strap. Each meter includes a set of silicone test leads, 2 K-Type thermocouples, threaded alligator clips for hands-free testing, and a zippered carrying pouch. It features DC Amps, differential temperature readings, Inrush, and DC millivolts as well as functions like AC/DC voltage, NCV, AC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.
DL589 UEi Test Instruments 600A TRMS Clamp Meter w/ DC Amps, Inrush, AMH3 Magnet, 750 to 1000 V, 60 Mohm, Battery Operated
- The DL589 is safety rated at CAT IV 600V / CAT III 1000V.
- Circuits in molex plugs, and diode malfunctions. Measure capacitance, voltage, microamps, circuit continuity, resistance, and temperature via K-Type thermocouples
- Magnetic hanger strap with flexible application
- Easy access battery latches. No screwdriver needed.
- Test lead storage for convenience
- Added selection dial to navigate test functions
- Increased capacitance range to 6000µF with faster response times
- Back probes included for mini-split applications
- Manual (Eng)| Test Leads Silicone ATL58| Alligator Clips AAC3| Pouch Case AC560| Temperature Probe ATT29 (2)| Back Probes ABP3
- Frequency Rating99.99kHzResistance60 MOhmAmperage Rating600 ABattery IncludedYesBattery TypeTriple ACapacitance2000 µFColorYellow / BlackDisplay TypeDualDomestic / ImportImportDuty Cycle1 to 99 %ManufacturerUEi Test InstrumentsManufacturer #DL589Temperature Rating-328 to 2462 deg FVoltage Rating750 AC V | 1000 DC V
