Comfortmaker Products
Use the links below to navigate to a specific Comfortmaker section to start shopping!
Comfortmaker® products are only available for purchase by Comfortmaker Certified dealers. If you are interested in becoming Comfortmaker Certified, please reach out to your local First Supply branch.
Our top Comfortmaker products are listed below. Shop All Comfortmaker Products here.
Furnaces

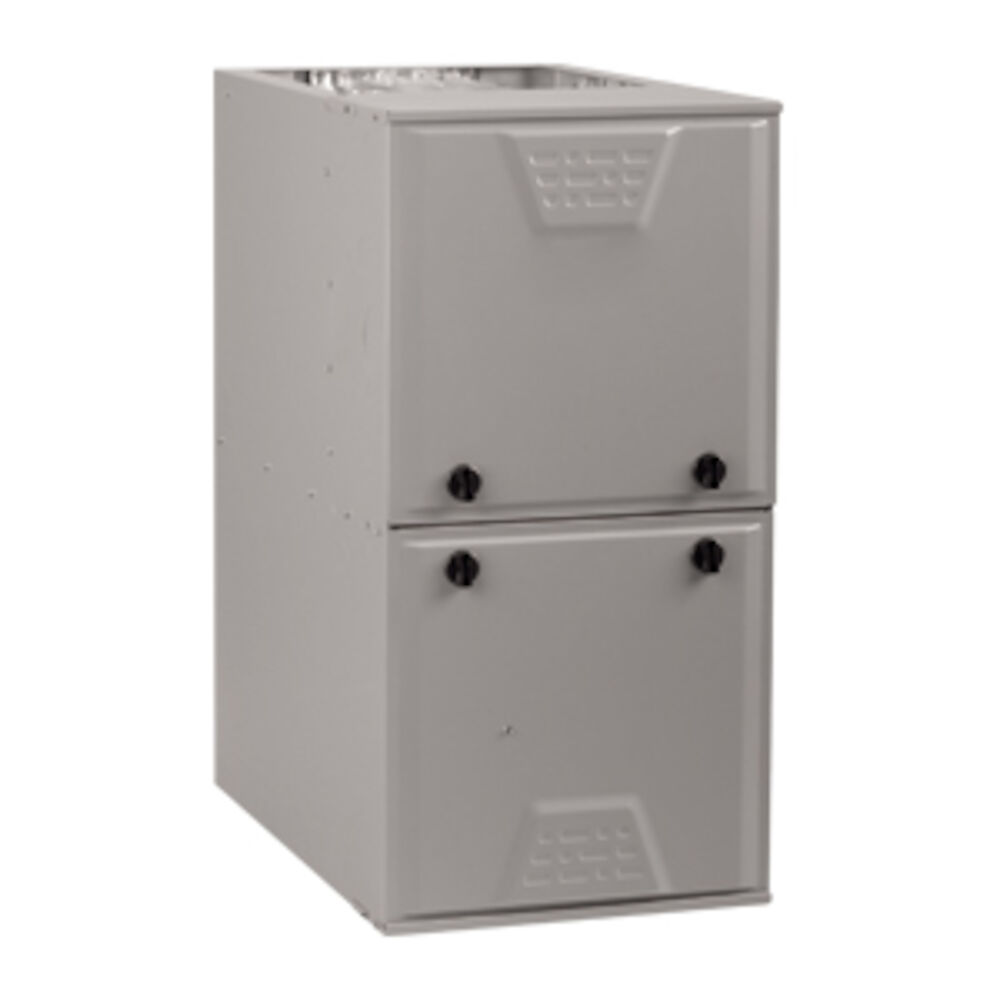

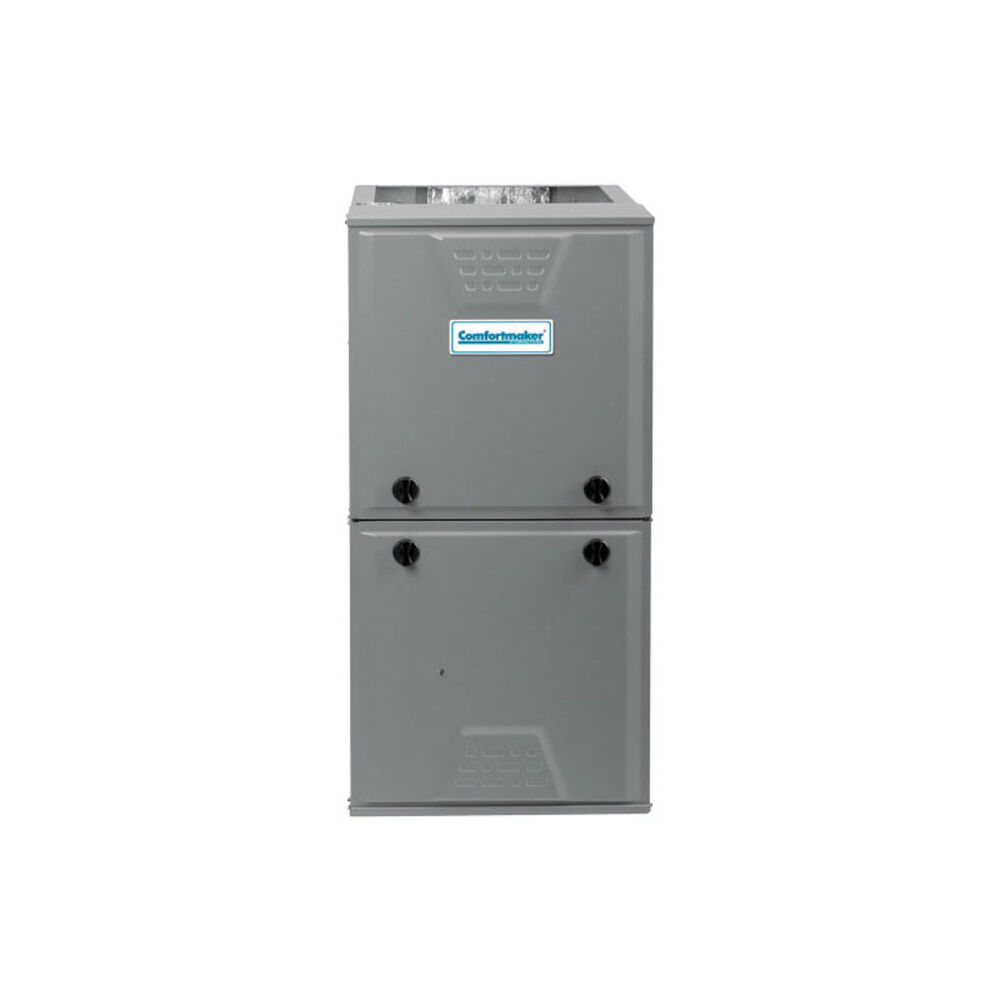

G97CMN Gas Furnace
UP TO 98% AFUE, COMMUNICATING, MODULATING GAS FURNACE
EASIER TO SELL
- Up to 98% AFUE in upflow and horizontal positions Up to 96.7% AFUE in downflow
- Modulating heating operation (40% - 100% capacity)
- ION™ Communicating Control System
- Xtra SEER Variable-speed ECM blower motor
- Supports single, two-stage and variable cooling units
- Dehumidification feature in cooling
- All sizes can be installed in California air quality management districts with a 40 ng/J NOx emissions requirement
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
TOUGHER
- Flame roll−out sensors standard
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ® primary heat exchanger
- Stainless steel secondary heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
QUIETER
- Operates at quieter, lower heating rates
- Variable speed induced draft combustion blower
- Variable speed, constant airflow, communicating ECM blower motor
- Insulated steel cabinet
EASIER TO INSTALL AND SERVICE
- Direct vent (2-pipe) or ventilated combustion air
- 24 VAC humidifier terminal
- Electronic air cleaner terminal
- 35" (889mm) high, for ease of installation and room for service
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Twelve different venting configurations
- Through the casing flue pipe for counterflow or horizontal applications with accessory kit (order separately)
- Concentric vent available
- Simple troubleshooting of gas valve
- Self-configuring and communicating control
- Slide out heat exchanger assembly and blower assembly
LIMITED WARRANTY*
- 10 year No Hassle Replacement™ limited warranty
- Lifetime heat exchanger limited warranty with timely registration
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER G97CMN UNIT PERFORMANCE DATA
| AFUE (up to) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item # | Model # | Heating Input (BTUh) |
Upflow/Hz | Downflow | ENERGY STAR® |
Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Shipping Weight lbs (kg) |
| COMG97CMN0601714A | G97CMN0601714A | 60,000 | 97.0% | 95.0% | ✔ | 510-1335 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 154 (69) |
| COMG97CMN0602120A | G97CMN0602120A | 60,000 | 98.0% | 96.7% | ✔ | 540-1905 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 159 (70) |
| COMG97CMN0801714A | G97CMN0801714A | 80,000 | 97.0% | 95.0% | ✔ | 490-1375 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 164 (74) |
| COMG97CMN0802120A | G97CMN0802120A | 80,000 | 97.0% | 95.0% | ✔ | 750-1945 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 169(77) |
| COMG97CMN1002122A | G97CMN1002122A | 100,000 | 97.0% | 95.0% | ✔ | 715-2160 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 179 (80) |
| COMG97CMN1202422A | G97CMN1202422A | 120,000 | 97.0% | 95.0% | ✔ | 680-2185 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 750) | 203 (91) |
Mobile/tablet users scroll table sideways to view all columns.
G96CTN Gas Furnace
UP TO 96.7% AFUE, COMMUNICATING, TWO STAGE GAS FURNACE
EASIER TO SELL
- Up to 96.7%+ AFUE in upflow and horizontal positions, 95% AFUE in downflow
- ION™ Communicating Control System
- Variable-speed, constant airflow ECM blower motor for extra SEER boost with select cooling equipment
- Supports single, two-stage and variable cooling units
- Dehumidification feature in cooling
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
TOUGHER
- Flame roll−out sensors standard
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ® primary heat exchanger
- Stainless steel secondary heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
QUIETER
- Operates at quieter, lower heating rates
- Two-speed induced draft combustion blower
- Variable speed, constant airflow blower motor
- Fully insulated steel cabinet
EASIER TO INSTALL AND SERVICE
- Direct vent (2-pipe) or ventilated combustion air
- 24 VAC humidifier terminal
- Electronic air cleaner terminal
- 35" (889mm) high, for ease of installation and room for service
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane gas with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Twelve different venting configurations
- Through the casing flue pipe for counterflow or horizontal applications with accessory kit (order separately)
- Concentric vent available
- Self-configuring and communicating control
- Slide out heat exchanger assembly and blower assembly
LIMITED WARRANTY*
- 10 year No Hassle Replacement™ limited warranty
- Lifetime heat exchanger limited warranty with timely registration
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER G96CTN UNIT PERFORMANCE DATA
| AFUE (up to) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item # | Model # | Heating Input (BTUh) |
Upflow/Hz | Downflow | ENERGY STAR® |
Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Shipping Weight lbs (kg) |
| COMG96CTN0601714A | G96CTN0601714A | 60,000 | 96.3% | 95.0% | ✔ | 530-1280 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 151.0 (68.5) |
| COMG96CTN0801714A | G96CTN0801714A | 80,000 | 96.2% | 95.0% | ✔ | 520-1310 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 152.5 (69.2) |
| COMG96CTN0802120A | G96CTN0802120A | 80,000 | 96.7% | 95.0% | ✔ | 750-1945 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 171.5 (77.8) |
| COMG96CTN1002122A | G96CTN1002122A | 100,000 | 96.1% | 95.0% | ✔ | 715-2160 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 179.0 (81.2) |
| COMG96CTN1202422A | G96CTN1202422A | 120,000 | 96.5% | 95.0% | ✔ | 705-2135 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 750) | 195.0 (88.4) |
Mobile/tablet users scroll table sideways to view all columns.

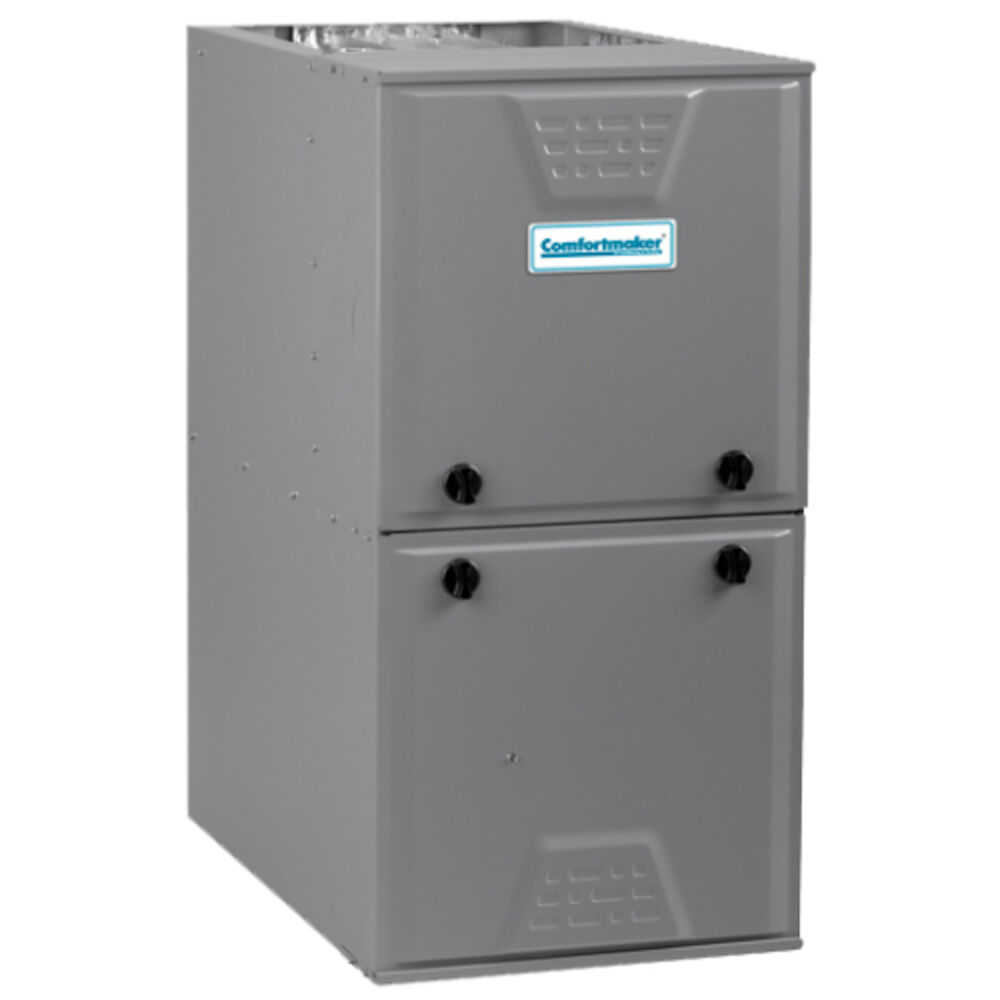

G96VTN Gas Furnace
VARIABLE SPEED, NON-COMMUNICATING, TWO-STAGE GAS FURNACE
EASIER TO SELL
- Up to 96% AFUE in upflow and horizontal positions, 95% AFUE in downflow position
- Two-stage heating operation
- Variable-speed, constant torque ECM blower motor
- Supports single-stage and two-stage cooling units
- Dehumidification feature in cooling
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
TOUGHER
- Flame roll−out sensors standard
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ® primary heat exchanger
- Stainless steel secondary heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
QUIETER
- Operates at quieter, lower heating rates
- Two−speed induced draft combustion blower
- Variable speed, constant torque ECM blower motor
- Fully insulated steel cabinet
EASIER TO INSTALL AND SERVICE
- Direct vent (2-pipe), single-pipe venting or ventilated combustion air
- 24 VAC humidifier terminal
- Electronic air cleaner terminal
- 35" (889mm) high, for ease of installation
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Twelve different venting configurations
- Through the casing flue pipe for counterflow or horizontal applications with accessory (order separately)
- Non-communicating furnace, compatible with 24V thermostat
- Concentric vent available
- Slide out heat exchanger assembly and blower assembly
- Twinning capable (model sizes 0601714, 0801716, 0802120, 1002120, 1202422)
LIMITED WARRANTY*
- 5 year No Hassle Replacement™ limited warranty
- Lifetime heat exchanger limited warranty with timely registration
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER G96VTN UNIT PERFORMANCE DATA
| AFUE (up to) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Item # | Model # | Heating Input (BTUh) |
Upflow/Hz | Downflow | ENERGY STAR® |
Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Shipping Weight lbs (kg) |
| COMG96VTN0401410A | G96VTN0401410A | 40,000 | 96% | 95% | ✔ | 445-1030 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 123 (55.8) |
| COMG96VTN0401712A | G96VTN0401712A | 40,000 | 96% | 95% | ✔ | 400-1105 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 133 (60.3) |
| COMG96VTN0601412A | G96VTN0601412A | 60,000 | 95% | 95% | ✔ | 445-1115 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 132 (59.9) |
| COMG96VTN0601714A | G96VTN0601714A | 60,000 | 96% | 95% | ✔ | 210-1475 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 139 (63.0) |
| COMG96VTN0801716A | G96VTN0801716A | 80,000 | 96% | 95% | ✔ | 360-1655 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 147 (66.7) |
| COMG96VTN0802120A | G96VTN0802120A | 80,000 | 96% | 95% | ✔ | 440-2005 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 156 (70.7) |
| COMG96VTN1002120A | G96VTN1002120A | 100,000 | 96% | 95% | ✔ | 405-2005 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 170 (77.1) |
| COMG96VTN1202422A | G96VTN1202422A | 120,000 | 96% | 95% | ✔ | 505-2190 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 7507) | 190 (86.2) |
Mobile/tablet users scroll table sideways to view all columns.

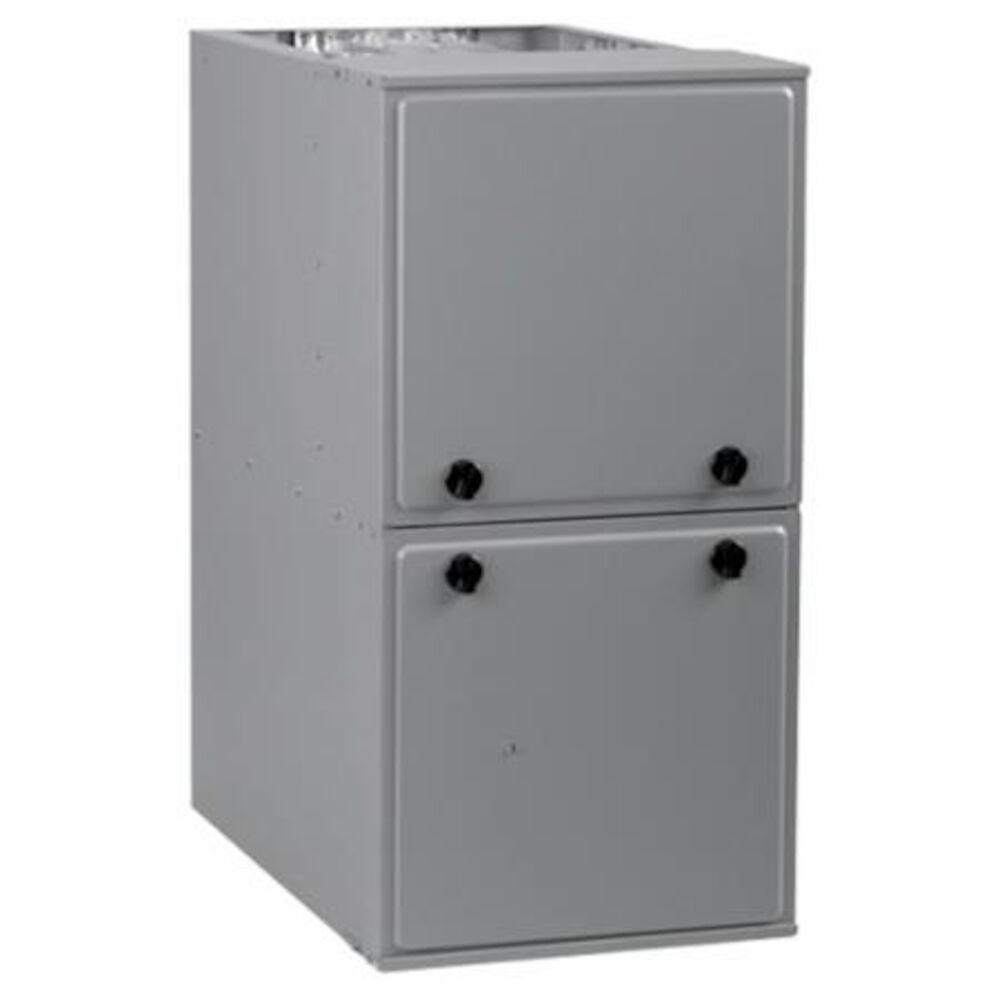

N95ESN Gas Furnace
UP TO 96% AFUE, SINGLE STAGE, MULTI-SPEED ECM, GAS FURNACE
EASIER TO SELL
- Up to 96% AFUE in upflow/horizontal, up to 95% AFUE in downflow
- Fixed-speeds, constant torque ECM blower motor
- Supports single-stage cooling units
- Insulated heat exchanger compartment
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
- Approved for twinning applications (0601714, 0801716, 0802120, 1002120, 1202422, 1402422) with accessory (order separately)
- Approved for manufactured housing/mobile home applications (0401410 through 1202422) with accessory (order separately)
TOUGHER
- Flame roll−out sensors standard
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ® primary heat exchanger
- Stainless steel secondary heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
- High-quality, corrosion-resistant, one-piece steel cabinet
EASIER TO INSTALL AND SERVICE
- Direct vent (2-pipe), single-pipe venting, or ventilated combustion air
- 24 VAC humidifier terminal, electronic air cleaner terminal
- 35" (889mm) high, for ease of installation
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Twelve different venting configurations
- Through the casing flue pipe for counterflow or horizontal applications with accessory (order separately)
- Concentric vent available
- Self diagnostics with super bright LED
- Slide out heat exchanger and blower assembly
LIMITED WARRANTY*
- Lifetime heat exchanger limited warranty with timely registration
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
For California Residents:
If installed with a manufactured (mobile) home conversion kit in SCAQMD: This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com
COMFORTMAKER N95ESN UNIT PERFORMANCE DATA
| AFUE (up to) | |||||||
|---|---|---|---|---|---|---|---|
| Item # | Model # | Heating Input (BTUh) |
Upflow/Hz | Downflow | Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Shipping Weight lbs (kg) |
| ICPN95ESN0261410A | N95ESN0261410A | 26,000 | 96.0% | 95.0% | 235-895 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 118.0 (53.5) |
| ICPN95ESN0401410A | N95ESN0401410A | 40,000 | 96.0% | 95.0% | 365-950 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 120.0 (54.4) |
| ICPN95ESN0401712A | N95ESN0401712A | 40,000 | 96.0% | 95.0% | 270-1010 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 126.5 (57.4) |
| ICPN95ESN0601412A | N95ESN0601412A | 60,000 | 95.0% | 95.0% | 345-1120 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 129.0 (58.5) |
| ICPN95ESN0601714A | N95ESN0601714A | 60,000 | 96.0% | 95.0% | 460-1330 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 138.5 (62.8) |
| ICPN95ESN0801716A | N95ESN0801716A | 80,000 | 96.0% | 95.0% | 935-1665 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 146.5 (66.5) |
| ICPN95ESN0802120A | N95ESN0802120A | 80,000 | 96.0% | 95.0% | 895-1855 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 154.5 (70.1) |
| ICPN95ESN1002120A | N95ESN1002120A | 100,000 | 96.0% | 95.0% | 1110-2125 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 164.5 (74.6) |
| ICPN95ESN1202422A | N95ESN1002122A | 100,000 | 96.0% | 95.0% | 1300-2065 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 164.5 (74.6) |
| ICPN95ESN1202422A | N95ESN1202422A | 120,000 | 96.0% | 95.0% | 710-2105 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 750) | 179.5 (81.4) |
| ICPN95ESN1402422A | N95ESN1402422A | 140,000 | 95.0% | 95.0% | 470-2310 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 750) | 189.0 (85.7) |
Mobile/tablet users scroll table sideways to view all columns.

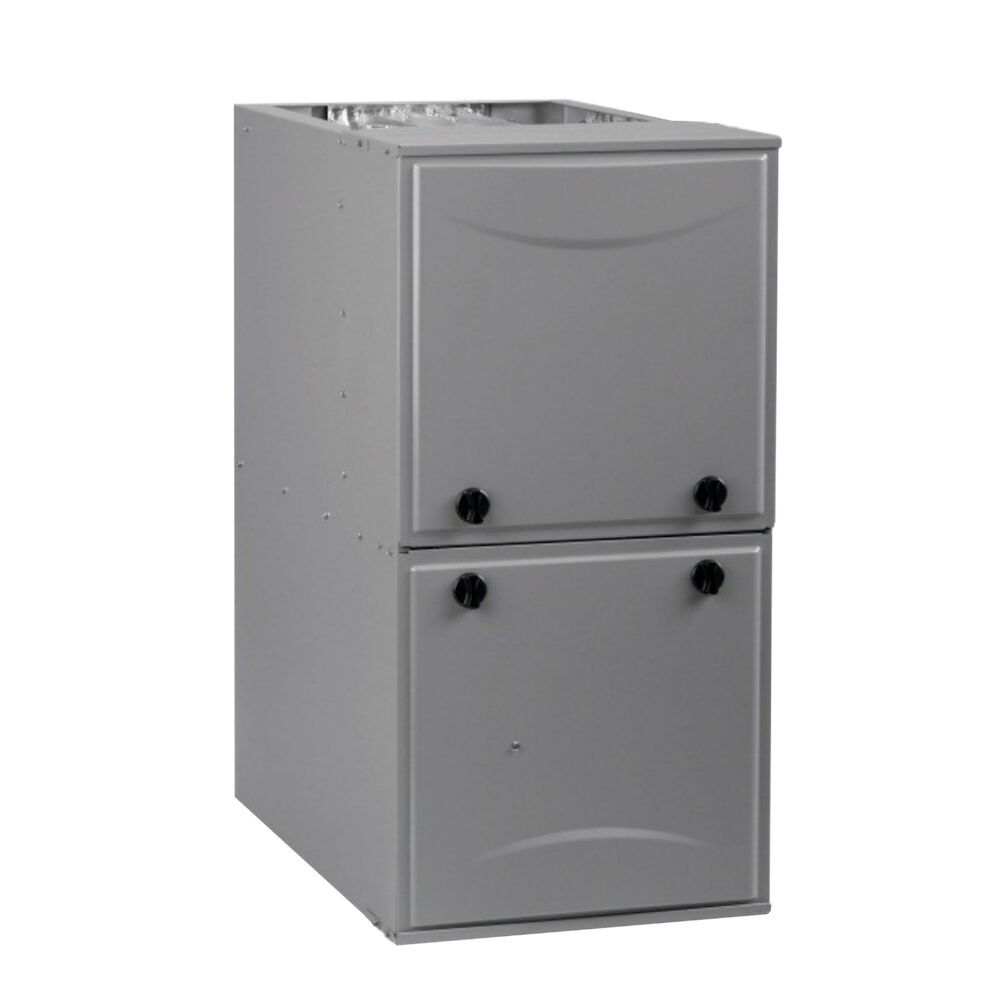

N92ESN Gas Furnace
UP TO 92.1% AFUE, SINGLE STAGE, GAS FURNACE
EASIER TO SELL
- Up to 92.1% AFUE in upflow, horizontal and downflow positions
- Single-stage gas valve and fixed-speeds, constant torque ECM blower motor
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
- Approved for manufactured housing/mobile home applications with accessory (order separately)
- Select sizes approved for twinning, refer to accessory kit listing
- All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
TOUGHER
- Flame roll−out sensors standard
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ® primary heat exchanger
- Stainless steel secondary heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
- High-quality, corrosion-resistant, one-piece steel cabinet
EASIER TO INSTALL AND SERVICE
- Direct vent (2-pipe), single-pipe venting, or ventilated combustion air
- 24 VAC humidifier terminal, electronic air cleaner terminal
- 35" (889mm) high, for ease of installation
- Simplified, factory installed internal condensate drain system
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Twelve different venting configurations
- Through the casing flue pipe for counterflow or horizontal applications with accessory (order separately)
- Concentric vent available
- Self diagnostics with super bright LED
- Slide out heat exchanger and blower assembly
LIMITED WARRANTY*
- 20 year heat exchanger limited warranty
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
For California Residents:
If installed with a manufactured (mobile) home conversion kit in SCAQMD: This furnace does not meet the SCAQMD Rule 1111 14 ng/J NOx emission limit, and thus is subject to a mitigation fee of up to $450. This furnace is not eligible for the Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com
COMFORTMAKER N92ESN UNIT PERFORMANCE DATA
| AFUE (up to) | |||||||
|---|---|---|---|---|---|---|---|
| Item # | Model # | Heating Input (BTUh) |
Upflow/Hz | Downflow | Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Shipping Weight lbs (kg) |
| ICPN92ESN0401410A | N92ESN0401410A | 40,000 | 92.1% | 92.1% | 290-985 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 112.0 (50.8) |
| ICPN92ESN0401712A | N92ESN0401712A | 40,000 | 92.1% | 92.1% | 350-985 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 122.5 (55.6) |
| ICPN92ESN0601412A | N92ESN0601412A | 60,000 | 92.1% | 92.1% | 450-1035 | 35 x 14-3/16 x 29-1/2 (889 x 361 x 750) | 122.0 (55.3) |
| ICPN92ESN0601714A | N92ESN0601714A | 60,000 | 92.1% | 92.1% | 535-1190 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 132.0 (59.9) |
| ICPN92ESN0801716A | N92ESN0801716A | 80,000 | 92.1% | 92.1% | 450-1365 | 35 x 17-1/2 x 29-1/2 (889 x 445 x 750) | 142.0 (64.4) |
| ICPN92ESN0802120A | N92ESN0802120A | 80,000 | 92.1% | 92.1% | 940-1815 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 150.0 (68.0) |
| ICPN92ESN1002120A | N92ESN1002120A | 100,000 | 92.1% | 92.1% | 945-1850 | 35 x 21 x 29-1/2 (889 x 533 x 750) | 160.0 (72.6) |
| ICPN92ESN1202420A | N92ESN1202420A | 120,000 | 92.1% | 92.1% | 805-1850 | 35 x 24-1/2 x 29-1/2 (889 x 622 x 750) | 183.0 (83.0) |
Mobile/tablet users scroll table sideways to view all columns.

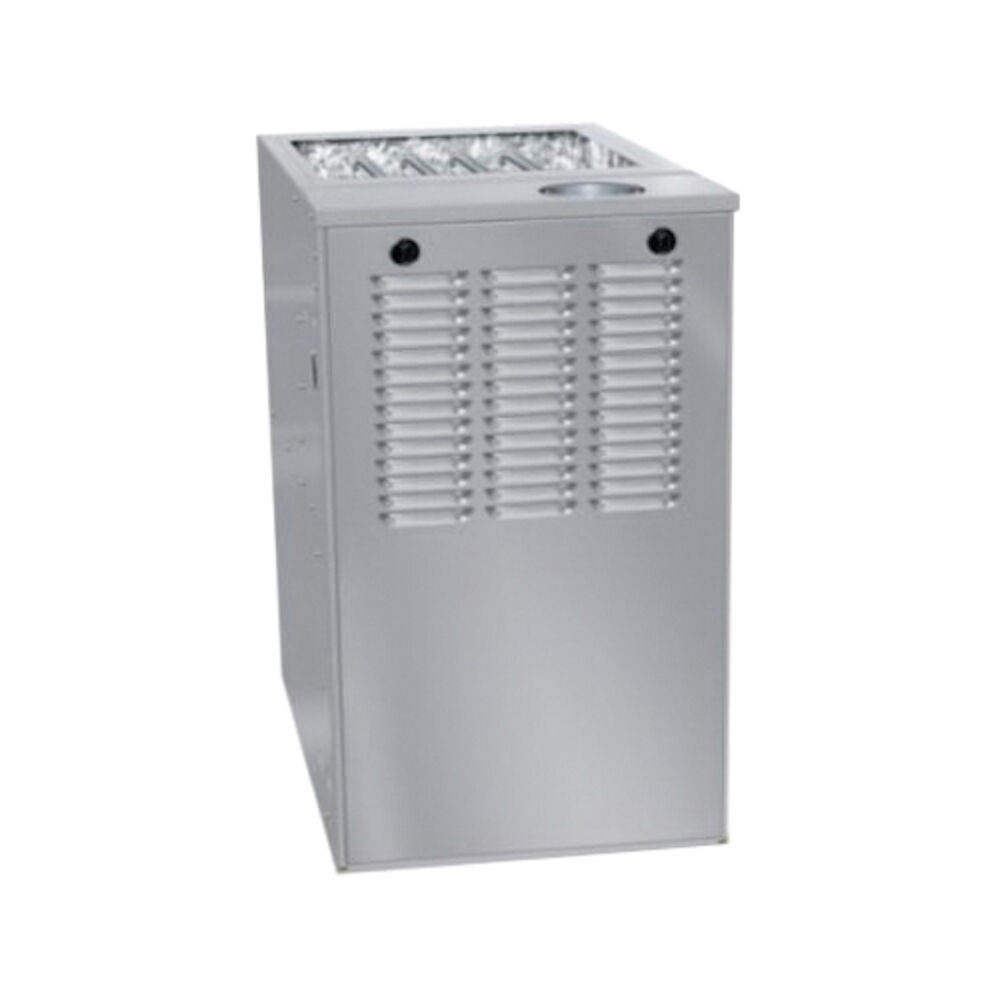

N80ESN Gas Furnace
80% SINGLE STAGE, MULTI-SPEED ECM GAS FURNACE
EASIER TO SELL
- 80% AFUE
- Flame roll−out sensors standard
- Category I venting
- Blocked vent switch
- Louvered door
- 24 VAC and 115 VAC humidifier terminal
- Electronic air cleaner terminal
- Approved for twinning application (0702116, 0902116, 0902120, 0902420, 1102120, 1102420, 1352420, 1552420) with accessory (order separately)
- N80ESL - Low NOx units can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
- Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193
TOUGHER
- Adjustable heating blower OFF delay
- Factory set blower ON delay
- RPJ Aluminized steel heat exchanger
- High temperature limit control designed to prevent overheating
- Direct ignition with Silicon Nitride ignitor
- One piece prepainted steel cabinet
QUIETER
- In−shot burners
EASIER TO INSTALL AND SERVICE
- 33-1/3" (847mm) high, for ease of installation
- Quarter turn knobs for easy door removal and secure attachment
- Convertible to propane with gas conversion accessory kit
- Four position − upflow/downflow/horizontal (left/right) installation
- Three position inducer elbow capability
- Through the casing flue pipe for counterflow applications
- Common venting with other Category I appliances
- Masonry chimney adapter available
- Self diagnostics
- Slide out blower assembly
LIMITED WARRANTY*
- 20 year heat exchanger limited warranty with timely registration
- 5 year parts limited warranty − With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER N80ESN UNIT PERFORMANCE DATA
| Item # | Model # | Heating Input (BTUH) |
Efficiency AFUE |
Cooling Capacity CFM range @ .5 in. w.c. (125 Pa) |
Operating Dimensions Height x Width x Depth inches (millimeters) |
Operating Weight lbs (kg) |
|---|---|---|---|---|---|---|
| ICPN80ESN0451412A | N80ESN0451412A | 44,000 | 80% | 415-1080 | 33-1/3 x 14-3/16 x 29 (847 x 360 x 737) | 104 (47) |
| ICPN80ESN0451712A | N80ESN0451712A | 44,000 | 80% | 320-1215 | 33-1/3 x 17-1/2 x 29 (847 x 445 x 737) | 119 (54) |
| ICPN80ESN0701412A | N80ESN0701412A | 66,000 | 80% | 315-1070 | 33-1/3 x 14-3/16 x 29 (847 x 360 x 737) | 114 (52) |
| ICPN80ESN0701712A | N80ESN0701712A | 66,000 | 80% | 385-1005 | 33-1/3 x 17-1/2 x 29 (847 x 445 x 737) | 120 (54) |
| ICPN80ESN0702116A | N80ESN0702116A | 66,000 | 80% | 775-1545 | 33-1/3 x 21 x 29 (847 x 533 x 737) | 142 (64) |
| ICPN80ESN0901714A | N80ESN0901714A | 88,000 | 80% | 750-1210 | 33-1/3 x 17-1/2 x 29 (847 x 445 x 737) | 131 (49) |
| ICPN80ESN0902116A | N80ESN0902116A | 88,000 | 80% | 845-1445 | 33-1/3 x 21 x 29 (847 x 533 x 737) | 137 (62) |
| ICPN80ESN0902120A | N80ESN0902120A | 88,000 | 80% | 915-1980 | 33-1/3 x 21 x 29 (847 x 533 x 737) | 140 (64) |
| ICPN80ESN0902420A | N80ESN0902420A | 88,000 | 80% | 845-1960 | 33-1/3 x 24-1/2 x 29 (847 x 622 x 737) | 146 (66) |
| ICPN80ESN1102120A | N80ESN1102120A | 110,000 | 80% | 990-1715 | 33-1/3 x 21 x 29 (847 x 533 x 737) | 146 (66) |
| ICPN80ESN1102420A | N80ESN1102420A | 110,000 | 80% | 820-2005 | 33-1/3 x 24-1/2 x 29 (847 x 622 x 737) | 161 (73) |
| ICPN80ESN1552420A | N80ESN1552420A | 154,000 | 80% | 835-1965 | 33-1/3 x 24-1/2 x 29 (847 x 622 x 737) | 168 (76) |
Mobile/tablet users scroll table sideways to view all columns.
Air Conditioners

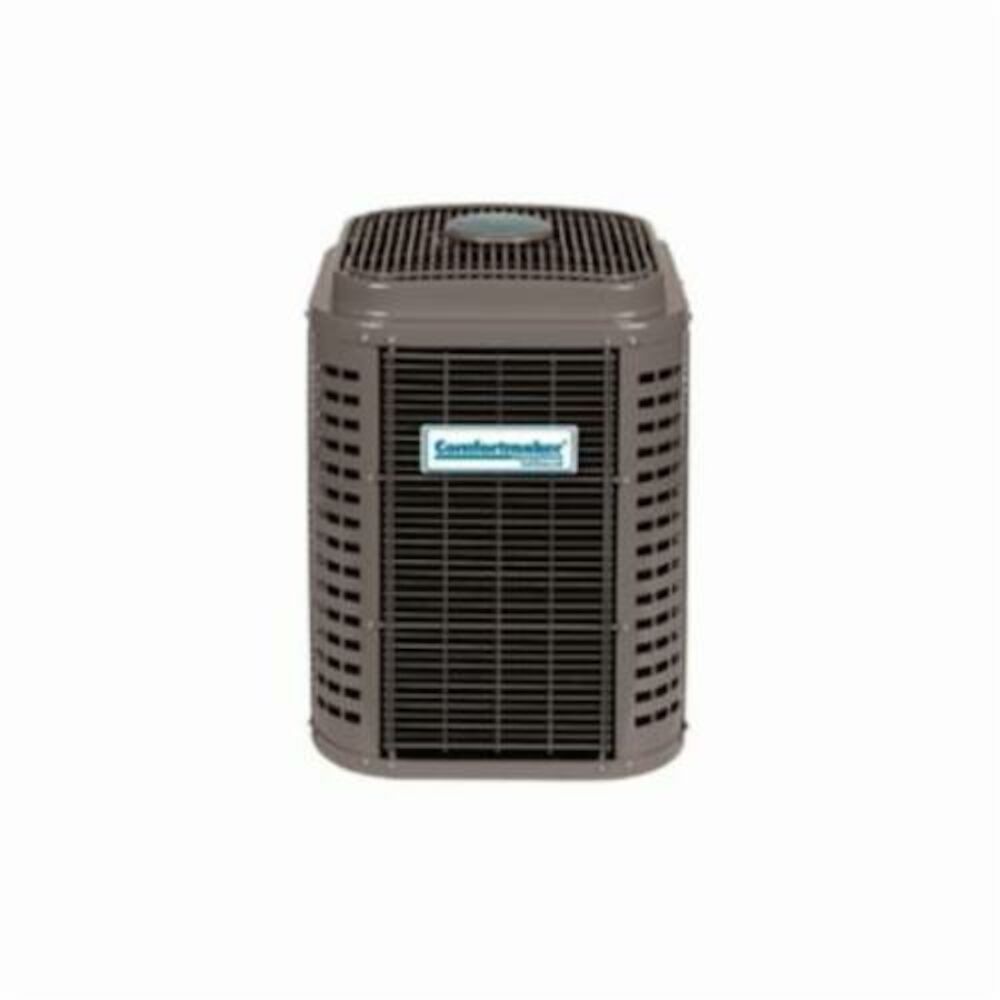

CVA9 Air Conditioner
HIGH EFFICIENCY UP TO 19 SEER VARIABLE-SPEED AIR CONDITIONER WITH ION™ COMMUNICATING CONTROL SYSTEM
2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Variable speed compressor operates at 5 stages with capacity range as wide as 25 - 100%
- High pressure switch
- Suction pressure transducer
- Pressure equalizer valve for easy starting
- Compressor discharge temperature sensor
- Coil temperature sensor
- Copper tube/aluminum fin coil
PERFORMANCE
- Up to 13.0 EER
- Integrated inverter control enables 5-stage operation with complete ION™ Communicating Control System
- Also capable of 2-stage operation with 2-stage thermostat
- Self-configuring installation with ION™ Communicating Control System
- Compact ECM fan motor driven by integrated inverter control
- Outdoor temperature sensor factory installed
- High-performance compressor sound shield standard
- Isolation compressor grommets
- Enhanced dehumidification
EASY TO INSTALL AND SERVICE
- “Last 10 System Events” diagnostics with Ion™ control
- Only 2 control wires required from communicating indoor unit to condenser
- External high and low refrigerant service ports
- Factory charged with R-410A refrigerant
- Adjustments for min and max staging with Observer Wall Control
BUILT TO LAST
- High gloss, baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated inlet grille with 3/8" (10mm) spacing for extra protection (hail guard)
- Corner posts for extra strength and style
LIMITED WARRANTY*
- 10 year No Hassle Replacement™ limited warranty
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER CVA9 UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Amps |
Max. Fuse / Breaker |
Operating Dimensions height x length/width(sq.) in. (mm) |
Ship / Operating Weight lbs. (kg) |
|---|---|---|---|---|---|---|---|
| COMCVA924GKA | CVA924GKA | 2 | 24,000 | 13.5 | 20 | 31-13/16 x 23-1/8 (807 x 587) | 128/150(58/68) |
| COMCVA936GKA | CVA936GKA | 3 | 36,000 | 24.2 | 40 | 38-1/2 x 23-1/8 (980 x 587) | 152/177 (69/80) |
| COMCVA948GKA | CVA948GKA | 4 | 48,000 | 27.3 | 40 | 38-15/16 x 31-3/16 (989 x 792) | 205/242 (93/110) |
| COMCVA960GKA | CVA960GKA | 5 | 60,000 | 40.0 | 60 | 42-5/16 x 31-3/16 (1075 x 792) | 229/268(104/121) |
Mobile/tablet users scroll table sideways to view all columns.

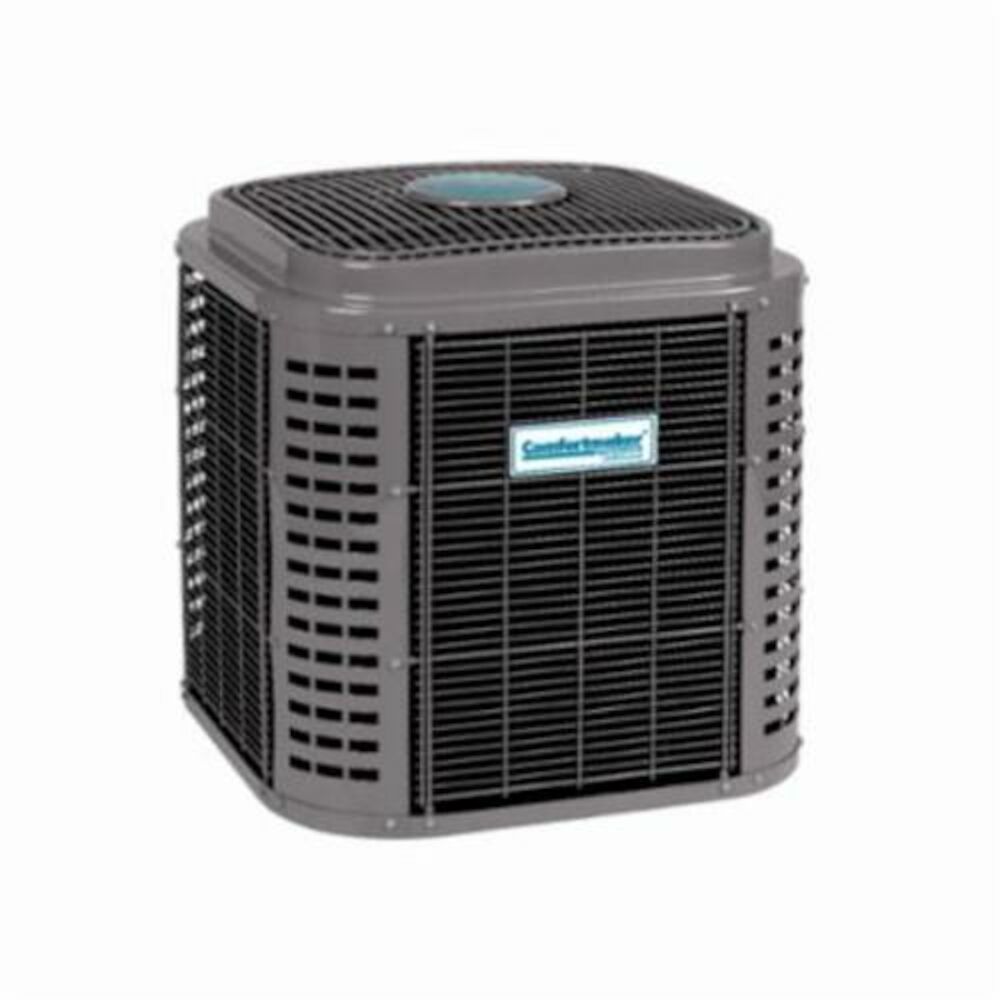

CSA6 Air Conditioner
UP TO 16 SEER SINGLE STAGE AIR CONDITIONER WITH ION™ COMMUNICATING CONTROL SYSTEM
1-1/2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- External high and low refrigerant service ports
- Copper tube/aluminum fin coil
PERFORMANCE
- Communicating, self-configuring operation when used with Ion™ Communicating Control System (SYST0101CW)
- Outdoor temperature sensor factory installed
- Compressor sound blanket standard
- Isolation compressor grommets
EASY TO INSTALL AND SERVICE
- “Last 10 System Events” diagnostics with Ion™ control
- Easy Access service valves on all models
- Innovative control box design
- High and low pressure switches
- Fan motor in-line disconnect plug
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST
- High gloss, baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8" (10mm) spacing for extra protection
- Corner posts for extra strength and style
WARRANTY*
- 5 year No Hassle Replacement™ limited warranty
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER CSA6 UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Ampacity |
Max. Fuse / Breaker |
Operating Dimensions height x width x depth in. (mm) |
Ship / Operate Weight lbs. (kg) |
|---|---|---|---|---|---|---|---|
| COMCSA618GKA | CSA618GKA | 1-1/2 | 18,000 | 11.8 | 20 | 28-11/16 x 31-3/16 x 31-3/16 (729 x 792 x 792) | 213 / 176 (96 / 80) |
| COMCSA624GKA | CSA624GKA | 2 | 24,000 | 17.5 | 25 | 28-11/16 x 31-3/16 x 31-3/16 (729 x 792 x 792) | 212 / 176 (96 / 80) |
| COMCSA630GKA | CSA630GKA | 2-1/2 | 30,000 | 16.7 | 25 | 32-1/8 x 31-3/16 x 31-3/16 (816 x 792 x 792) | 223 / 187 (101 / 85) |
| COMCSA636GKA | CSA636GKA | 3 | 36,000 | 18.2 | 30 | 30-1/16 x 35 x 35 (764 x 889 x 889) | 243 / 200 (110 / 91) |
| COMCSA642GKA | CSA642GKA | 3-1/2 | 42,000 | 23.4 | 40 | 40-1/4 x 35 x 35 (1023 x 889 x 889) | 297 / 253 (135 / 115) |
| COMC4A6S48AKAWA | C4A6S48AKAWA | 4 | 48,000 | 32.8 | 50 | 32-1/8 x 31-3/16 x 31-3/16 (815.6 x 792.5 x 792.5) | 225 / 204 (102.1 / 92.5) |
Mobile/tablet users scroll table sideways to view all columns.

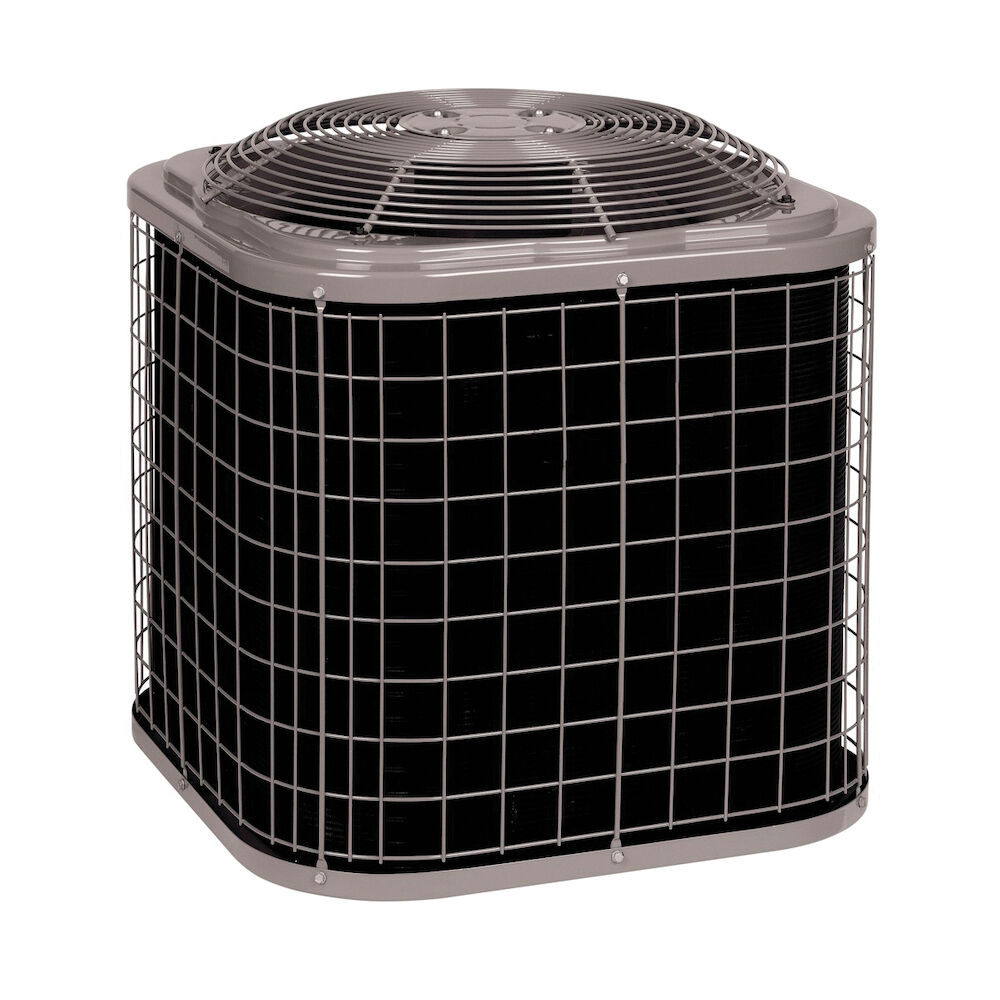

NXA6 Air Conditioner
HIGH EFFICIENCY 16 SEER AIR CONDITIONER ENVIRONMENTALLY BALANCED R-410A REFRIGERANT
1-1/2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- Copper tube/aluminum fin coil
EASY TO INSTALL AND SERVICE
- Easy access service valves on all models
- External high and low refrigerant service ports
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST
- Baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8" (10mm) spacing for extra protection (hail guard)
LIMITED WARRANTY*
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER NXA6 UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Ampacity |
Max. Fuse / Breaker |
Operating Dimensions height x width x depth in. (mm) |
Ship / Operating Weight lbs. (kg) |
|---|---|---|---|---|---|---|---|
| ICPNXA618GKA | NXA618GKA | 1-1/2 | 18,000 | 11.8 | 20 | 28-11/16 x 25-3/4 x 25-3/4 (729 x 654 x 654) | 154 / 125 (70 / 57) |
| ICPNXA624GKA | NXA624GKA | 2 | 24,000 | 17.7 | 30 | 28-5/16 x 31-3/16 x 31-3/16 (719 x 792 x 792) | 147 / 183 (83 / 67) |
| ICPNXA630GKA | NXA630GKA | 2-1/2 | 30,000 | 16.8 | 25 | 32-5/16 x 31-3/16 x 31-3/16 (821 x 792 x 792) | 188 / 153 (85 / 69) |
| ICPNXA636GKB | NXA636GKB | 3 | 36,000 | 17.5 | 30 | 28-5/16 x 35 x 35 (719 x 889 x 889) | 204 / 165 (93 / 75) |
| ICPNXA642GKA | NXA642GKA | 3-1/2 | 42,000 | 23.6 | 40 | 39-1/8 x 35 x 35 (994 x 889 x 889) | 254 / 213 (115 / 96) |
| ICPNXA648GKA | NXA648GKA | 4 | 48,000 | 26.1 | 40 | 39-1/8 x 35 x 35 (994 x 889 x 889) | 317 / 264 (144 / 120) |
| ICPNXA660GKB | NXA660GKB | 5 | 60,000 | 32.4 | 50 | 45-11/16 x 35 x 35 (1161 x 889 x 889) | 318 / 280 (144 / 127) |
Mobile/tablet users scroll table sideways to view all columns.

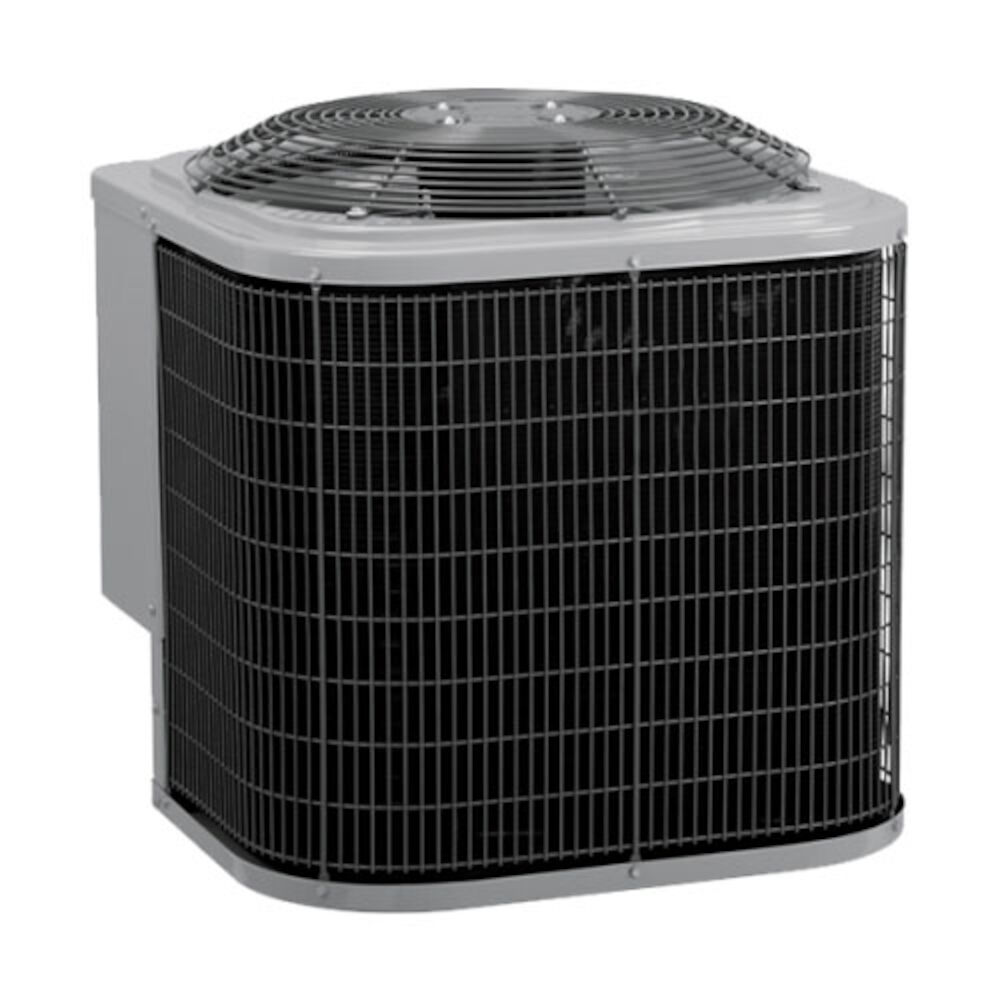

NEW! N4A5S Air Conditioner
HIGH EFFICIENCY 13.8 - 16.0 SEER2 AIR CONDITIONER ENVIRONMENTALLY BALANCED R-410A REFRIGERANT
1-1/2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- Copper tube/aluminum fin coil
EASY TO INSTALL AND SERVICE
- Easy access service valves on all models
- External high and low refrigerant service ports
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST
- Baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 3/8" (10mm) spacing for extra protection (hail guard)
LIMITED WARRANTY*
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER N4A5S UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Ampacity |
Max. Fuse / Breaker |
Dimensions height x width in. |
Weight lbs. |
|---|---|---|---|---|---|---|---|
| ICPN4A5S18AKAWA | N4A5S18AKAWA | 1-1/2 | 18,000 | 11.4 | 20 | 28-11/16 x 25-3/4 | 113 |
| ICPN4A5S24AKAWA | N4A5S24AKAWA | 2 | 24,000 | 12.2 | 20 | 35-1/2 x 25-3/4 | 123 |
| ICPN4A5S30AKAWA | N4A5S30AKAWA | 2-1/2 | 30,000 | 15.2 | 25 | 35-1/2 x 31-3/16 | 144 |
| ICPN4A5S36AKAWA | N4A5S36AKAWA | 3 | 36,000 | 16.7 | 25 | 38-7/8 x 31-3/16 | 151 |
| ICPN4A5S42AKAWA | N4A5S42AKAWA | 3-1/2 | 42,000 | 32.8 | 50 | 32-1/16 x 31-3/16 | 182 |
| ICPN4A5S48AKAWA | N4A5S48AKAWA | 4 | 48,000 | 32.8 | 50 | 32-1/16 x 31-3/16 | 182 |
| ICPN4A5S60AKAWA | N4A5S60AKAWA | 5 | 60,000 | 33.4 | 50 | 38-7/8 x 31-3/16 | 196 |
Mobile/tablet users scroll table sideways to view all columns.

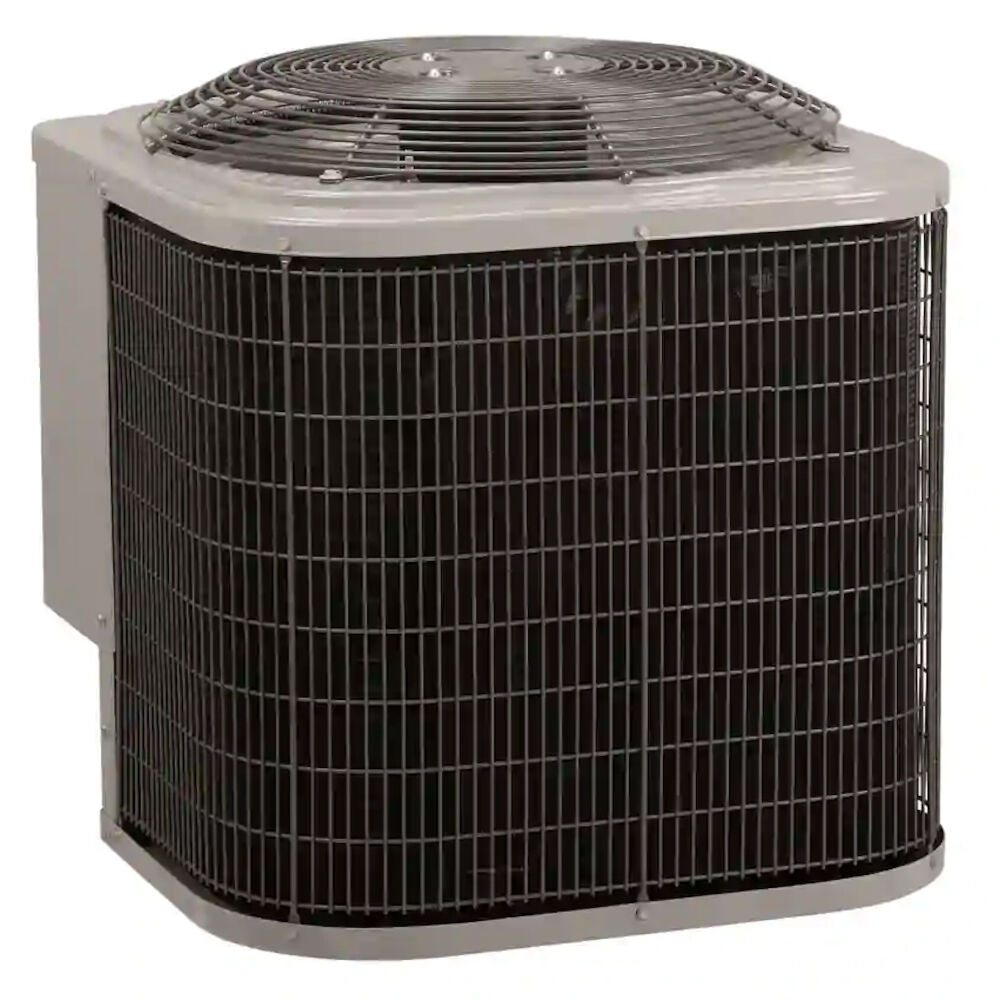

N4A3 Air Conditioner
EFFICIENT 13 SEER AIR CONDITIONER ENVIRONMENTALLY BALANCED R-410A REFRIGERANT
1-1/2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- Copper tube/aluminum fin coil
EASY TO INSTALL AND SERVICE
- Easy access service valves on all models
- External high and low refrigerant service ports
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST
- Baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 2" (51mm) spacing standard, alternate models available with 3/8" (10mm) spacing for extra protection (hail guard)
LIMITED WARRANTY*
- 5 year compressor limited warranty
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER N4A3 UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Ampacity |
Max. Fuse or Breaker |
Operating Dimensions height x width/depth in. (mm) |
Ship / Operating Weight lbs. (kg) |
|---|---|---|---|---|---|---|---|
| ICPN4A318AKF | N4A318AKF | 1-1/2 | 18,000 | 11.8 | 20 | 25-5/16 x 23-1/8 (643 x 587) | 130 / 107 (59 / 49) |
| ICPN4A324AKG | N4A324AKG | 2 | 24,000 | 14.3 | 25 | 25-5/16 x 23-1/8 (643 x 587) | 127 / 107 (58 / 49) |
| ICPN4A336AKF | N4A336AKF | 3 | 36,000 | 18.1 | 30 | 25-5/16 x 31-3/16 (642 x 792) | 151 / 134 (68 / 61) |
| ICPN4A342AKN | N4A342AKN | 3-1/2 | 42,000 | 23.5 | 40 | 32-5/16 x 31-3/16 (821 x 792) | 218 / 190 (99 / 86) |
| ICPN4A348AKG | N4A348AKG | 4 | 48,000 | 24.3 | 40 | 35-1/2 x 31-3/16 (901 x 792) | 205 / 175 (93 / 79) |
| ICPN4A360AKN | N4A360AKN | 5 | 60,000 | 29.0 | 50 | 28-11/16 x 31-3/16 (729 x 792) | 232 / 199 (106 / 91) |
Mobile/tablet users scroll table sideways to view all columns.

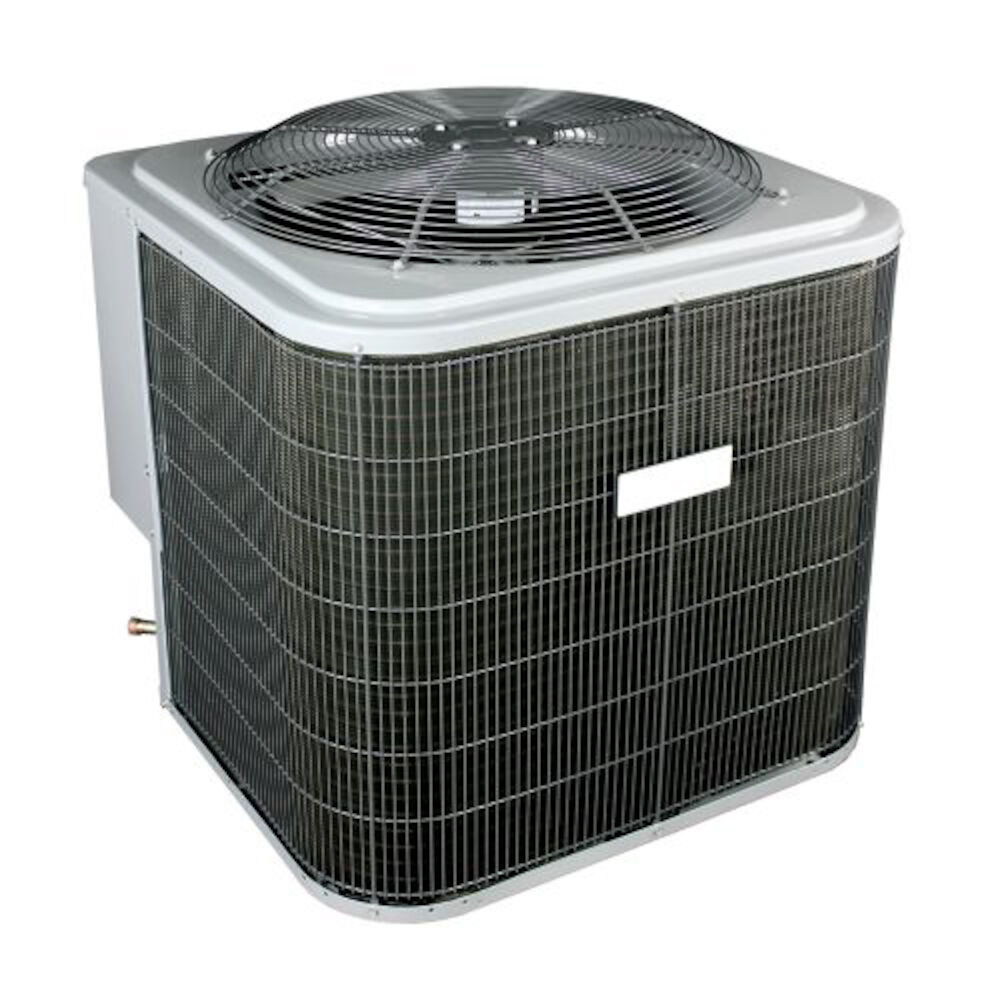

NEW! N4A4S Air Conditioner
EFFICIENT 13.4 - 16.0 SEER2 AIR CONDITIONER ENVIRONMENTALLY BALANCED R-410A REFRIGERANT
1-1/2 THRU 5 TONS SPLIT SYSTEM
208 / 230 Volt, 1-phase, 60 Hz
REFRIGERATION CIRCUIT
- Scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- Copper tube/aluminum fin coil
EASY TO INSTALL AND SERVICE
- Easy access service valves on all models
- External high and low refrigerant service ports
- Only two screws to access control panel
- Factory charged with R-410A refrigerant
BUILT TO LAST
- Baked-on powder coat finish over galvanized steel
- Post-painted (black) coil fins
- Coated, weather-resistant cabinet screws
- Coated inlet grille with 2" (51mm) spacing standard, alternate models available with 3/8" (10mm) spacing for extra protection (hail guard)
LIMITED WARRANTY*
- 5 year compressor limited warranty
- 5 year parts limited warranty (including compressor and coil) - With timely registration, an additional 5 year parts limited warranty (including compressor and coil)
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER N4A4S UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) |
Nominal Btu/hr |
Min. Circuit Ampacity |
Max. Fuse or Breaker |
Dimensions height x depth x width in. |
Weight lbs. |
|---|---|---|---|---|---|---|---|
| ICPN4A4S18AKANA | N4A4S18AKANA | 1-1/2 | 18,000 | 10.4 | 15 | 25-5/16 x 23-1/8 x 23-1/8 | 100 |
| ICPN4A4S24AKANA | N4A4S24AKANA | 2 | 24,000 | 15.1 | 25 | 25-5/16 x 25-3/4 x 25-3/4 | 111 |
| ICPN4A4S30AKANA | N4A4S30AKANA | 2-1/2 | 30,000 | 15.6 | 25 | 32-1/16 x 31-3/16 x 31-3/16 | 139 |
| ICPN4A4S36AKANA | N4A4S36AKANA | 3 | 36,000 | 16.4 | 25 | 25-5/16 x 31-3/16 x 31-3/16 | 132 |
| ICPN4A4S42AKANA | N4A4S42AKANA | 3-1/2 | 42,000 | 23.5 | 40 | 42-5/16 x 31-3/16 x 31-3/16 | 181 |
| ICPN4A4S48AKANA | N4A4S48AKANA | 4 | 48,000 | 24.5 | 40 | 28-11/16 x 31-3/16 x 31-3/16 | 171 |
| ICPN4A4S60AKANA | N4A4S60AKANA | 5 | 60,000 | 33.5 | 50 | 35-1/2 x 31-3/16 x 31-3/16 | 190 |
Mobile/tablet users scroll table sideways to view all columns.
Coils

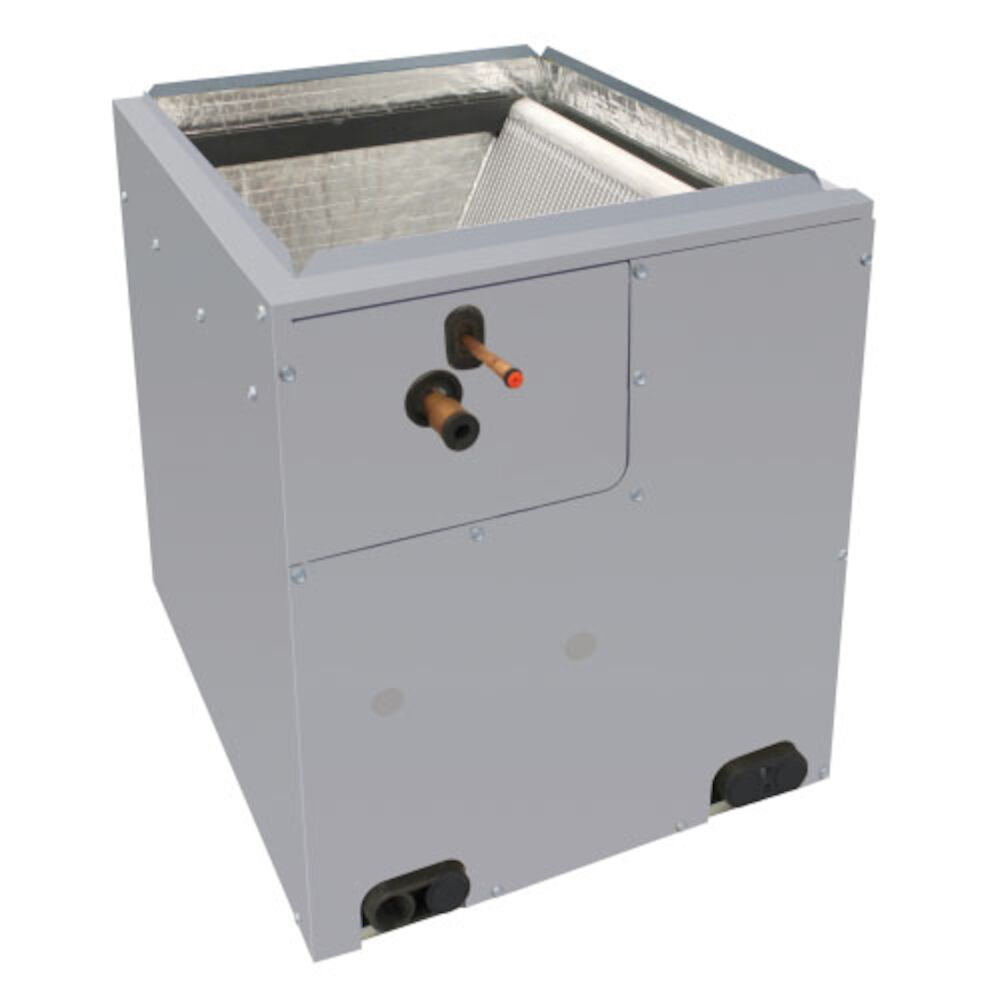

NEW! EVD4X
EVAPORATOR COIL WITH POWER-V TECHNOLOGY, UPFLOW/DOWNFLOW
1-1/2 THRU 5 TONS
FEATURES
- Cased V coil design for efficient heat transfer in a compact size
- Efficiency-optimizing Thermostatic Expansion Valve metering device
- Corrosion-resistant all-aluminum coil
- Fully insulated cabinet
- Corrosion-resistant drain pan drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength
COMFORTMAKER EVD4X UNIT PERFORMANCE DATA
| Item # | Model # | Nominal Capacity | Dimensions |
|---|---|---|---|
| ICPEVD4X30M17A | EVD4X30M17A | 2.5 ton | 19-7/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X18M14A | EVD4X18M14A | 1.5 ton | 14-11/16 in H x 20-5/8 in D x 14-3/16 W |
| ICPEVD4X19M17A | EVD4X19M17A | 1.5 ton | 19-7/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X24M14A | EVD4X24M14A | 2 ton | 14-11/16 in H x 20-5/8 in D x 14-3/16 in W |
| ICPEVD4X24M17A | EVD4X24M17A | 2 ton | 14-11/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X25M17A | EVD4X25M17A | 2 ton | 19-7/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X30M14A | EVD4X30M14A | 2.5 ton | 17-1/16 in H x 20-5/8 in D x 14-3/16 in W |
| ICPEVD4X31M17A | EVD4X31M17A | 2.5 ton | 25-13/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X36M17A | EVD4X36M17A | 3 ton | 19-7/16 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X36M21A | EVD4X36M21A | 3 ton | 19-1/16 in H x 20-5/8 in D x 21 in W |
| ICPEVD4X37M21A | EVD4X37M21A | 3 ton | 21-15/16 H in x 20-5/8 D in x 21 in W |
| ICPEVD4X38M17A | EVD4X38M17A | 3 ton | 29-3/4 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X42M17A | EVD4X42M17A | 3.5 ton | 19-1/4 in H x 20-5/8 in D x 17-1/2 in W |
| ICPEVD4X42M21A | EVD4X42M21A | 3.5 ton | 19-1/16 in H x 20-5/8 in D x 21 in W |
| ICPEVD4X42M24A | EVD4X42M24A | 3.5 ton | 26-5/16 in H x 20-5/8 in D x 24-1/2 in W |
| ICPEVD4X48M21A | EVD4X48M21A | 4 ton | 21-15/16 in H x 20-5/8 in D x 21 in W |
| ICPEVD4X48M24A | EVD4X48M24A | 4 ton | 22-1/16 in H x 20-5/8 in D x 24-1/2 in W |
| ICPEVD4X49M24A | EVD4X49M24A | 4 ton | 26-5/16 in H x 20-5/8 in D x 24-1/2 in W |
| ICPEVD4X60M24A | EVD4X60M24A | 5 ton | 26-5/16 in H x 20-5/8 in D x 24-1/2 in W |
| ICPEVD4X61M24A | EVD4X61M24A | 5 ton | 35 in H x 20-5/8 in D x 24-1/2 in W |
Mobile/tablet users scroll table sideways to view all columns.

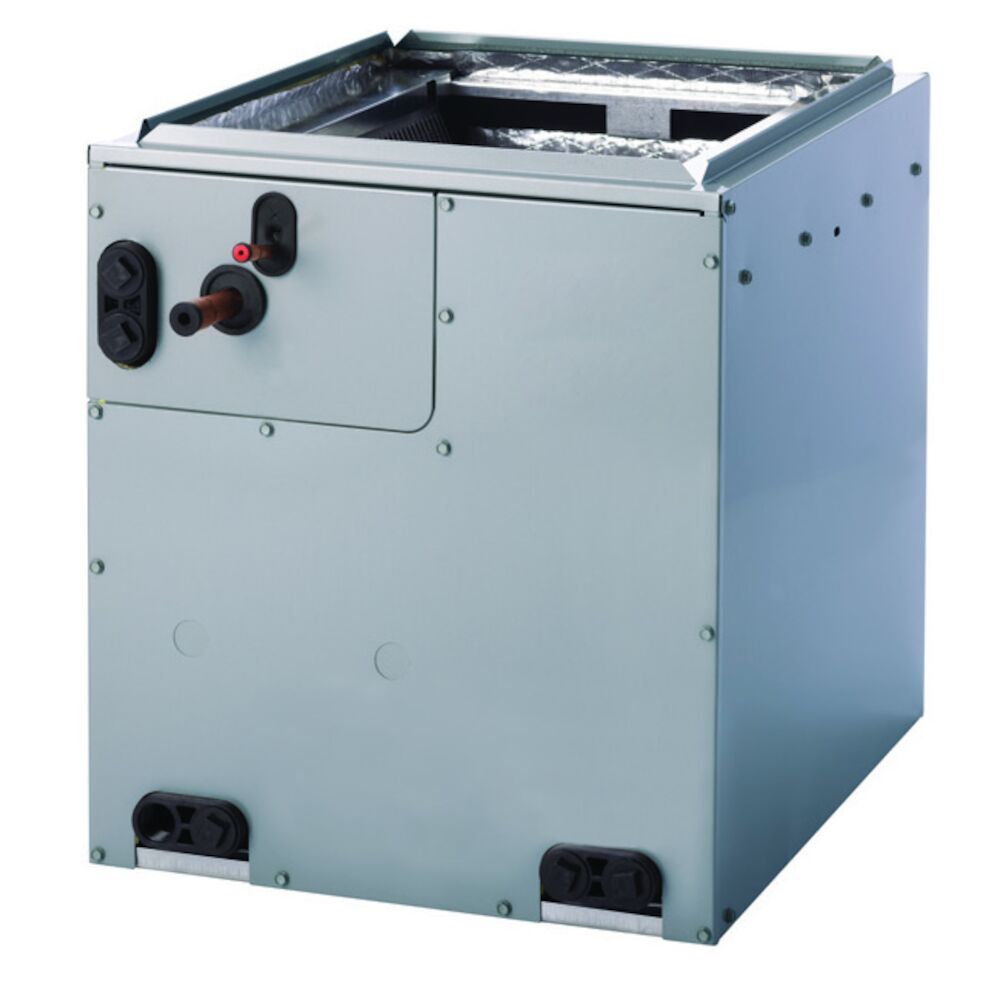

NEW! EVM4X
EVAPORATOR COIL WITH POWER-V TECHNOLOGY, MULTIPOISE
2 THRU 5 TONS
FEATURES
- Cased V coil design for efficient heat transfer in a compact size
- Efficiency-optimizing Thermostatic Expansion Valve metering device
- Corrosion-resistant all-aluminum coil
- Fully insulated cabinet
- Corrosion-resistant drain pan drain pan is designed in a Polybutylene Terephthalate (PBT) material that offers unsurpassed pan strength
COMFORTMAKER EVM4X UNIT PERFORMANCE DATA
| Item # | Model # | Nominal Capacity | Dimensions |
|---|---|---|---|
| ICPEVM4X24M17A | EVM4X24M17A | 2 ton | 17-1/2 in W x 20-5/8 in D x 14-11/16 in H |
| ICPEVM4X30M17A | EVM4X30M17A | 2.5 ton | 17-1/2 in W x 20-5/8 in D x 19-7/16 in H |
| ICPEVM4X31M17A | EVM4X31M17A | 2.5 ton | 17-1/2 in W x 20-5/8 in D x 25-13/16 in H |
| ICPEVM4X36M17A | EVM4X36M17A | 3 ton | 17-1/2 in W x 20-5/8 in D x 19-7/16 in H |
| ICPEVM4X42M21A | EVM4X42M21A | 3.5 ton | 21 in W x 20-5/8 in D x 19-1/16 in H |
| ICPEVM4X43M21A | EVM4X43M21A | 3.5 ton | 21 in W x 20-5/8 in D x 21-15/16 in H |
| ICPEVM4X48M21A | EVM4X48M21A | 4 ton | 21 in W x 20-5/8 in D x 21-15/16 in H |
| ICPEVM4X60M24A | EVM4X60M24A | 5 ton | 24-1/2 in W x 20-5/8 in D x 26-15/16 in H |
| ICPEVM4X61M24A | EVM4X61M24A | 5 ton | 24-1/2 in W x 20-5/8 in D x 35 in H |
Mobile/tablet users scroll table sideways to view all columns.

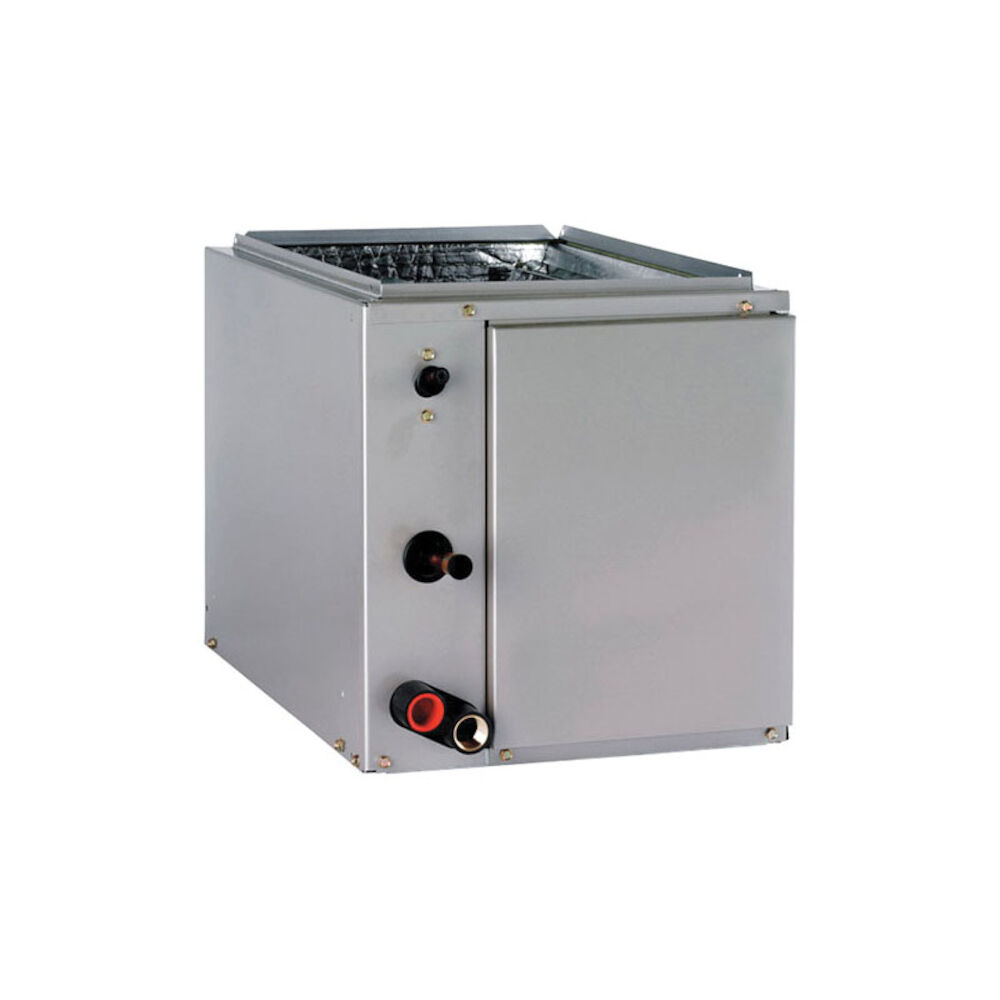

END4X
VERTICAL EVAPORATOR COILS - CASED N-COILS
1-1/2 THRU 5 TONS
ENVIRONMENTALLY BALANCED R-410A SYSTEMS
- Bolt-on TXV metering device factory installed on all models (equalizer tube brazed in)
- Two condensate drain connections
- Cabinet widths match flush with ICP 14-3/16", 17-1/2", 21" and 24-1/2" gas furnace cabinets (field fabricated transitions required to match other ICP furnace models)
- Removable front access panel
- Hemmed flanges for safer handling
- Foil faced insulation
- Non-sweat cabinet, even at extreme conditions
- Cabinets meet or exceed 2% air leakage codes
- Sturdy, pre-painted steel cabinet
- Upflow or downflow installation (cased use only)
- Compact design
- Aluminum main tubing and aluminum fins (copper stubs for field connection)
LIMITED WARRANTY*
- 5 year parts limited warranty - With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER END4X UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) | Dimensions H x W x D inches (mm) |
|---|---|---|---|
| ICPEND4X18L14A | END4X18L14A | 1-1/2 | 12-5/8 x 14-3/16 x 21 (321 x 360 x 533) |
| ICPEND4X19L17A | END4X19L17A | 1-1/2 | 17 x 17-1/2 x 21 (432 x 445 x 533) |
| ICPEND4X24L14A | END4X24L14A | 2 | 14-5/8 x 14-3/16 x 21 (372 x 360 x 533) |
| ICPEND4X24L17A | END4X24L17A | 2 | 14-5/8 x 17-1/2 x 21 (372 x 445 x 533) |
| ICPEND4X30L14A | END4X30L14A | 2-1/2 | 17 x 14-3/16 x 21 (432 x 360 x 533) |
| ICPEND4X30L17A | END4X30L17A | 2-1/2 | 17 x 17-1/2 x 21 (432 x 445 x 533) |
| ICPEND4X31L17A | END4X31L17A | 2-1/2 | 23-1/4 x 17-1/2 x 21 (591 x 445 x 533) |
| ICPEND4X36L17A | END4X36L17A | 3 | 17 x 17-1/2 x 21 (432 x 445 x 533) |
| ICPEND4X36L21A | END4X36L21A | 3 | 17 x 21 x 21 (432 x 533 x 533) |
| ICPEND4X37L17A | END4X37L17A | 3 | 27-3/16 x 17-1/2 x 21 (691 x 445 x 533) |
| ICPEND4X42L17A | END4X42L17A | 3-1/2 | 21-1/8 x 17-1/2 x 21 (537 x 445 x 533) |
| ICPEND4X42L21A | END4X42L21A | 3-1/2 | 19 x 21 x 21 (483 x 533 x 533) |
| ICPEND4X43L24A | END4X43L24A | 3-1/2 | 26-5/16 x 24-1/2 x 21 (669 x 622 x 533) |
| ICPEND4X48L21A | END4X48L21A | 4 | 22-1/16 x 21 x 21 (560 x 533 x 533) |
| ICPEND4X48L24A | END4X48L24A | 4 | 22-1/16 x 24-1/2 x 21 (560 x 622 x 533) |
| ICPEND4X60L24A | END4X60L24A | 5 | 26-7/8 x 24-1/2 x 21 (683 x 622 x 533) |
| ICPEND4X61L24A | END4X61L24A | 5 | 32-7/16 x 24-1/2 x 21 (824 x 622 x 533) |
Mobile/tablet users scroll table sideways to view all columns.

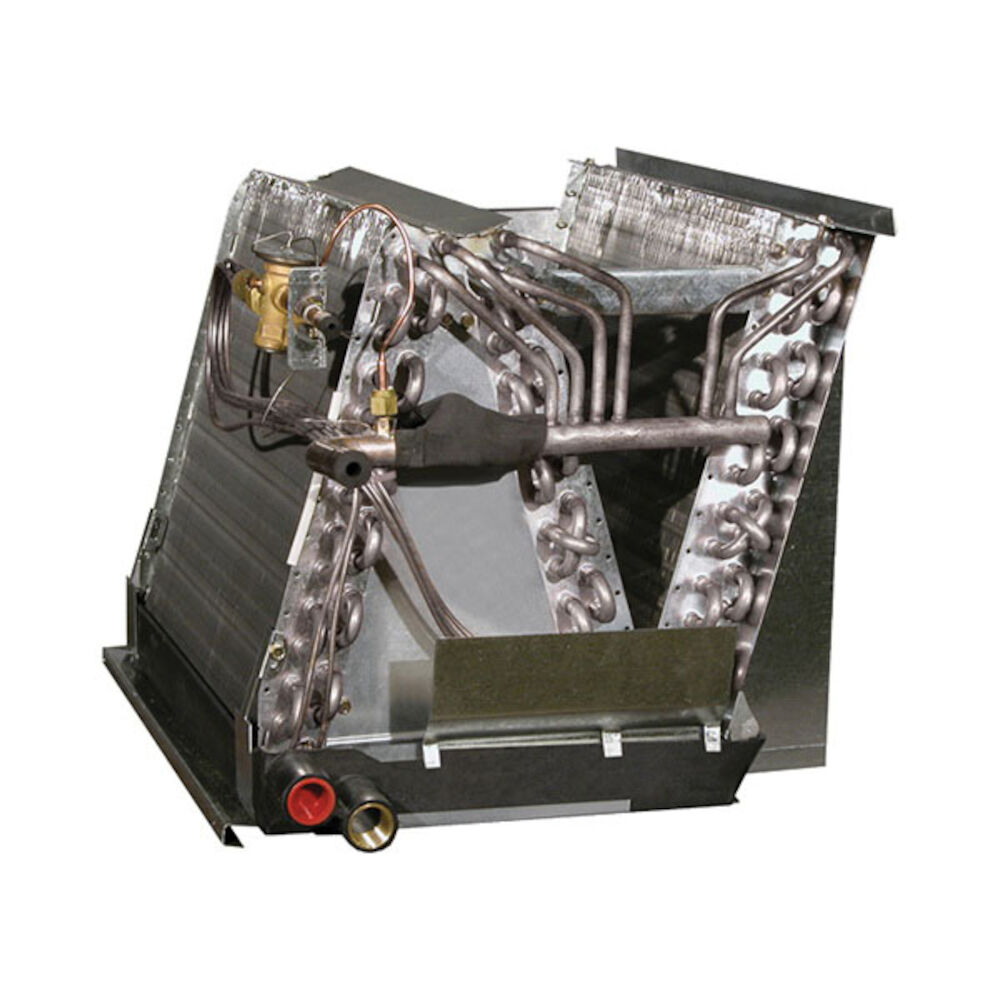

ENA4X
VERTICAL EVAPORATOR COILS - UNCASED N-COILS
1-1/2 THRU 5 TONS
ENVIRONMENTALLY BALANCED R-410A SYSTEMS
- Bolt-on TXV metering device factory installed on all models (equalizer tube brazed in)
- Two condensate drain connections
- Upflow or downflow installation (plenum use only)
- Aluminum main tubing and aluminum fins (copper stubs for field connection)
LIMITED WARRANTY*
- 5 year parts limited warranty - With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
COMFORTMAKER ENA4X UNIT PERFORMANCE DATA
| Item # | Model # | Size (tons) | Dimensions H x W x D inches (mm) |
|---|---|---|---|
| ICPENA4X18L14A | ENA4X18L14A | 1-1/2 | 10-7/8 x 12-7/8 x 19-3/8 (276 x 327 x 492) |
| ICPENA4X19L17A | ENA4X19L17A | 1-1/2 | 14-11/16 x 16-1/4 x 19-3/8 (373 x 413 x 492) |
| ICPENA4X24L14A | ENA4X24L14A | 2 | 12-7/8 x 12-7/8 x 19-3/8 (327 x 327 x 492) |
| ICPENA4X24L17A | ENA4X24L17A | 2 | 12-11/16 x 16-1/4 x 19-3/8 (322 x 413 x 492) |
| ICPENA4X30L14A | ENA4X30L14A | 2-1/2 | 14-7/8 x 12-7/8 x 19-3/8 (378 x 327 x 492) |
| ICPENA4X30L17A | ENA4X30L17A | 2-1/2 | 14-11/16 x 16-1/4 x 19-3/8 (373 x 413 x 492) |
| ICPENA4X31L17A | ENA4X31L17A | 2-1/2 | 20-3/4 x 16-1/4 x 19-3/8 (527 x 413 x 492) |
| ICPENA4X36L17A | ENA4X36L17A | 3 | 14-11/16 x 16-1/4 x 19-3/8 (373 x 413 x 492) |
| ICPENA4X36L21A | ENA4X36L21A | 3 | 14-7/16 x 19-5/8 x 19-3/8 (367 x 499 x 492) |
| ICPENA4X37L17A | ENA4X37L17A | 3 | 24-3/4 x 16-1/4 x 19-3/8 (629 x 413 x 492) |
| ICPENA4X42L21A | ENA4X42L21A | 3-1/2 | 16-1/2 x 19-5/8 x 19-3/8 (419 x 499 x 492) |
| ICPENA4X43L24A | ENA4X43L24A | 3-1/2 | 24-3/8 x 23-1/8 x 19-3/8 (619 x 587 x 492) |
| ICPENA4X48L21A | ENA4X48L21A | 4 | 20-9/16 x 19-5/8 x 19-3/8 (522 x 499 x 492) |
| ICPENA4X48L24A | ENA4X48L24A | 4 | 20-5/16 x 23-1/8 x 19-3/8 (516 x 587 x 492) |
| ICPENA4X60L24A | ENA4X60L24A | 5 | 24-3/8 x 23-1/8 x 19-3/8 (619 x 587 x 492) |
| ICPENA4X61L24A | ENA4X61L24A | 5 | 30-1/2 x 23-1/8 x 19-3/8 (774 x 587 x 492) |
Mobile/tablet users scroll table sideways to view all columns.
Accessories

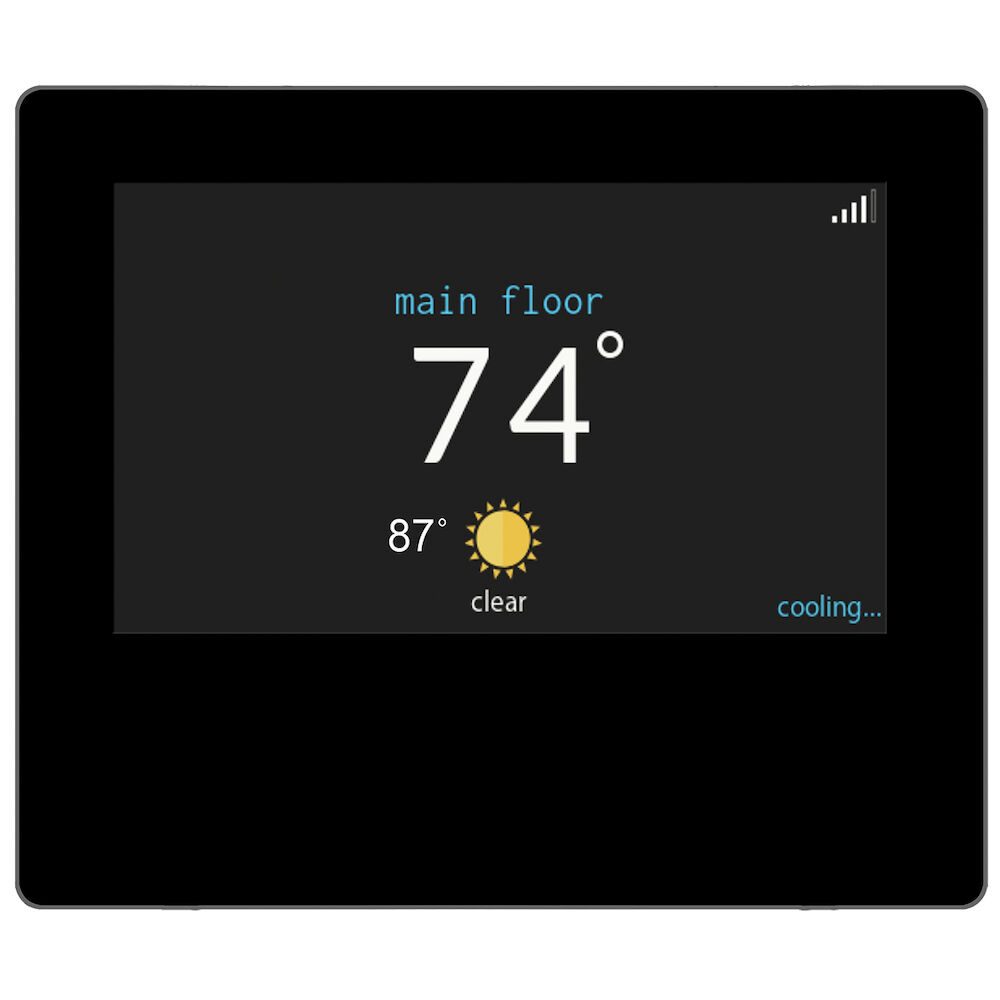

SYST0101CW Ion™ System Control
The Ion™ System Control is the ultimate control center for all of your system components. When you add an Ion™ System Control to a compatible variable-speed furnace, fan coil, split system, or Ion™ System compatible geothermal product (when available), you will enjoy longer heating and cooling cycles at lower fan speeds for a more consistent temperature throughout your home. By adding a multi-staged, or 2-stage outdoor unit, you will enjoy extra benefits which include better humidity and temperature control, as well as a more energy-efficient comfort system. When paired with Ion™ Zoning, the Ion™ System Control allows you to create up to eight zones of customized comfort.
The Ion™ Zoning system does not require a bypass damper, leaving air temperature (LAT) sensor, or field-installed power transformer.
FEATURES
- 2-wire connection to Ion™ System two or more stage outdoor equipment
- 4-wire installation from each major component in the system
- Advanced humidity control settings are the default; no longer requiring increased system setup
- Complete integration of the temperature, humidity, and ventilation (when available) in every season
- Auto mode selection to satisfy simultaneous heating and cooling demands via more aggressive Auto Changeover algorithm – installer must enable
- 7-day programmability with Lifestyle Comfort Profiles and activity features; complies with California Title 24 programmability requirements
- Upload photo, dealer info, and software updates locally via MicroSD card. Software updates available automatically when connected to the icpusa.com web server
- Compatible with Ion™ System geothermal products (when available). Energy Tracking feature for geothermal systems is available with Entering Water Temperature sensor installed in heat pump.
- Compatible with home automation systems via Amazon™ Alexa™ control
- Day-at-a-glance programming for simplified ease of use
- Ion™ Zoning System compatibility LIMITED WARRANTY*
- Dirty Filter Detection
- 10 year parts, for the control, to original purchaser upon
- Programmable fan by period timely registration, otherwise 5 years
- Wi-Fi® remote access capability
- 2 year parts for the wireless access point to original
LIMITED WARRANTY*
- 10 year parts, for the control, to original purchaser upon timely registration, otherwise 5 years
- 2 year parts for the wireless access point to original purchaser only
NOTE: The Ion™ Zoning System IS NOT compatible with all ICP communicating indoor equipment. For example, (F,G)9MV and (F,G)8MV two-stage, communicating gas furnaces are NOT compatible with the Ion™ Zoning System. See the Ion™ System Control product data for more information.
NOTE: Only use modulating dampers provided by ICP for use with the Ion™ Zoning System. Dampers provided by other companies are NOT compatible with the Ion™ Zoning System.
COMFORTMAKER SYST0101CW ION™ SYSTEM CONTROL
| Item # | Model # | Description |
|---|---|---|
| ICPSYST0101CW | SYST0101CW | Ion™ System Control (Wi-Fi®) |
Mobile/tablet users scroll table sideways to view all columns.
All trademarks are the property of their respective owners. Wi-Fi® is a trademark of Wi-Fi Alliance Corporation.
